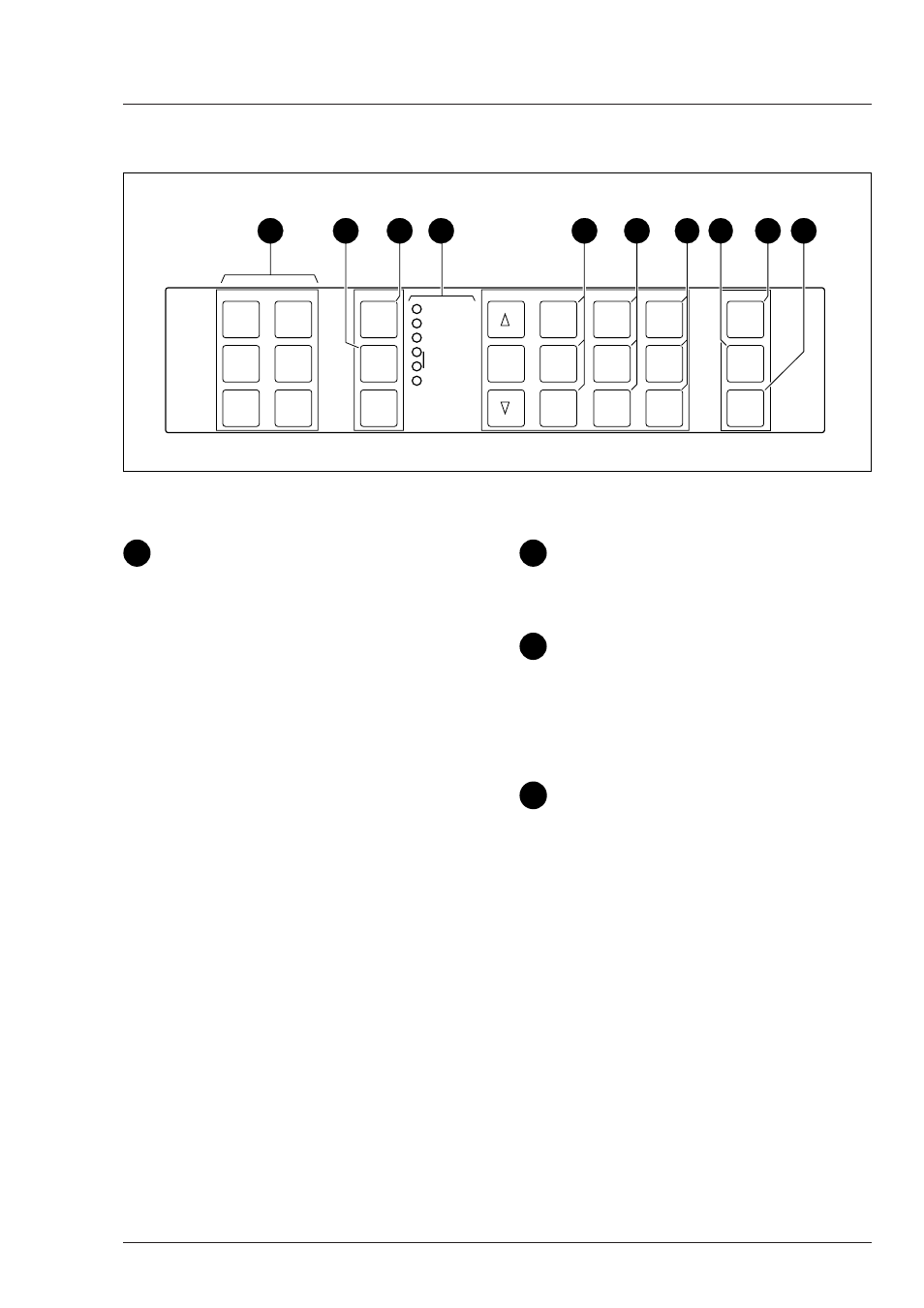

02.38.3 User's Guide LDK 4482 - SuperXpander 1-3
7 Viewfinder EXT1, EXT2 and
Y switches
Switches the Ext 1 and Ext 2 signal for display in the
viewfinder. Ext 1 and Ext 2 are also selectable with
the pan-bar switches.
Y/ext on switches a mix of Y and Ext 1 or Ext 2 signal
for display in the viewfinder.
Y/ext off switches only Ext 1 or Ext 2 signal for display
in the viewfinder.
If no switch is selected the previous signal is displayed
(R, G, B, Y or Y+c).
The Y or Y+c (contours added) signal is selected in
the Vf/Lens \ Vf Inst \ Vf mon menu on the camera.
Note: Viewfinder and External selection switches on
the camera are disabled.
8 Dim
Switches the brightness of the on-air lamp on the
viewfinder up and down in steps.
9 On air lamp switch
If function On air is on you can switch the on air lamp
on the lens and 7-inch viewfinder on and off.
Note:
For function On air see Installation Manual Base
Station.
10 Call switch
Pressing this switch sends a signal to the control
panels calling for attention. An incoming call activates
the LED in the switch.
