1-12 User's Guide LDK 4482 - SuperXpander 02.38.3
5
6
12
10
1
2
3
4
7
8
9
11

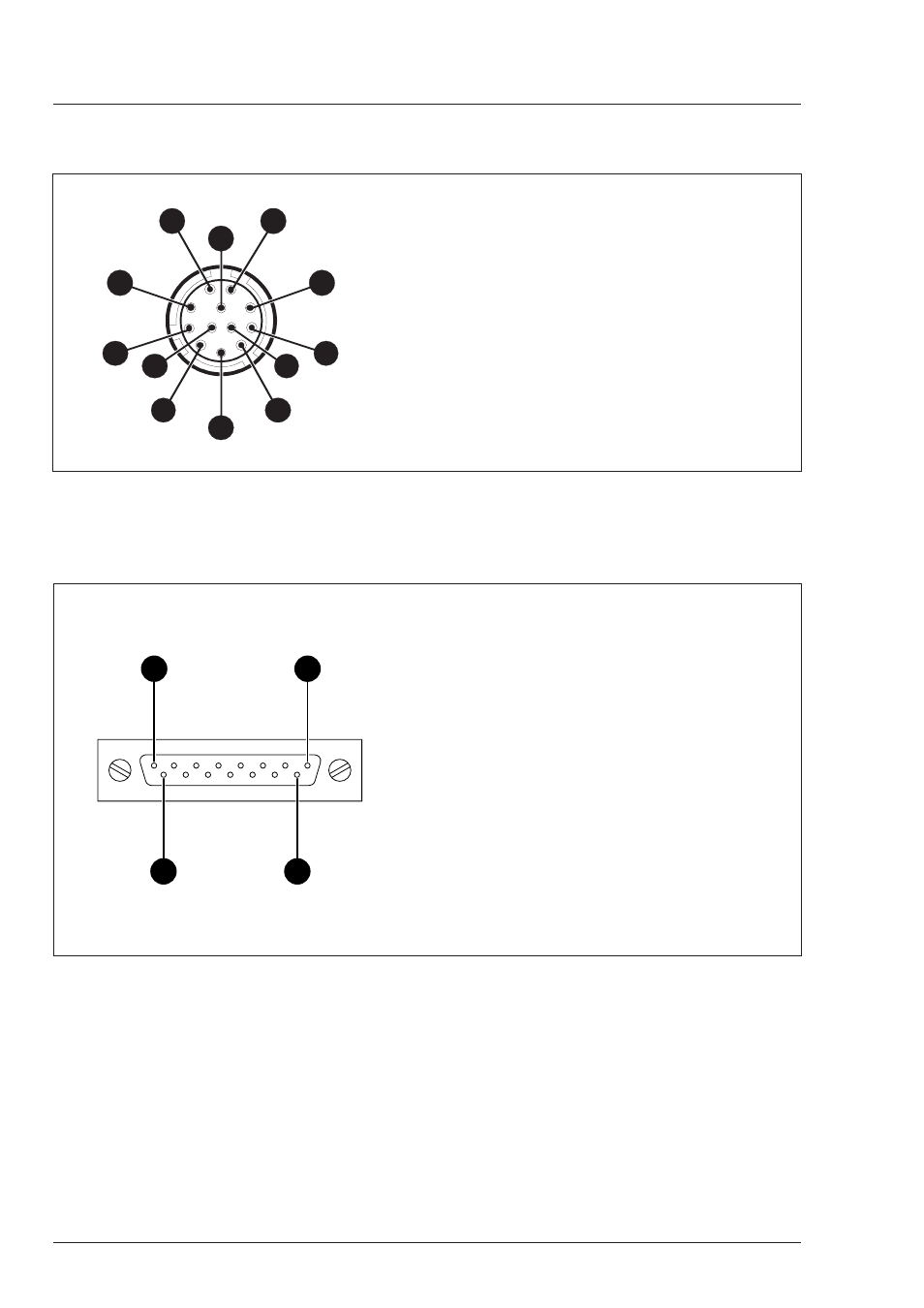

Lens Flying Lead Connector (X611)
12-pin male
1. no connection
2. no connection
3. GND (power ret.)
4. no connection
5. Iris control
6. no connection
7. Iris follow
8. Iris auto/remote
9. no connection
10.Zoom follow
11.Focus follow
12.Spare
Shield of cable directly to the connector housing.
Top Viewfinder Connector (X605)
15-pin female
1. VF video
2. CVBS/Ext. Video
3. no connection
4. GND (+12V return)
5. Housing
6. +12V
7. SDL
8. no connection
9. VF video return
10. CVBS/Ext. Video return
11. +12v
12. GND (+12V return)
13. Housing
14. On-air lamp
15. SDA
Shield of cable directly to the connector housing.
15 9
1 8
