02.38.3 User's Guide LDK 4482 - SuperXpander 1-9
Cable Clamp
When the lens and camera are mounted on the large
lens adapter it is necessary to clamp the camera
cable. Proceed as follows:
a. Loosen the cable clamp on the right side of the
footbed by turning it counterclockwise.
b. Put the cable into the clamp.
c. Tighten the cable clamp by turning it clockwise.
Mounting the Viewfinder
To mount the viewfinder on top of the large lens
adapter proceed as follows:
a. Slide the viewfinder along the rails on top of the
camera until it can go no further.
b. Push both locking levers inwards and slide the
viewfinder until it firmly engages the connector.
c. Release the locking levers and ensure they click
into the lock position.
d. Loosen the viewfinder mount retaining knob on top
of the large lens adapter.
e. Slide the viewfinder mount along the rails until it is
in the desired position.
f. Tighten the viewfinder retaining knob on top of the
large lens adapter.

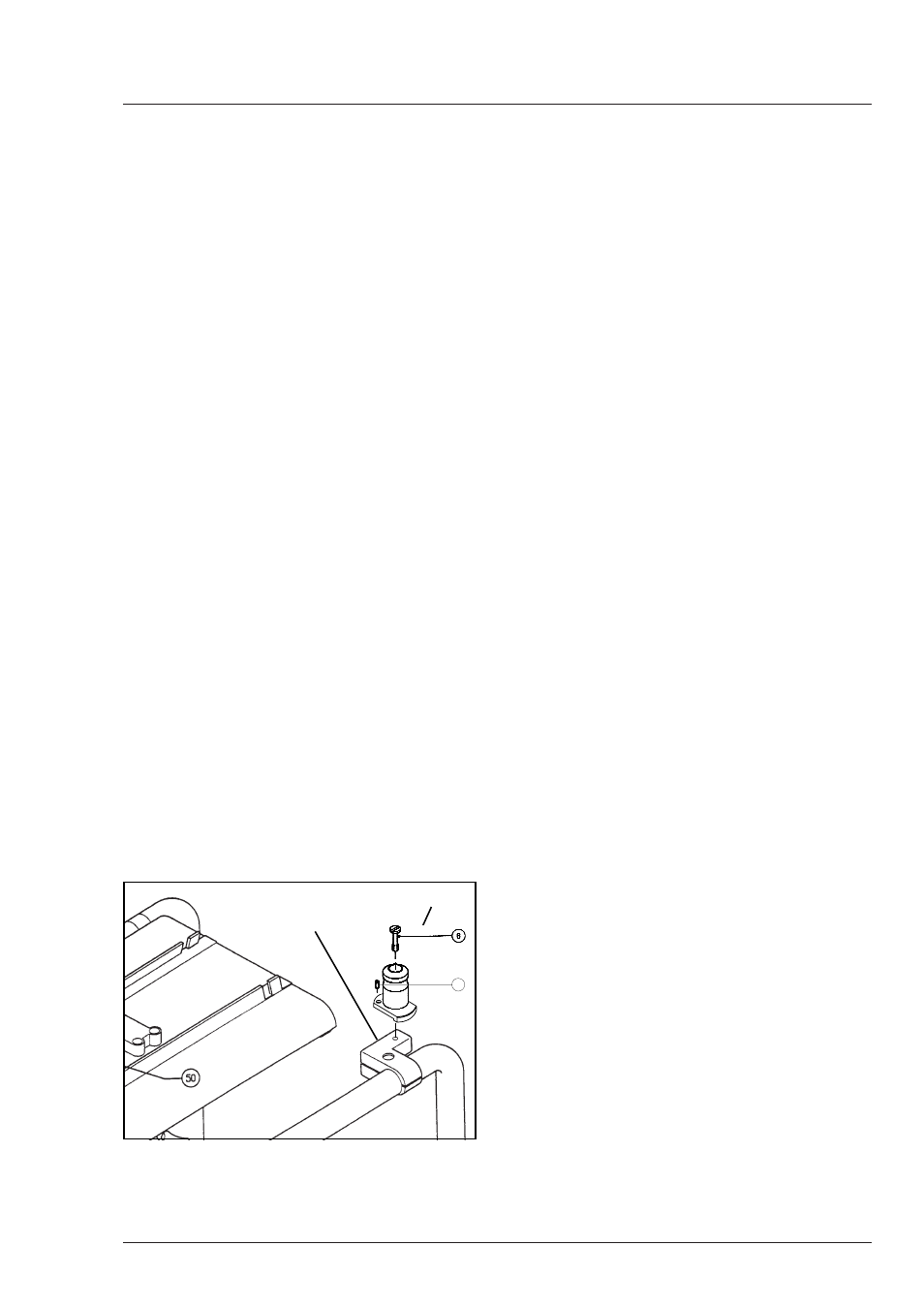

Mounting the Scriptboard
To mount the scriptboard onto the large lens adapter,
proceed as follows:
a. Mount the separately delivered scriptboard quick
mounting pin to the scriptboard clamp of the large
lens adapter. Tighten with screw 6 and secure with
screw 738. The scriptboard clamp can be mounted
on the right as well as on the left side of the large
lens adapter. The scriptboard quick mounting pin
can also be mounted on top of the camera.
b. Click the scriptboard over the quick mounting pin.
Rain and Off-use Cover
The rain and off-use cover LDK6989/00 must be used
when the camera system is in wet or damp environment.
This protection is necessary for personal safety
reasons. The cover can also be used in dusty
environments. It can also be useful if the camera is
being put into storage.
Dimensions
The dimensions of the large lens adapter are:
Length: 600 mm
Width: 350 mm
Height: 390 mm
The weight of the large lens adapter does not exceed
17 Kg (excluding lens, camera and 7-inch viewfinder
but including wedge plate).
Quick mounting pin
Scriptboard clamp
736
