Connections
Connector Signals
Utility Outlet Connector (X602)
Script Light Connector (X604)

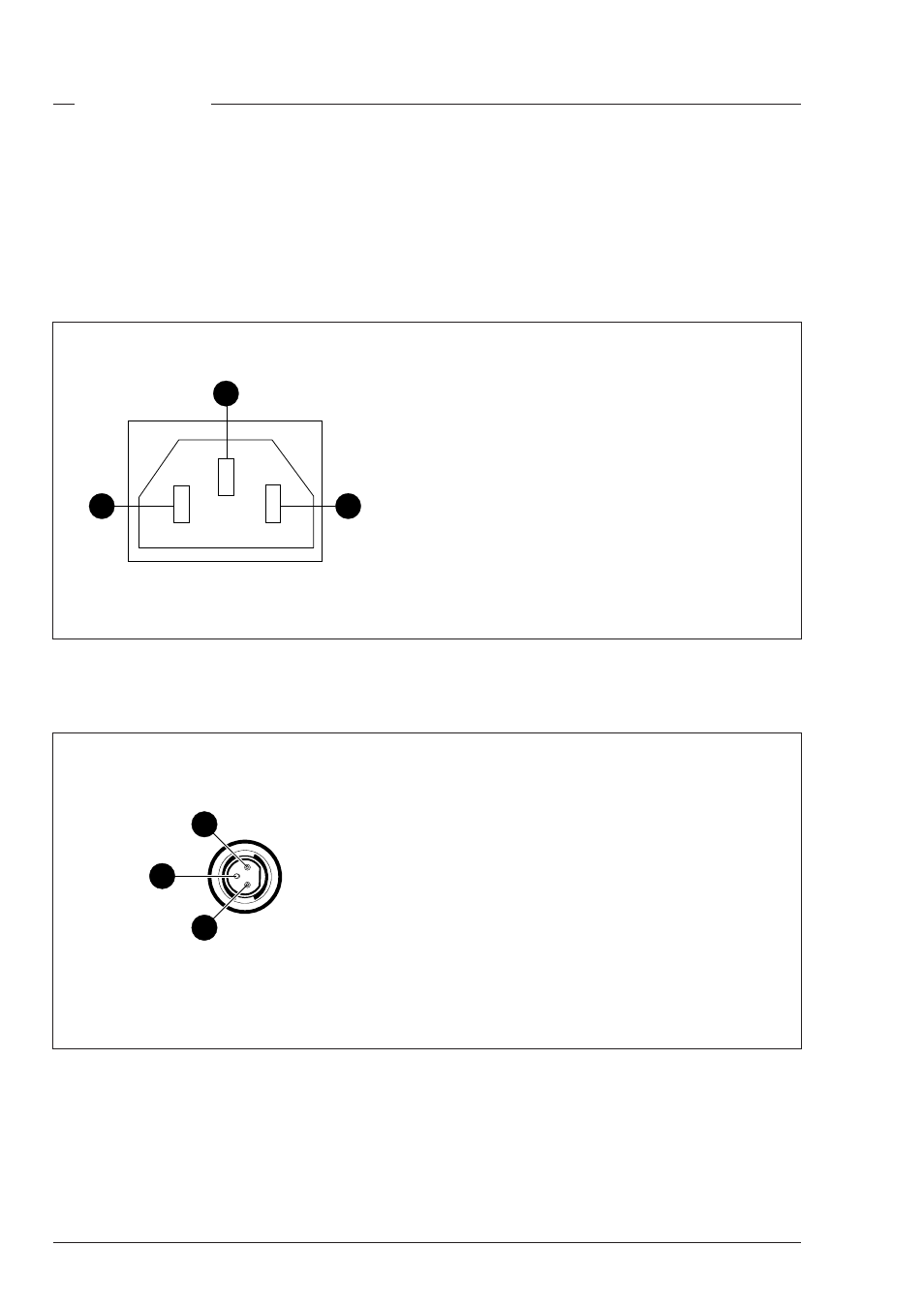

In each of the following figures the connectors are
shown as seen on the panels of the camera. Remember
to use the mirror image of the drawings to identify the pins on the solder side of the connector. The part
numbers of the panel connectors can be found in the
spare parts lists of the service manual.
3
2 1
Eurostyle 3-pin female
1. Neutral
2. Line
3. Earth
Voltage:
115/230 Vac
Maximum power: 70 VA
3-pin female
1. +12V (500mA)
2. GND (+12V return)
3. Housing
Shield of cable directly to the connector housing.
2
3
1
