2.26 – Connecting External Devices
Connecting external devices to the motherboard is an easy task. The standard
devices you should expect to plug into the motherboard are keyboards, mice, and

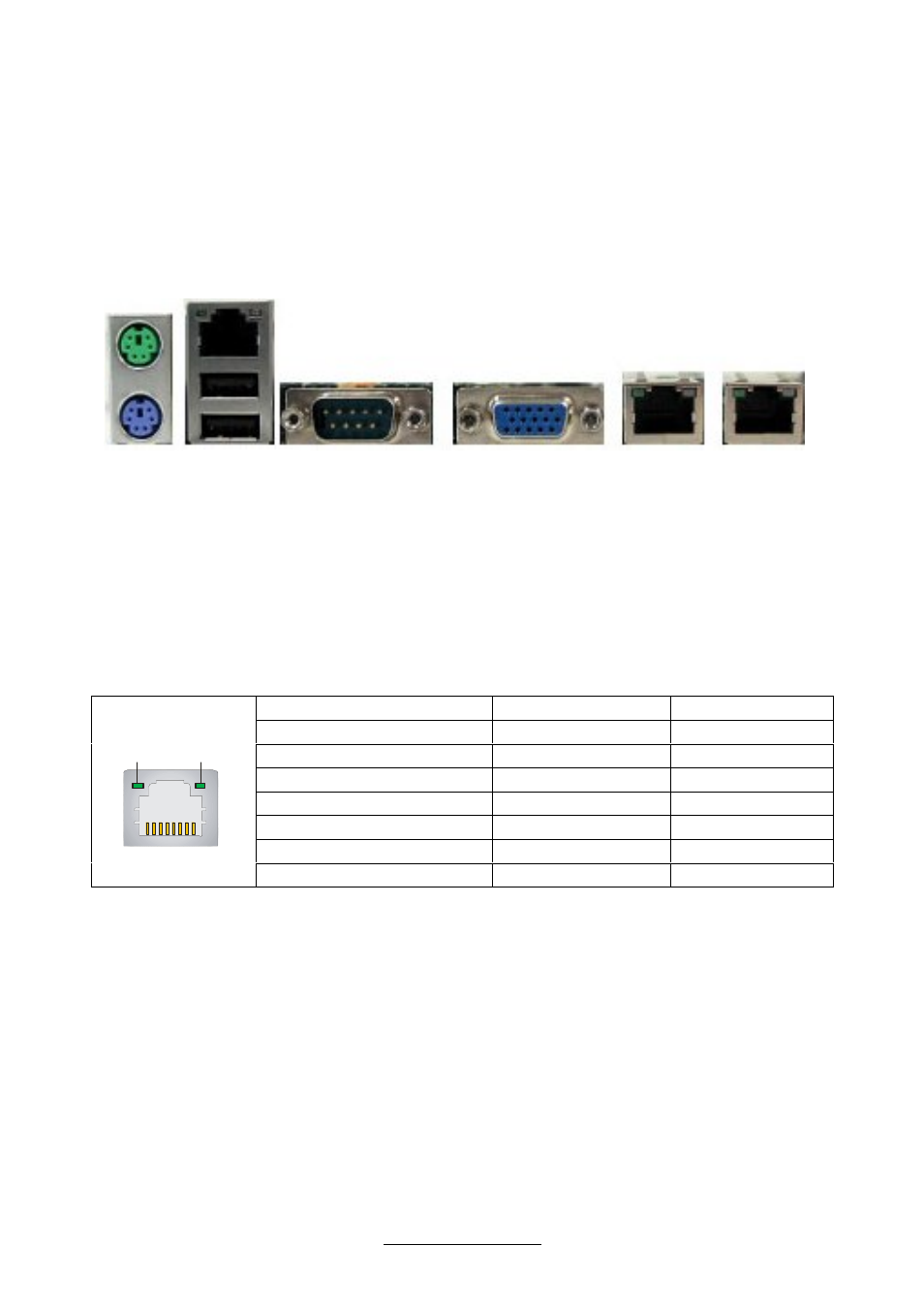

printer cables. The following diagram will detail the ATX port stack for the following
board.
Peripheral devices can be plugged straight into any of these ports bug software
may be required to complete the installation.
LAN LED Color Definition
The onboard Ethernet port has green and yellow LEDs to indicate LAN status. The chart
below illustrates the different LED states.
Description Left LED Right LED
No Link OFF OFF
Link 10Mbps Green OFF
Activity 10Mbps Green(blink) Green
Linked at 100Mbps Green Green
Activity 100Mbps Green(blink) Green(blink)
Linked at 1000Mbps OFF Green
Le ft Rig h t
Activity 1000Mbps OFF Green(blink)
PS/2
Mouse
/Keyboard
USB Port x 2
VGA Port Serial Port GbE LAN Port x 2
OPMA Port
