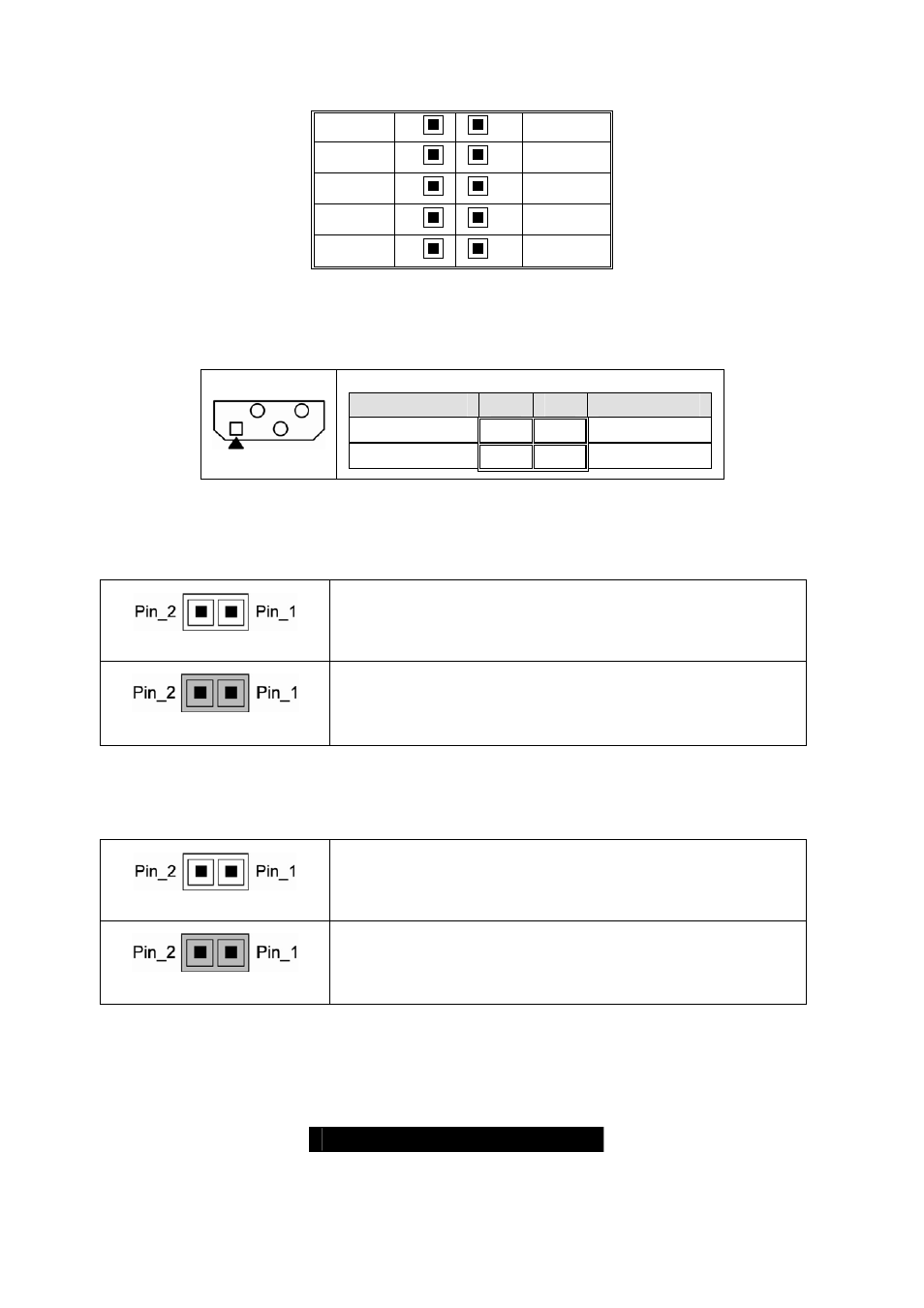

2.09 – COM2 Header (COM2)
DCD
1
2
DSR
RXD
3
4
RTS
TXD
5
6
CTS
DTR
7
8
RI
GND
9
10
NA
2.10 – IPMB Connector (IPMB)
Signal
Pin
Pin
Signal
IPMB DATA
1
2
GND
IPMB CLK
3
4
NC
2.11 – LAN1/LAN2 Enable/ Disable Jumper (JP9, JP10)
(Default)
Default, Enable
Install jumper to disable onboard LAN1/LAN2
2.12 – TPM Enable/ Disable Jumper (JP11)
(Default)
Default, Enable
Install jumper to disable TPM (Trusted Platform
Module) feature
