The following packages are needed to complete the installation of your
Sliding Patio Door System. Therma-Tru
®
Check all components for correct size and color.
Tools and materials needed for
assembly and installation:
"
Phillips Head
Rubber Mallet
• Gloves
• Safety Glasses
• Partial roll of insulation
• Shims
•
• 100% Silicone Sealant and Caulk Gun
• 6' Level
• Measuring Tape
• Electric Drill
• #2 Phillips Drive Bit
• Staple Gun or Brad Nails
• 1/8 Drill Bit
•
Screwdriver
2-Screens (sold separately)
Frame Kit
1-Head Jamb
2-Side Jambs
1-Sill
2-Active Interlocks
2-Inactive Interlocks
2-Jamb Covers
2-Panel Bumpers
12-#10 x 3" Flat Head Screws
14-#8 x 3" Pan Head Screws
1- This Instruction Booklet
4- Anchor Blocks
4- #10 x 1 1/2" Pan Head Screws
4- #10 x 2 1/2" Pan Head Screws
1-Sill Cap Base
1-Sill Cap Top
1-Drip Cap
1-Head Sealing Fin
2-Corner Pads
2-Foot Bolts
2-Foot Bolt Keepers
2-#8 x 1 1/2" S.S. Pan Head Screw
4-#8 x 1" S.S. Pan Head Screws
1-Touch Up Paint
4-Active Panel Hole Plug
6-#8 x 9/16” Pan Head Screw
2-Handle Set Kits
2-Handles
1-Exterior Backplate
1-Interior Backplate
2-Keys
2-Handle Screws
3-Phillips Head Machine Screws
1-Allen Wrench
2-Backplate Gaskets
2-Active Panels
2-Inactive Panels
Additional Parts
1-Strike Plate
7-#8 Flat Head Screws

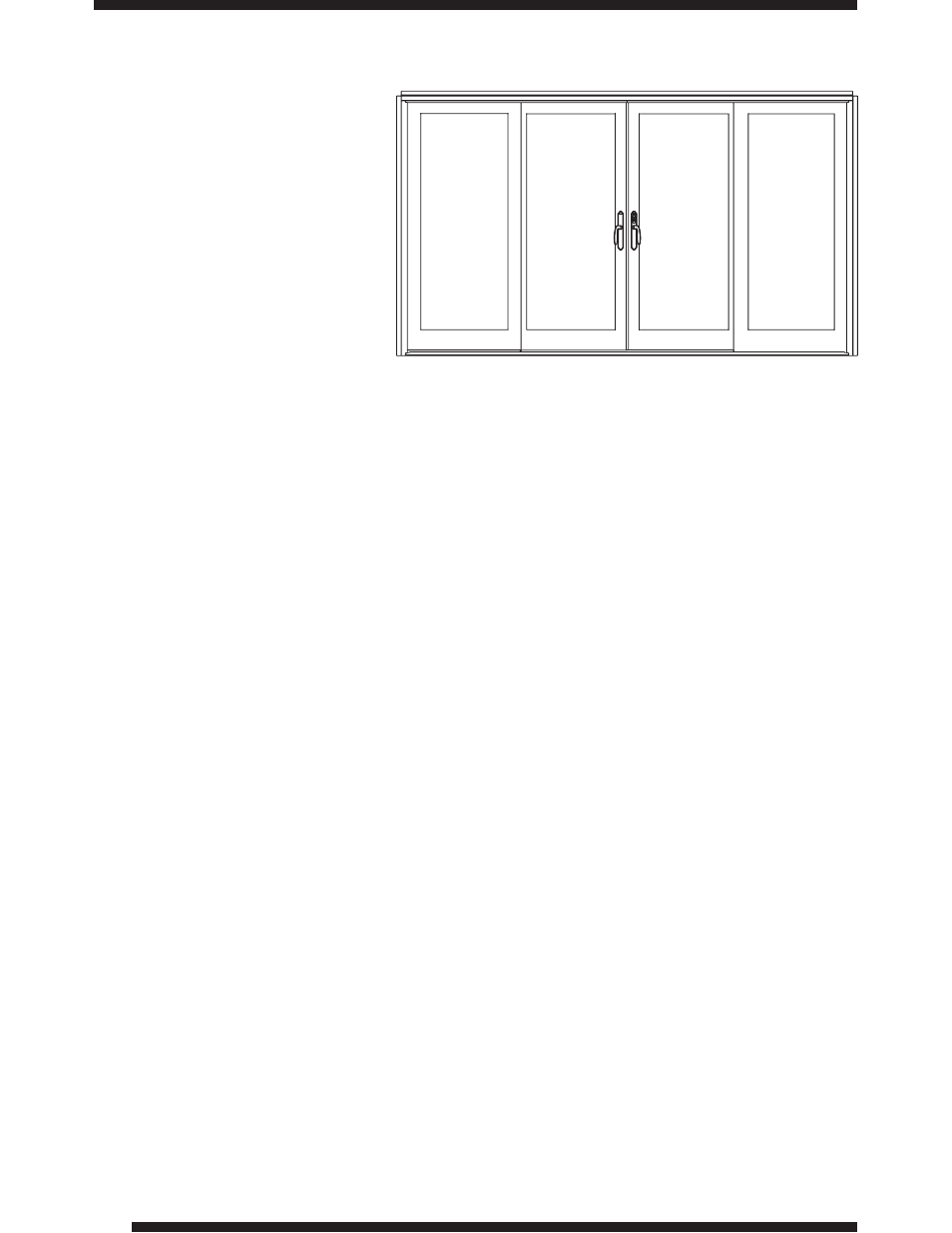

Operating
Panel
Stationary
Panel
Stationary
Panel
Operating
Panel
