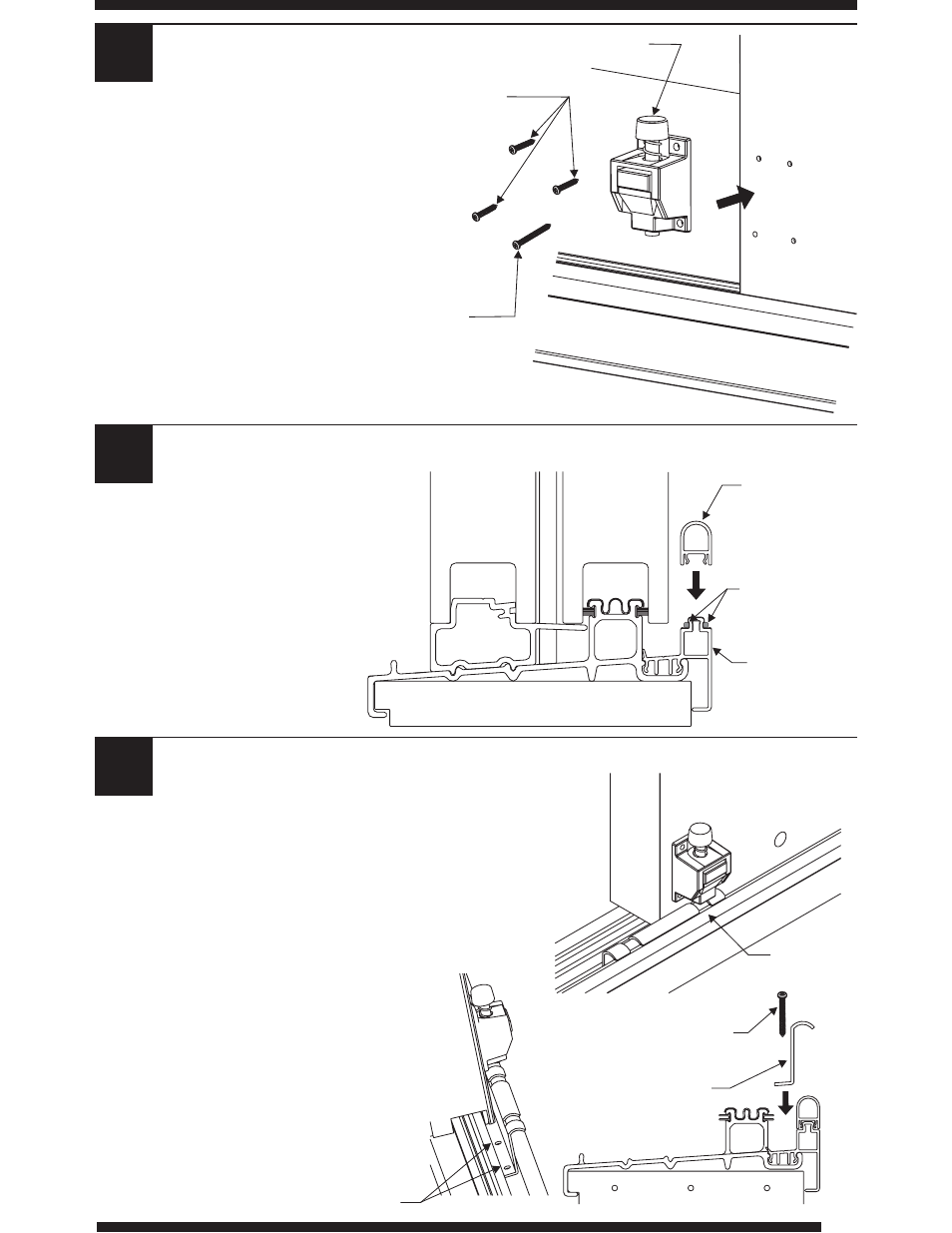

INSTALL FOOT BOLT KEEPERS
28
Close the active door completely.
Align notch in keeper with foot bolt
as shown.
Only the two exposed holes will be
used for installation. Pre-drill using
a 1/8" drill bit to drill two holes
through the holes in the keeper into
the sill cap and through the fiberglass
of the sill.
Screw (2) #8 x 1" S.S. Pan head
sheet-metal screws into the holes.
Repeat for second active panel.
Exposed holes
Foot bolt keeper
#8 x 1” pan head
screw
Notch
INSTALL SILL CAP TOP
27
Place a continuous bead of
clear sealant, to locations
shown, along entire length
of sill cap base.
Install sill cap top by
starting at each jamb and
working towards the center
of the door. Use a rubber
mallet to snap into place.
Align foot bolt to pre-drilled
holes in active slab and fasten
with the supplied S.S. pan head
sheet metal screws included with
the foot bolt.
Repeat for second active panel.
(1) #8 x 1 1/2 S.S. Pan Head
Sheet Metal Screw
Locate on bottom right corner
of the foot bolt. "
(3) #8 x 9/16
S.S. Pan Head
Sheet Metal
Screws "
Foot bolt
Sill cap top
Sealant
Sill cap base
