10

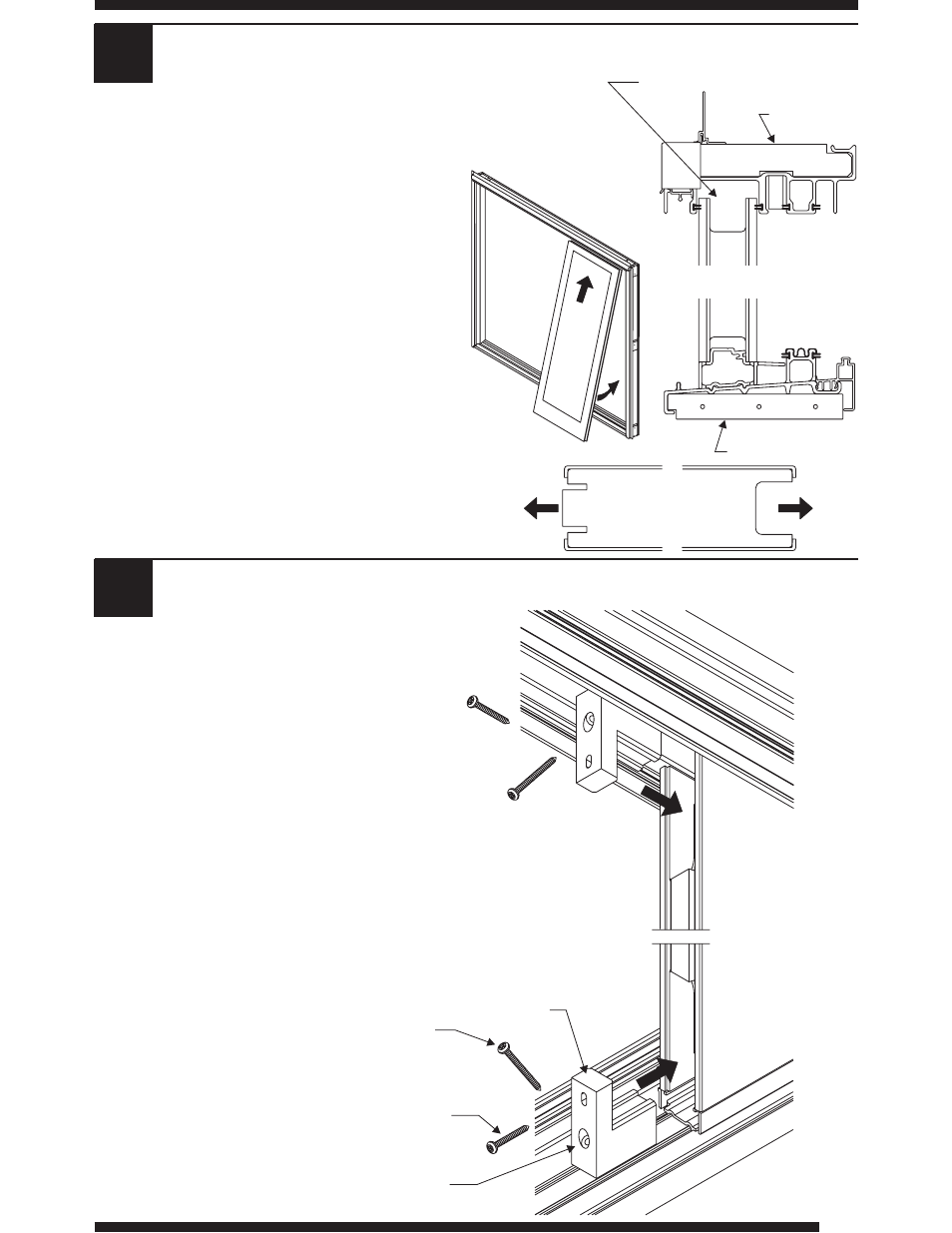

INSTALL BOTH STATIONARY PANELS
14
12
From exterior side of system, install
stationary panel by inserting top of
panel up into exterior channel in head
jamb. Be sure channel is against jamb
and kerfs towards center of unit. See
diagram below.
Rotate bottom of panel in until inactive
door riser leg sets into groove.
Slide panel tightly against side jamb
Wipe off excess caulking.
As reference, the exterior side of the
panel is always the pre-finished side.
Repeat for second stationary panel.
Head Jamb
Sill
Exterior channel
To center
of unit To
jamb
INSTALL ANCHOR BLOCKS
15
Insert anchor blocks into top and
bottom of inactive door panel.
Using a 1/8” drill bit, drill through
angled “toe-screw” hole into head
and sill.
Install #10 x 2 1/2” pan head
screws into “toe-screw” hole.
Fasten anchor block to panel with
#10 x 1 1/2” pan head screws.
Repeat for second stationary panel.
Head
Sill
Anchor block
#10 x 1 1/2” pan head screw
#10 x 2 1/2” pan head screw
“toe-screw” hole
