Texas Instruments TAS5110D6REF User Manual
Page 10
TAS5110D6REF Features
1-2
1.1
TAS5110D6REF Features
-
Six channel TDAA reference design (double-sided plated-through PCB
layout)
-
Supports noiseless self-contained protection system (short circuit and
thermal)
-
Supports both two-level modulation (AD-modulation scheme) and three-
level modulation (BD-modulation scheme)
-
Onboard subwoofer output (line level)

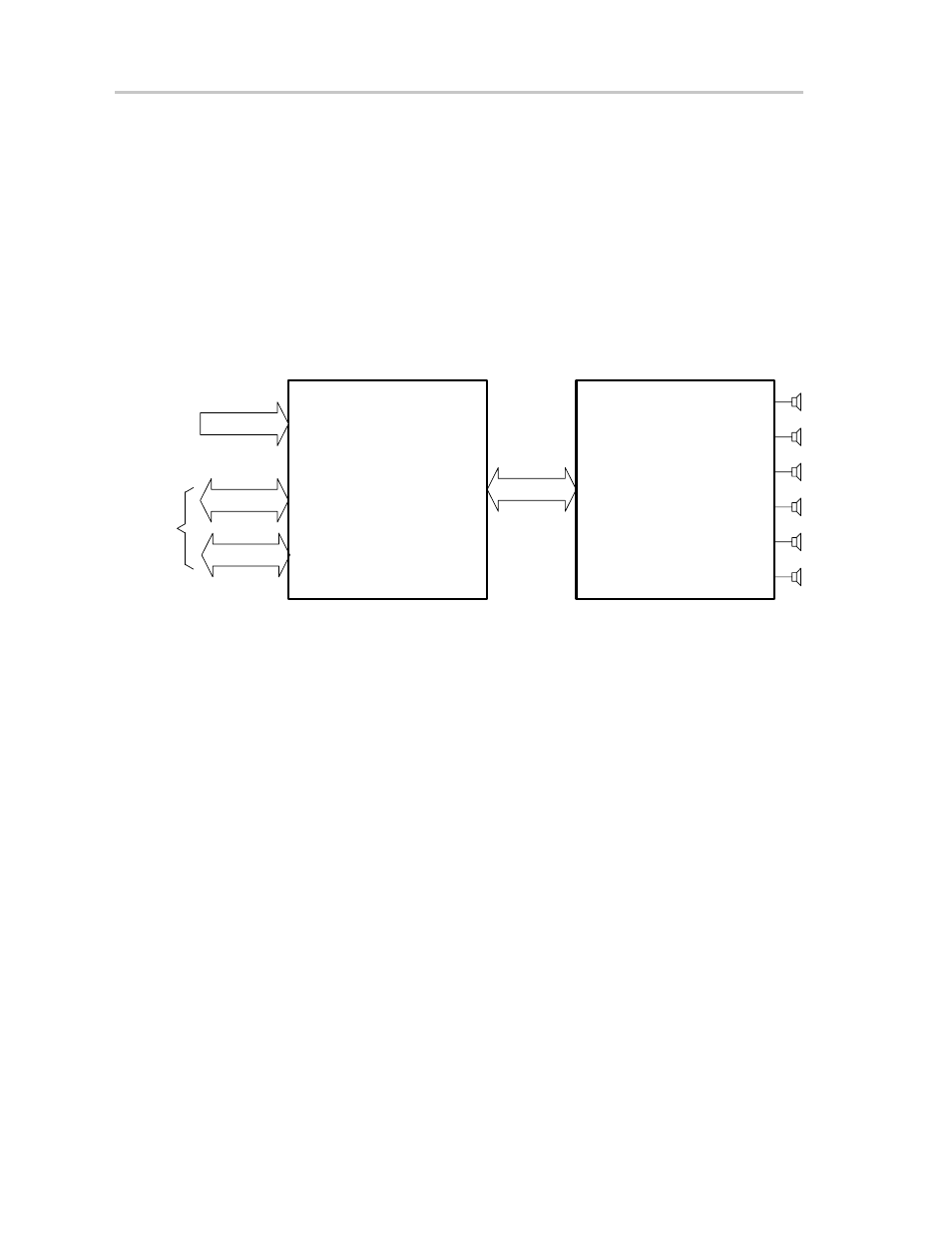

Figure 1–1. TDAA System With TAS5026REF/TAS5036 and TAS5110D6REF Modules
TAS5026REF/TAS5036REF
Module
PWM Interface
TAS5110D6REF
Module
Digital
Audio
Interface
Control
Interface
I2C Bus
Control Interface
I2C Bus
The TAS5026 processor is a two-level PCM-to-PWM modulator and the
TAS5036 processor is a three-level modulator.
