11
iPod Dock
Connect the Dock to the iPod port.
< Make sure the label side of the plug is up.
< Securely insert the plug until a slight “click” is
heard.

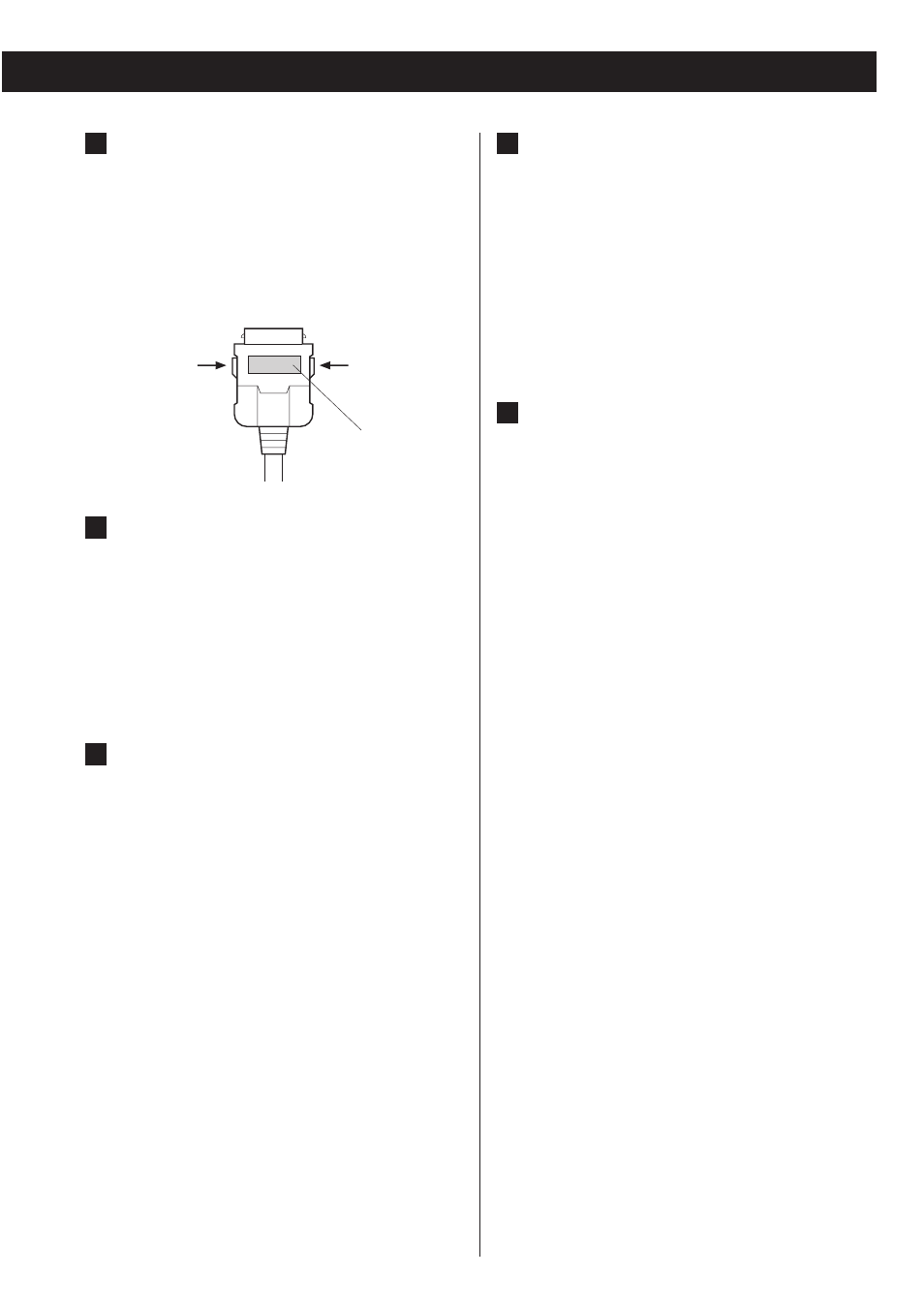

To disconnect the Dock:
Squeeze both sides of the plug and pull.
VIDEO OUT terminal
This terminal outputs video signal from iPod.
Use an RCA (pin) video cable to connect the Dock
to the composite video connector of a television
or monitor.
< Select “Click Wheel Mode” to output video signal
(see page 24).
S-VIDEO OUT terminal
This terminal outputs video signal from iPod.
Use an S-Video cable to connect the Dock to the
S-Video input of a suitably equipped television or
monitor. Use this connection in preference to a
composite video connection.
< Select “Click Wheel Mode” to output video signal
(see page 24).
H
G
F AUX 3 IN
You can connect a portable audio player to this
jack.
Connect the LINE OUT or PHONES jack (audio
output jack) of the player using a commercially
available stereo mini plug cable.
< When using the PHONES jack of your mini player,
you must adjust the volume of the mini-player or
you may hear no sound from your CR-H227i.
Headphones
For private listening, insert the headphones plug
into this jack, and adjust the volume by turning
the VOLUME knob.
J
I
label side
