PREPARATION
(Continued)

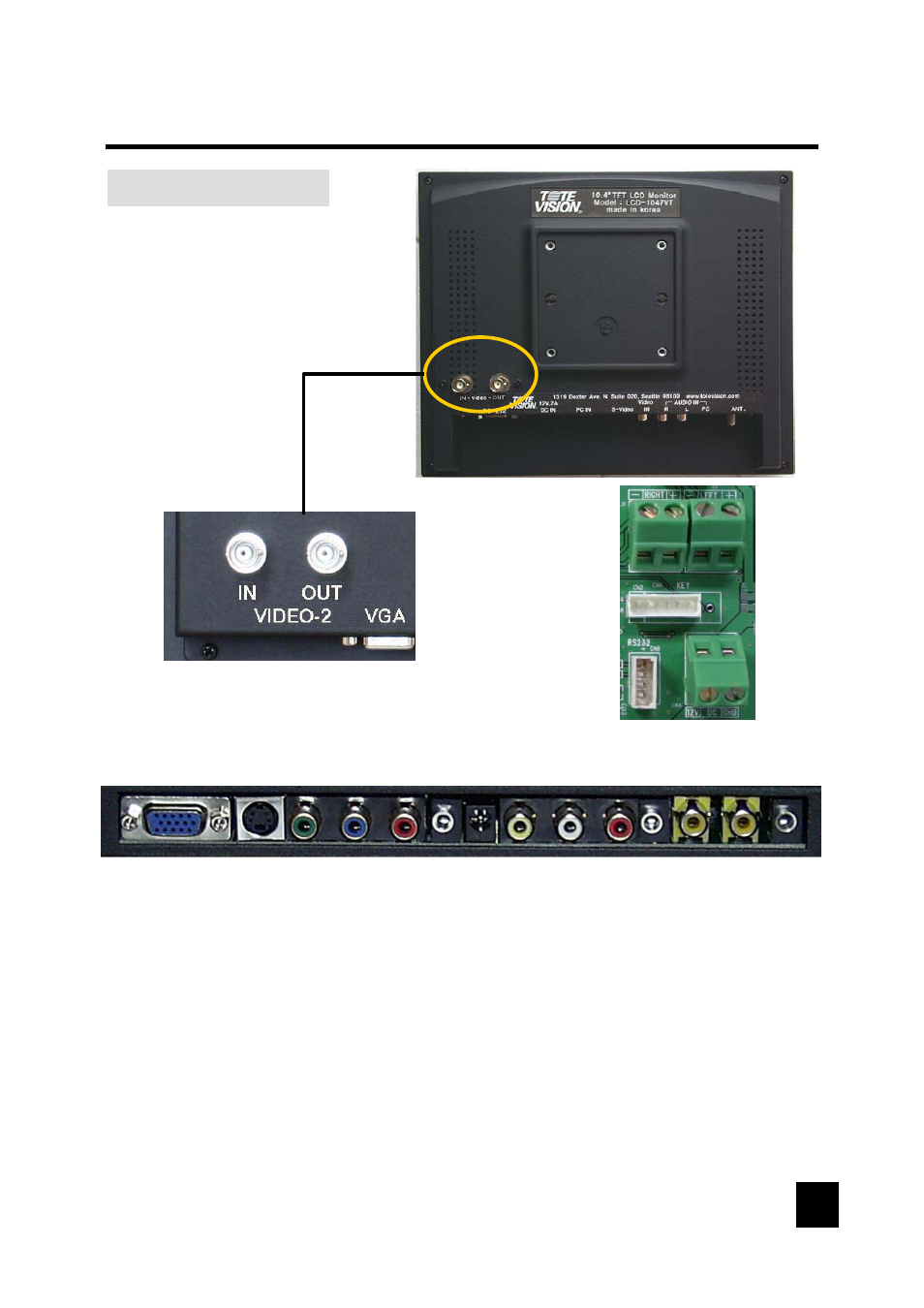

Cable Connection
1. BNC Video OUT is
passive loop out.
2. If BNC Video IN is
applied, RCA Video IN
will be disabled.
EXT. DC
Rear view of main unit
EXT. Speaker
KEY control
*
RS-232 (option)
(option) BNC Video
IN & loop out
VGA S-Video Y Pb
Pr PC 12V Video 1 L R Line Video Vdeo2 IR
sound DC IN
*OUTPUT Ext.
*
VIDEO OUT
is active output for Video 1 or Video 2 input.
If S-Video or component input is selected, display of this output will be
changed to black and white because the color of the original input signal is
already separated.
