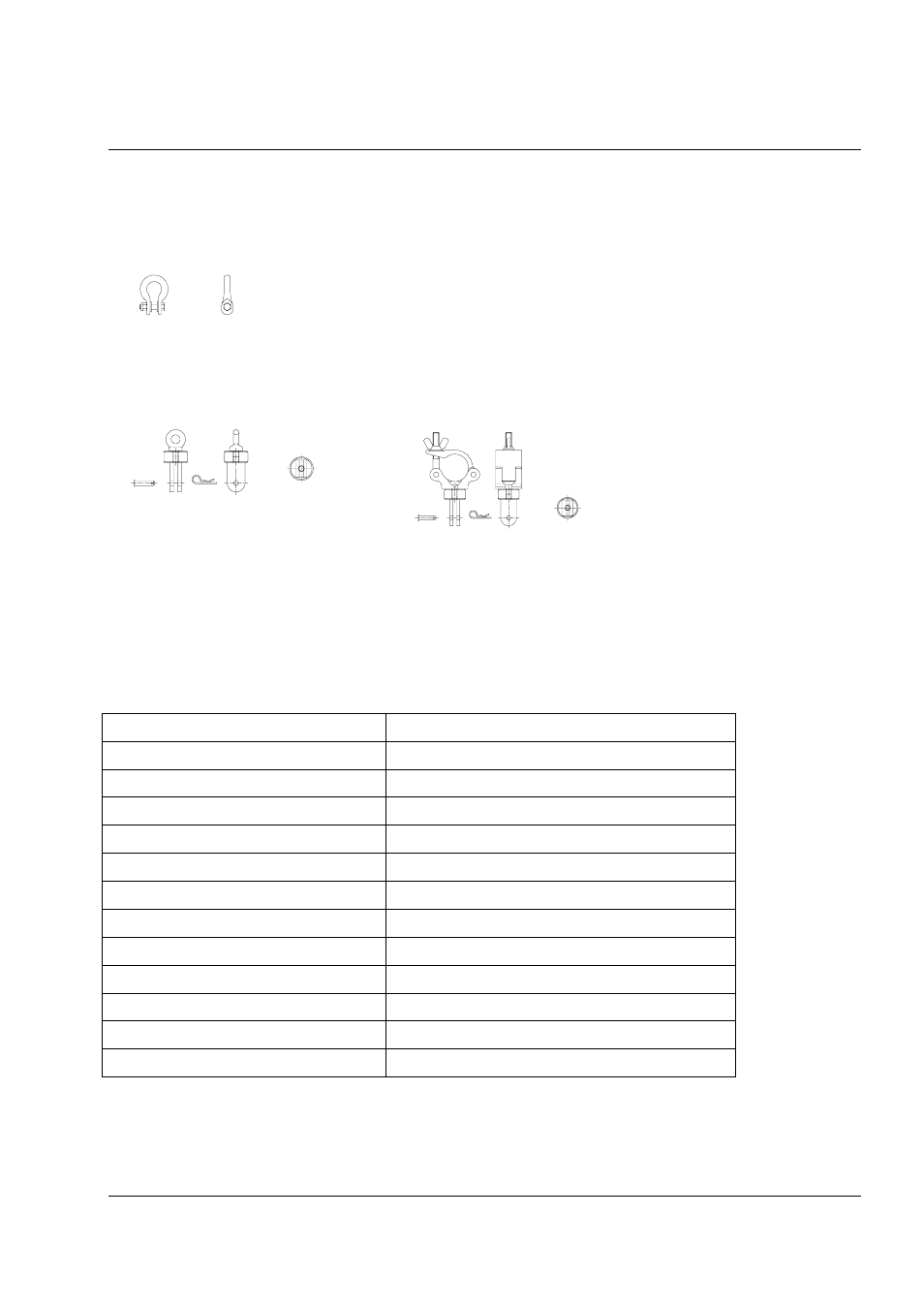

The FB-12 flybar assembly comes supplied with a U-6 Unilock fitting, which provides a single
attachment point. The point at which the Unilock is attached to the flybar determines the vertical
angle of the loudspeaker as shown in the table following.
A pick-up point adapter offers a further single attachment point. This option provides fast
adjustment of vertical angle. The point at which the eyebolt adapter is attached to the flybar
determines the vertical angle of the loudspeaker as shown in the table following.
The SC-440 aluminium scaffold clamp is attached to the T-bar by means of a simple clevis
coupler. It is designed to rotate horizontally through 360
° in order to enable accurate positioning
of the loudspeaker. The point at which the scaffold clamp is attached to the flybar determines the
vertical angle of the loudspeaker as shown in the table following.
The following table gives the predicted downward angle of the enclosure.
Attachment position Vertical angle (negative angle denotes upwards)
Hole number 1 (front of cabinet) -29 °
Hole number 2 -23 °
Hole number 3 -17 °
Hole number 4 -10 °
Hole number 5 -3 °
Hole number 6 4 °
Hole number 7 11 °
Hole number 8 18 °
Hole number 9 24 °
Hole number 10 30 °
Hole number 11 35 °
Hole number 12 (rear of cabinet) 40 °
