Page 14
user manual
QLight™ DP series
QLight DP series manual
page 14

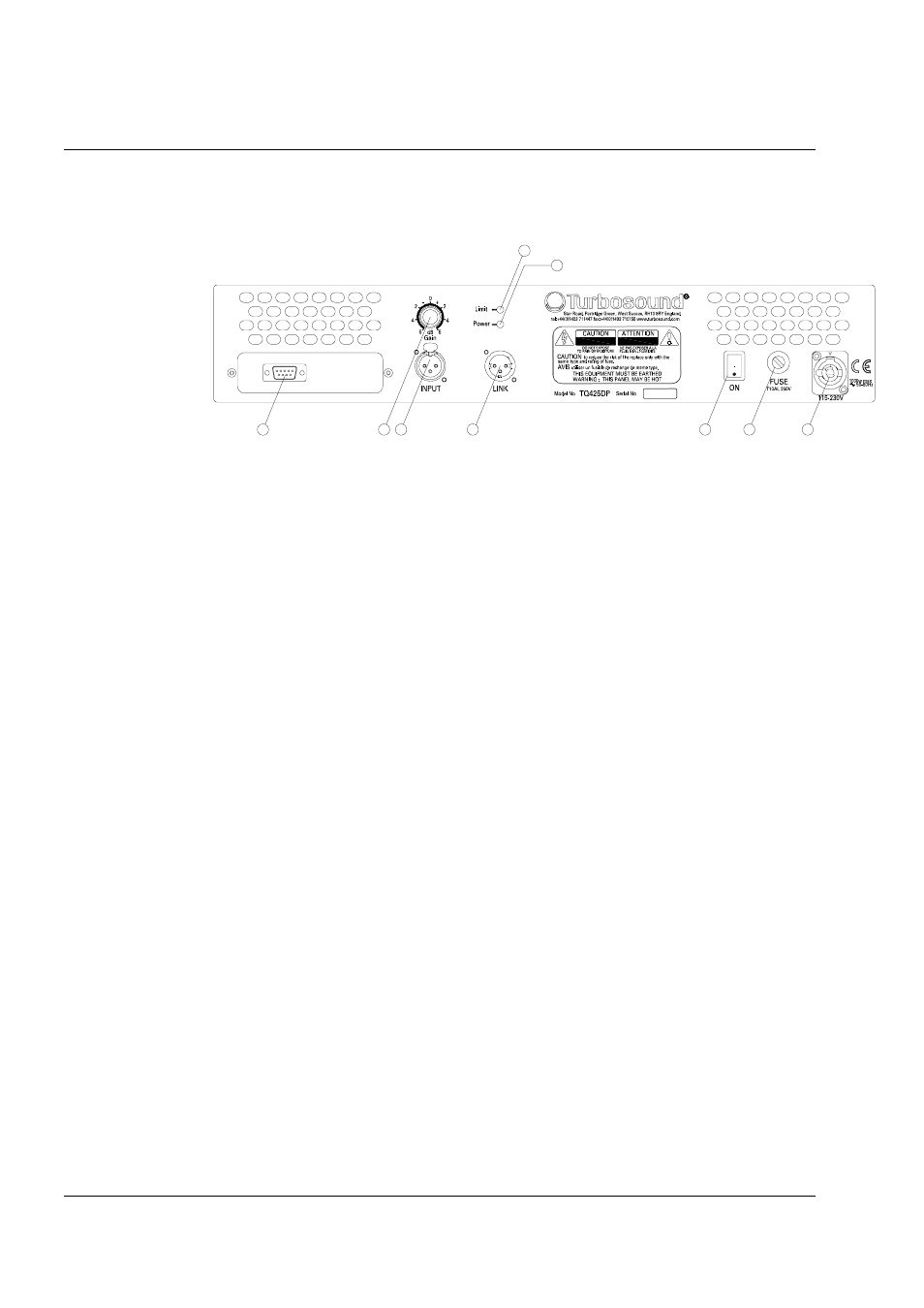

TQ-425DP connector panel functions
1.
Aux – RS232 port used for updating settings or firmware.
2.
Gain control – gain trim control ranges from +6dB to -6dB
3.
Signal input – lockable 3-pin XLR line input socket connects to audio mixer. Fully balanced,
pin 2 Hot, pin 3 Cold and pin 1 not connected.
4.
Signal link – lockable 3-pin XLR line output socket links to additional cabinets. Fully
balanced, pin 2 Hot, pin 3 Cold and pin 1 not connected.
5.
Mains switch – turns AC power on to the unit.
6.
Fuse – AC line fuse. Replace only with 10A 230V anti-surge fuse.
7.
AC mains connection - accepts Neutrik PowerCon® 3-pin cable-end connector.
8.
Limit – red LED indicates limiting threshold.
9.
Power - Blue LED indicates when AC power is applied to the amplifier module.
PUSH
1
2
3
4
6
7
5
7
8
