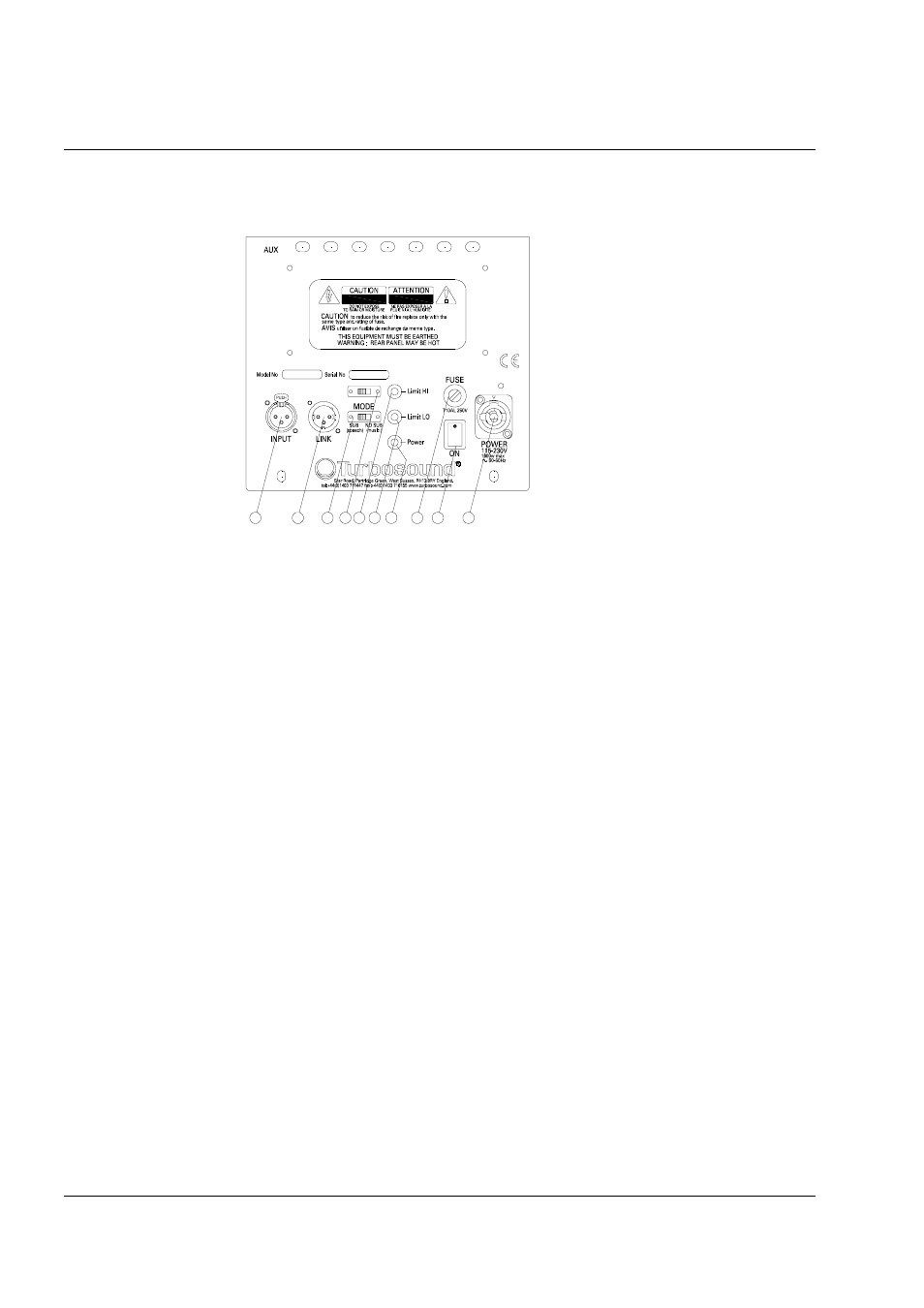

TQ-315DP and TQ-445DP connector panel functions
1. AUX connection – RS232 port used for updating settings or firmware.
2. Signal link – lockable 3-pin XLR line input socket connects to audio mixer. Fully balanced,
pin 2 Hot, pin 3 Cold and pin 1 not connected.
3. Signal link – lockable 3-pin XLR line output socket connects to additional cabinets. Fully
balanced, pin 2 Hot, pin 3 Cold and pin 1 not connected.
4. Mode switch – used to change the low frequency tuning when used with QLight™ series
subwoofers or for stand-alone operation.
5. Power – blue LED indicates when AC power is applied to the amplifier module.
6. Limit (low) – red LED used to indicate LF limiting, self test and protection.
7. Limit (high) – red LED used to indicate MF/HF limiting, self test and protection.
8. Fuse – AC line fuse. Replace only with 10A 230V anti-surge fuse.
9. Power – Blue LED indicates when AC power is applied to the unit.
10. AC Mains connection – accepts Neutrik PowerCon® 3-pin cable-end connector.
