PBA-2030
Precision Biconical Antenna
Electrical Characteristics
Frequency Range:
20 MHz to 300 MHz
VSWR: 2.5:1
average
Polarization: Linear
Power Handling:
100 W maximum
Feedpoint Impedance:
50 ohms nominal
Mechanical Specifications
Size:
138 cm x 53 cm x 72
cm (length x width x
height)
Weight: 3
kg
Construction:
Aluminum with gold
chromate finish
RF Connector:
N type female or SC
Rev. 2011-08-02
To place an order or to learn more about the
TDK products that best meet your needs, con-
tact your TDK sales representative:
TDK RF Solutions Inc.
1101 Cypress Creek Rd.
Cedar Park, Texas 78613 USA
Phone: 1-512-258-9478
Fax: 1-512-258-0740
E-mail:
World Wide Web:
www.tdkrfsolutions.com

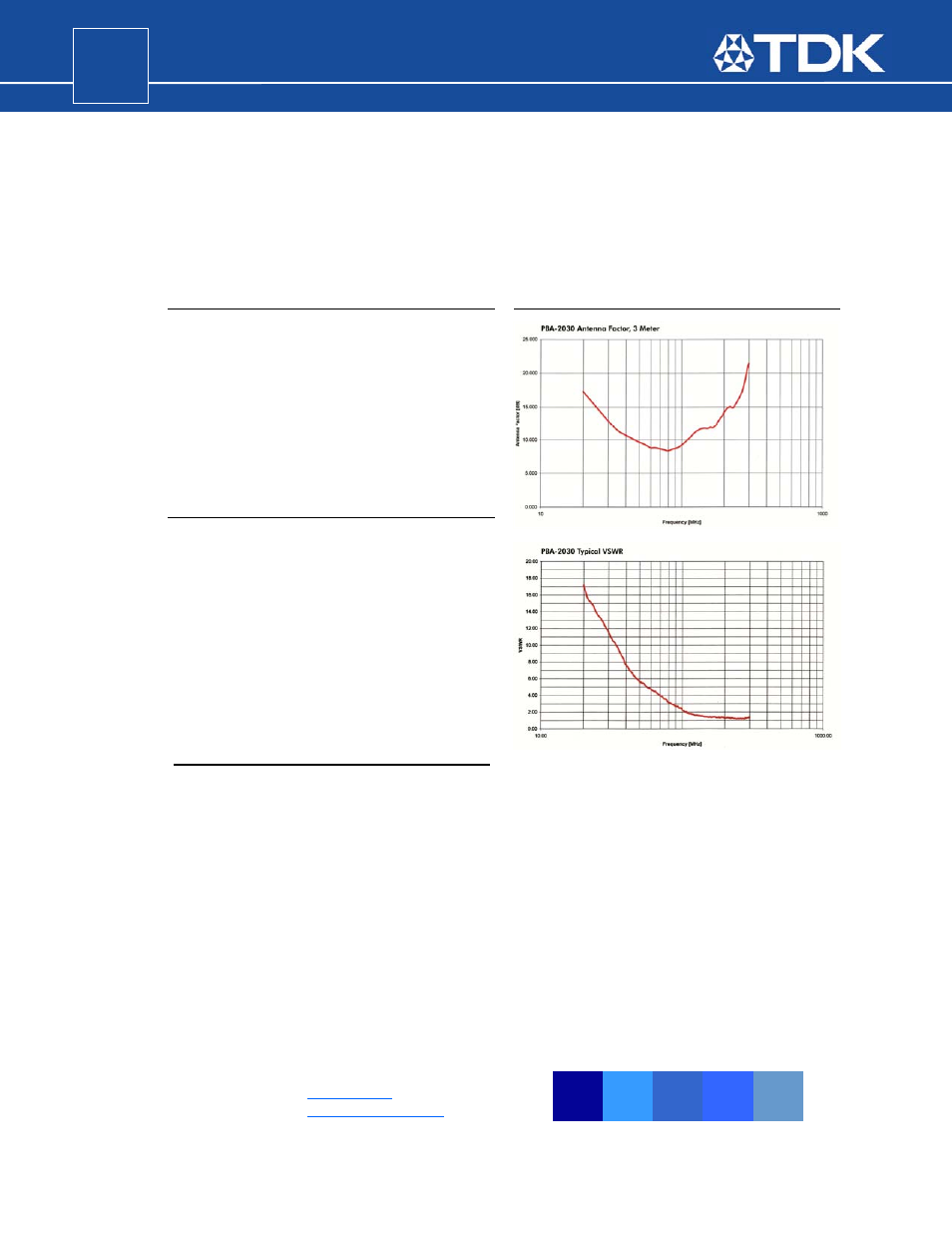

Antenna Data
Ordering Information
Product: Precision
Biconical
Antenna
Model Number:
PBA-2030
Warranty:
1 year limited
