How to Set Up Your Computer to Use the Media Center
with a TV Tuner 6
1 Remove the coaxial cable from the VCR input, and
connect it to the input of a coaxial cable signal
splitter (not shipped with your computer or system).
2 Connect two coaxial cables to the splitter outputs.
3 Connect one of the coaxial cables to the VCR input,
and the other end to the coax port on the front side of
the computer.
4 Connect the coaxial cable.
To connect your computer to a TV, you need a
video/AV cable. The type of cable depends on
your TV.

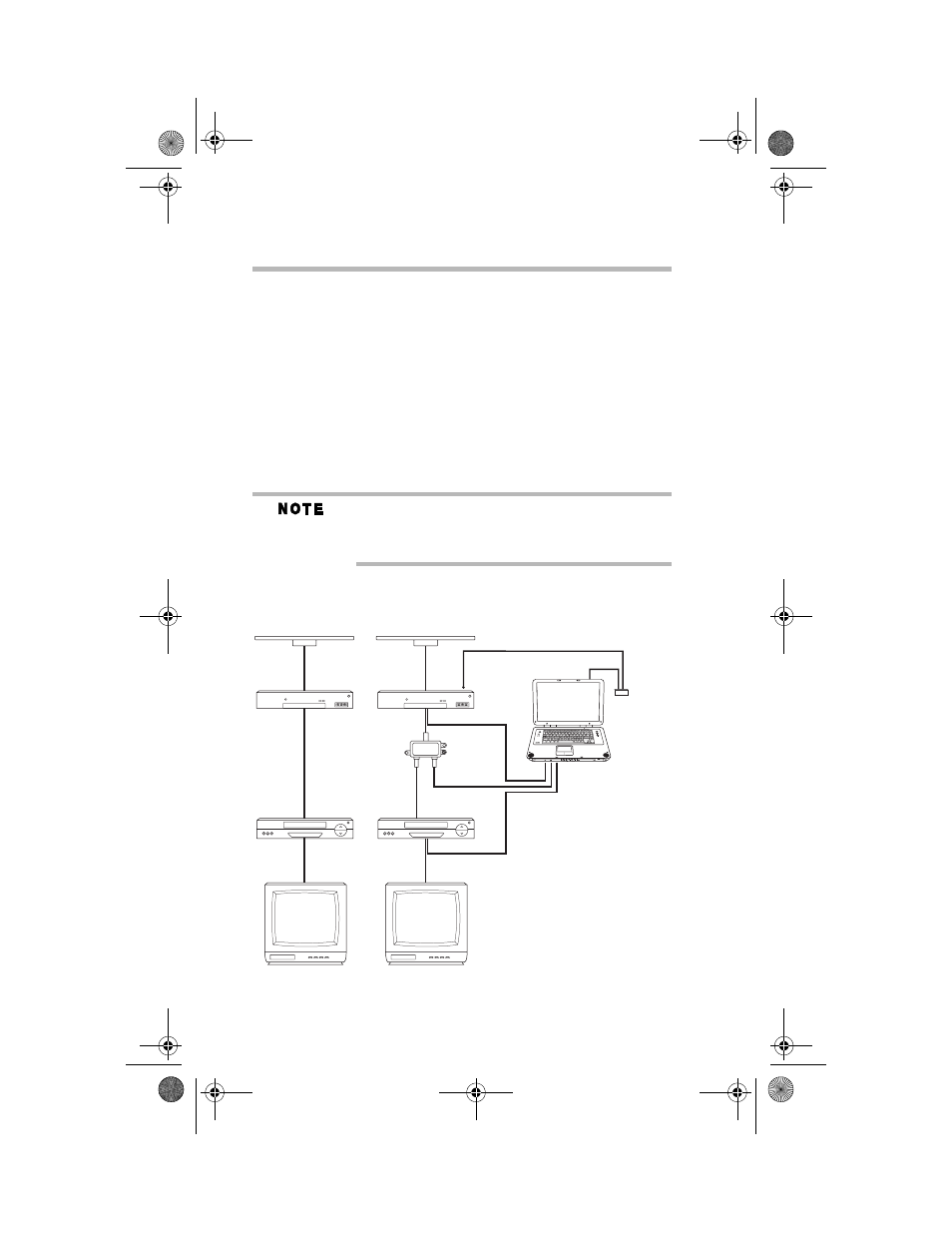

Sample wall to VCR to TV setup for the Satellite P25
TV In TV In
Coaxial
cable
Remote
sensor
Remote sensor
control cable
IR receiver
Existing setup Add the notebook with a splitter
Wall
Cable
Wall
Cable
Set-top box/
satellite In Set-top box/
satellite In
Set-top box/
satellite Out Set-top box/
satellite Out
VCR In VCR In
VCR Out VCR Out
Splitter In
Splitter Out
Coaxial cable TV (in) on front
of notebook
Coaxial
cable
Coaxial
cable
Composite port cable
Composite port cable
