Toshiba 5205 User Manual
Page 12

How to Set Up Your Computer to Use the Media Center
with a TV Tuner
12

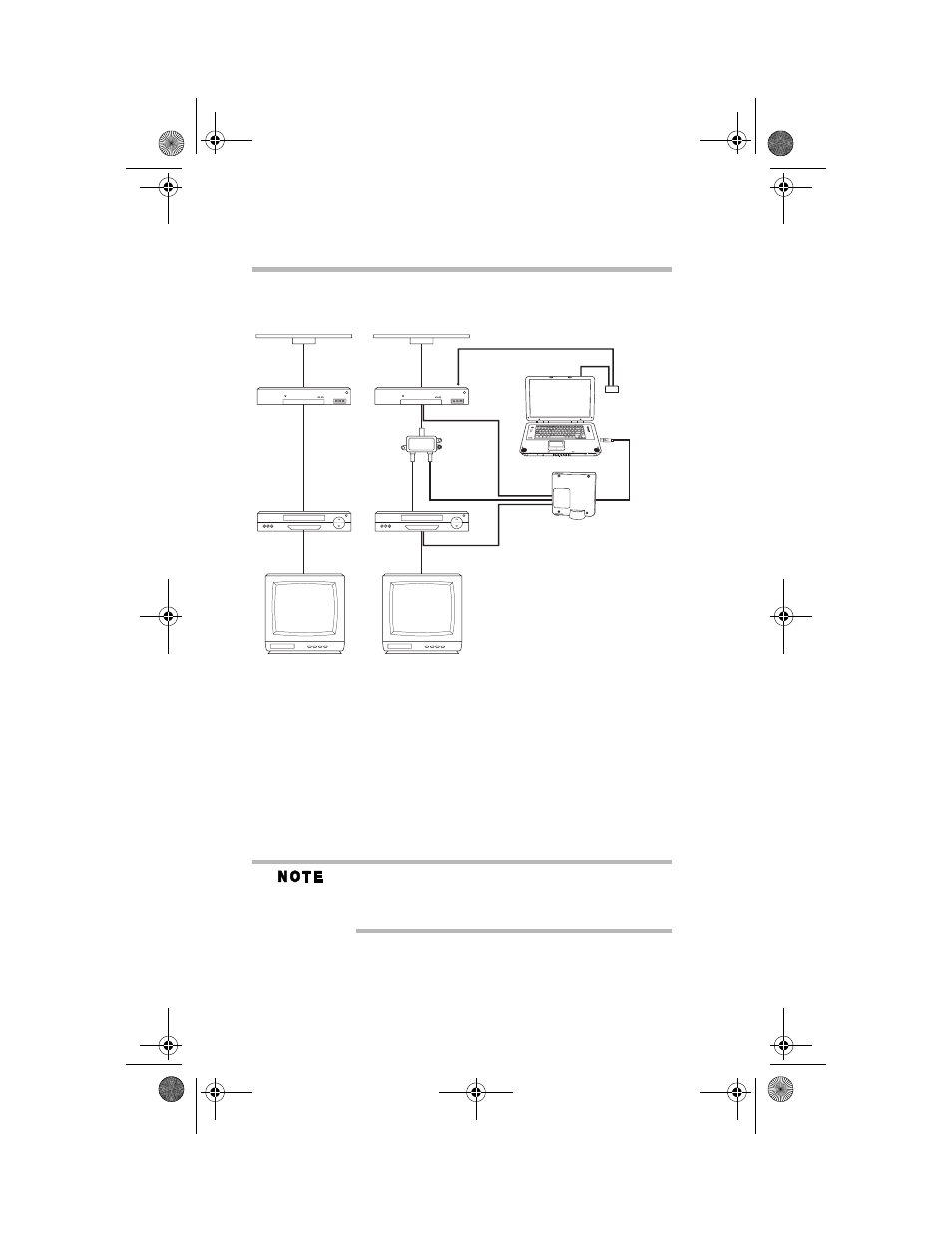

Sample wall to VCR to TV setup for the Satellite P15
Connecting the VCR or Set Top Box to the Composite
Port
Connect the AV composite cable from the VCR or Set
top box to the AV composite port on the external TV
tuner; or, connect a coaxial cable from the VCR or Set
top box to the TV-IN on the external TV tuner.
For information on configuring the Media
Center and the Remote Sensor, refer to your
User Guide.
TV In
TV In
Coaxial
cable
Remote sensor
control cable
Remote
sensor
IR receiver
Existing setup
Add the notebook with a splitter
Wall
Cable
Wall
Cable
Set-top box/
satellite In
Set-top box/
satellite In
Set-top box/
satellite Out
Set-top box/
satellite Out
VCR In
VCR In
VCR Out
VCR Out
Splitter In
Splitter Out
Coaxial cable
Composite port cable
Composite port cable
USB port
on side of
computer
TV tuner
Coaxial
cable
Coaxial
cable
C1914-1
C1914-1.fm Page 12 Friday, September 19, 2003 1:00 PM
