How to Set Up Your Computer to Use the Media Center
with a TV Tuner
10
TV tuner external connections
Connecting the TV Signal Source When You
Have an Existing Setup
This section shows you how to connect the signal source
from the wall to a VCR to a TV using coaxial cable.
1
Remove the coaxial cable from the VCR input, and
connect it to the input of a coaxial cable signal
splitter (not shipped with your computer or system).
2
Connect two coaxial cables to the splitter outputs.
3
Connect one of the coaxial cables to the VCR input,
and the other end to the coaxial port on external TV
tuner.
Connecting the External Remote Sensor
The external IR remote sensor is a small device that
connects to the computer and allows the remote control to
work with the Media Center programs.
DC IN
Coaxial
Power indicator
USB connector
Audio/Video
connector
composite

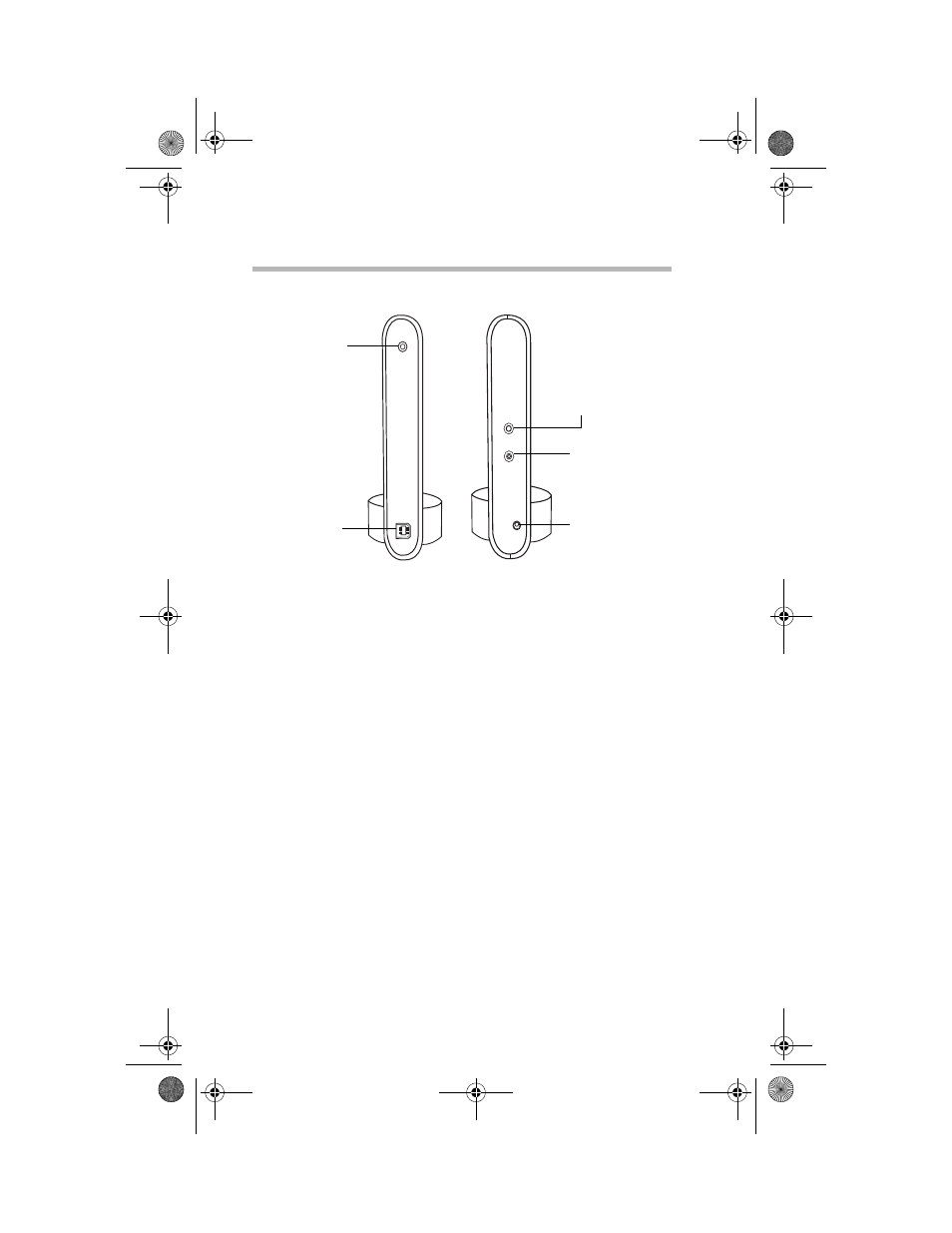

TV Tuner - Back
TV Tuner - Front
port
