Page 6

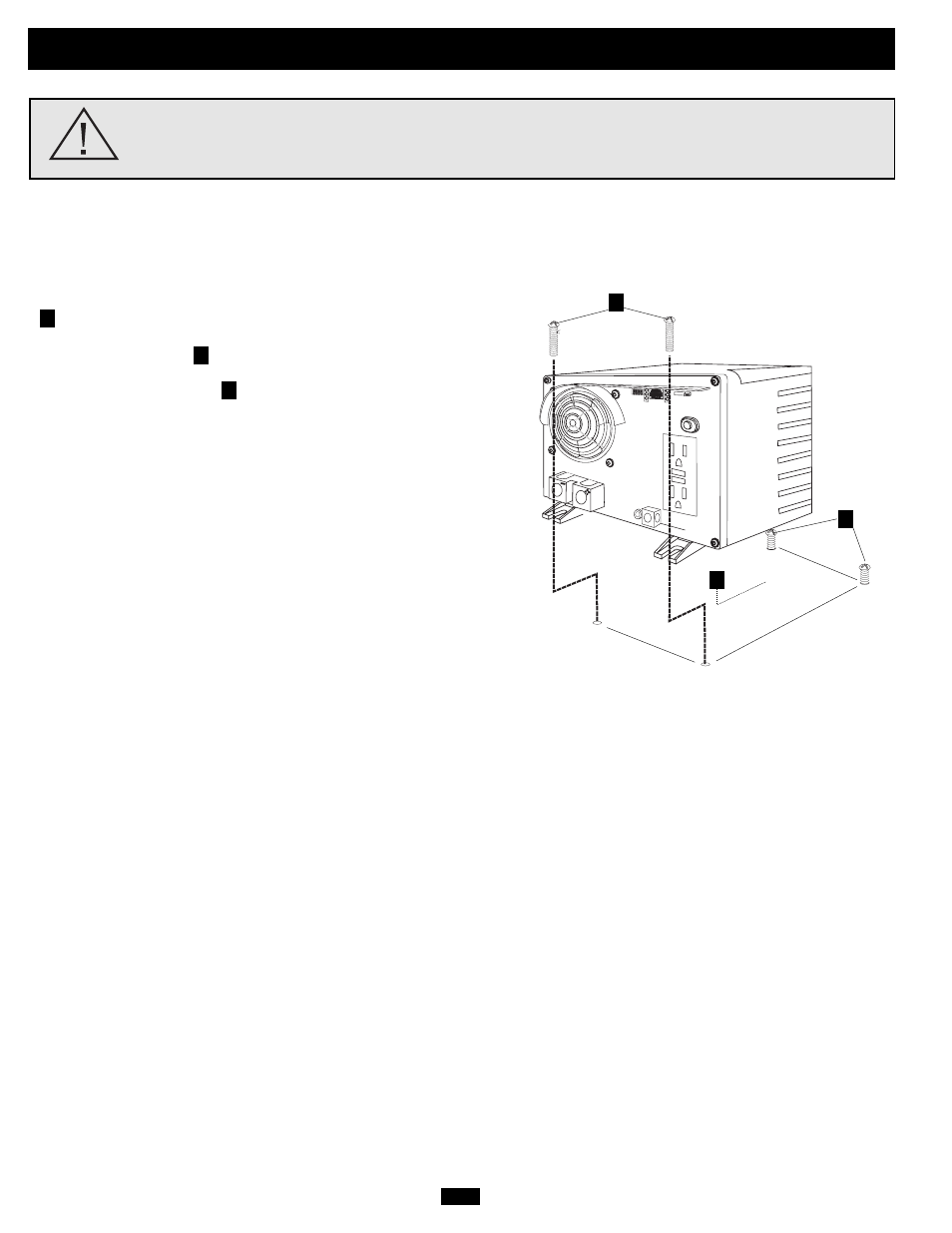

Vehicular and Non-Vehicular Horizontal Mount

Using the measurements from the diagram, install two user-sup-

plied ¼" (6 mm) fasteners into a rigid horizontal surface, leaving
the heads slightly raised.

Slide the Inverter/Charger back over

the fasteners to engage the mounting slots molded on the bottom of
the Inverter/Charger cabinet.

Install and tighten two user-sup-

plied ¼" (6 mm) fasteners into the mounting feet molded on the
front of the Inverter/Charger cabinet.

6PV

Mounting

optional

WARNING! If you choose to mount your Inverter, mount it and wire its DC input
BEFORE DC battery connection. Failure to follow these instructions may lead to
personal injury and/or damage to the Inverter and connected systems.

Tripp Lite Inverters are designed for horizontal mounting in a variety of vehicular or non-vehicular applications. User must supply mounting
hardware and is responsible for determining if the hardware and mounting surface are suitable to support the weight of the Inverter. Contact
Tripp Lite if you require further assistance in mounting your Inverter.

▼

7.87 in (20 cm)

6.75 in (17.1 cm)

▼

4.5 in (1

1.4 cm)
