6.6. Program example for parameter writing

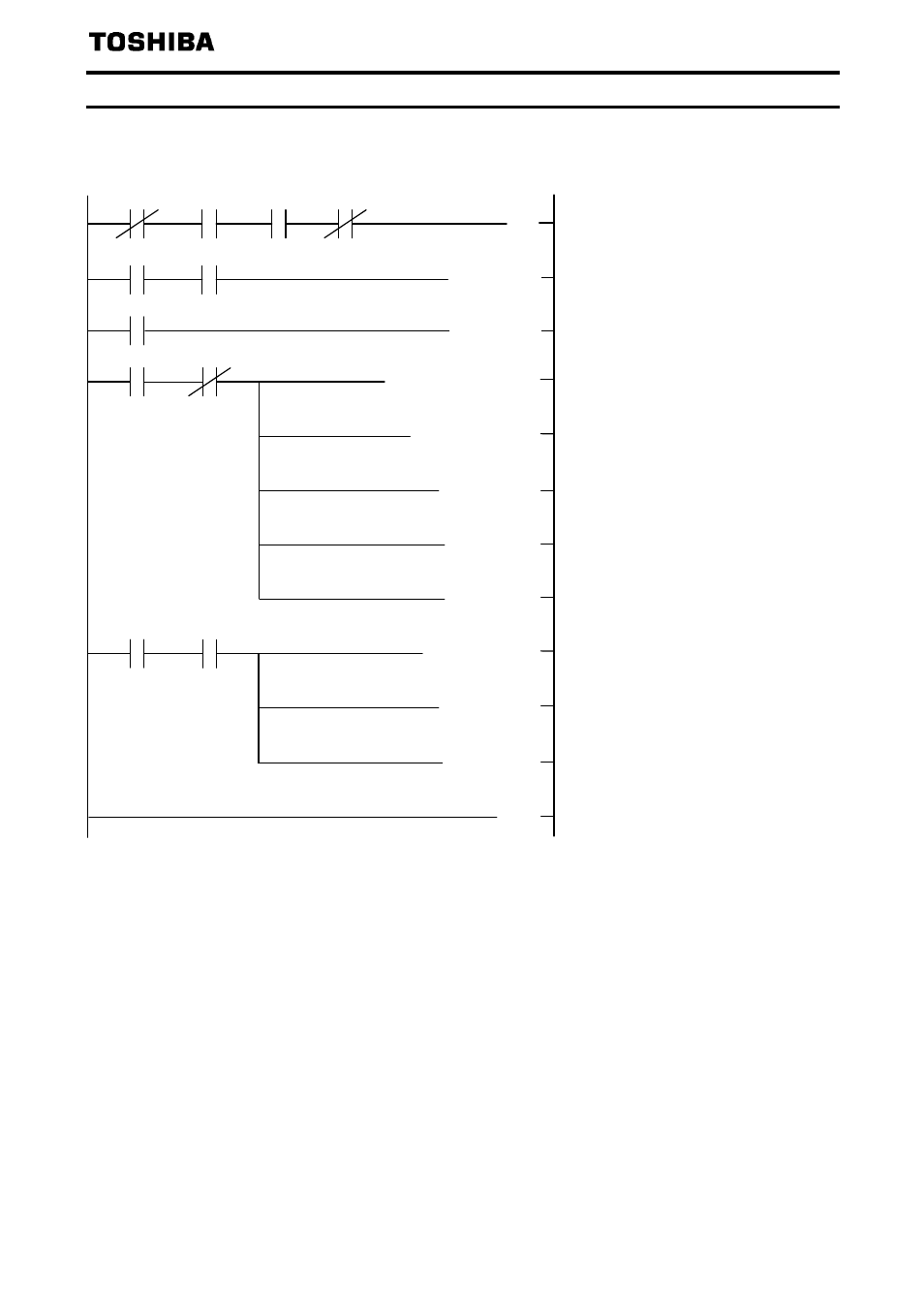

Example 6 shows a ladder logic to chang the setting of f311 of station 1 inverter to 1
f311 : Reverse-run prohibition reading code number: 2311H (hexadecimal)
Reverse-run prohibition set data: 1 (decimal)
Refer to 5.5.8 for detail.
X0 X0F X1 SW80.0
M0 X20
M300
M301 X100F
[ MOV H2311 W102]
M302 X100F
[ MOV W2 D2]
( M0)
[ PLS M300]
[ SET M301]
[ MOV K1 W103]
[ SET Y100F]
[ RST M301]
[ SET M302]
[ RST Y100F]
[ RST M302]
[ END]
Check the ready of the Station 1
Write f311 write code (2311H) to
RWw2 and r
everse-run prohibition
setting
Turn on the instruction code
execution
Read reply code (RWr2) to D2 when the
Instruction code execution completion
flag
Turn off the instruction code
execution
Example
