SECTION 2 - INSTALLATION

C. ELECTRICAL CONNECTION

IMPORTANT

THE ELECTRICAL CONNECTION TO THE TOASTER

REQUIRES A CIRCUIT BREAKER/FUSED

DISCONNECT. ELECTRICAL SPECIFICATIONS ARE

LISTED ON THE SERIAL PLATE (SHOWN IN FIGURE

2-2), AND IN THE TOASTER SPECIFICATIONS TABLE

(PAGE 1-2).

CONSULT ALL APPLICABLE NATIONAL AND LOCAL

CODES FOR FURTHER ELECTRICAL CONNECTION

REQUIREMENTS.

1. Before proceeding with the electrical connections,

check the following:
a. Check that the supply wire size is adequate.
b. Check that the circuit breaker/fused disconnect

is present, and of the correct rating.

c. Check that the appropriate receptacle is available

for the power cord plug.

If necessary, refer to the toaster’s serial plate (Figure

2-2) and to the Toaster Specifications table (Page 1-

2).

WARNING

ENSURE THAT BOTH THE CIRCUIT

BREAKER/FUSED DISCONNECT AND THE

ON/OFF/STANDBY KNOB ARE IN THE “OFF”

POSITION BEFORE PROCEEDING.

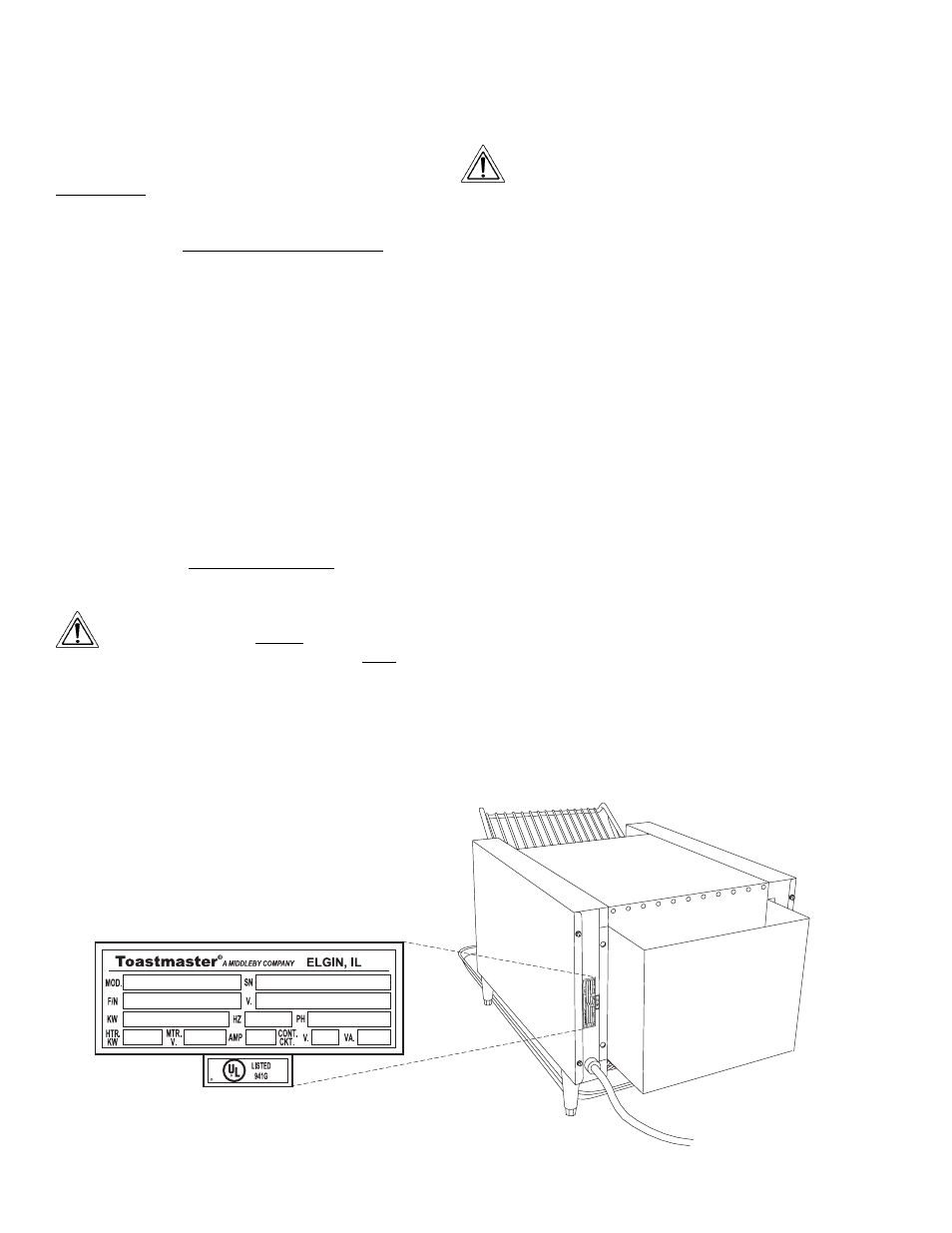

Figure 2-2 - Serial Plate Location

WARNING

ENSURE THAT ANY PACKING MATERIAL

RESIDUE HAS BEEN REMOVED FROM

INSIDE THE TOASTING CHAMBER.

2. Insert the power cord plug into its receptacle.

D. CHECKING THE INSTALLATION

1. Restore power to the toaster at the circuit breaker/

fused disconnect.

2. Switch the ON/OFF/STANDBY knob to the “ON”

position.

3. Check that the conveyor is moving forward into the

toaster.

4. Check that all heating elements are heating and

glowing red.

5. Switch the ON/OFF/STANDBY knob to the “OFF”

position.

6. Visually check that the heating elements are no

longer on, and that the conveyor has stopped moving.
