SECTION 1 - DESCRIPTION

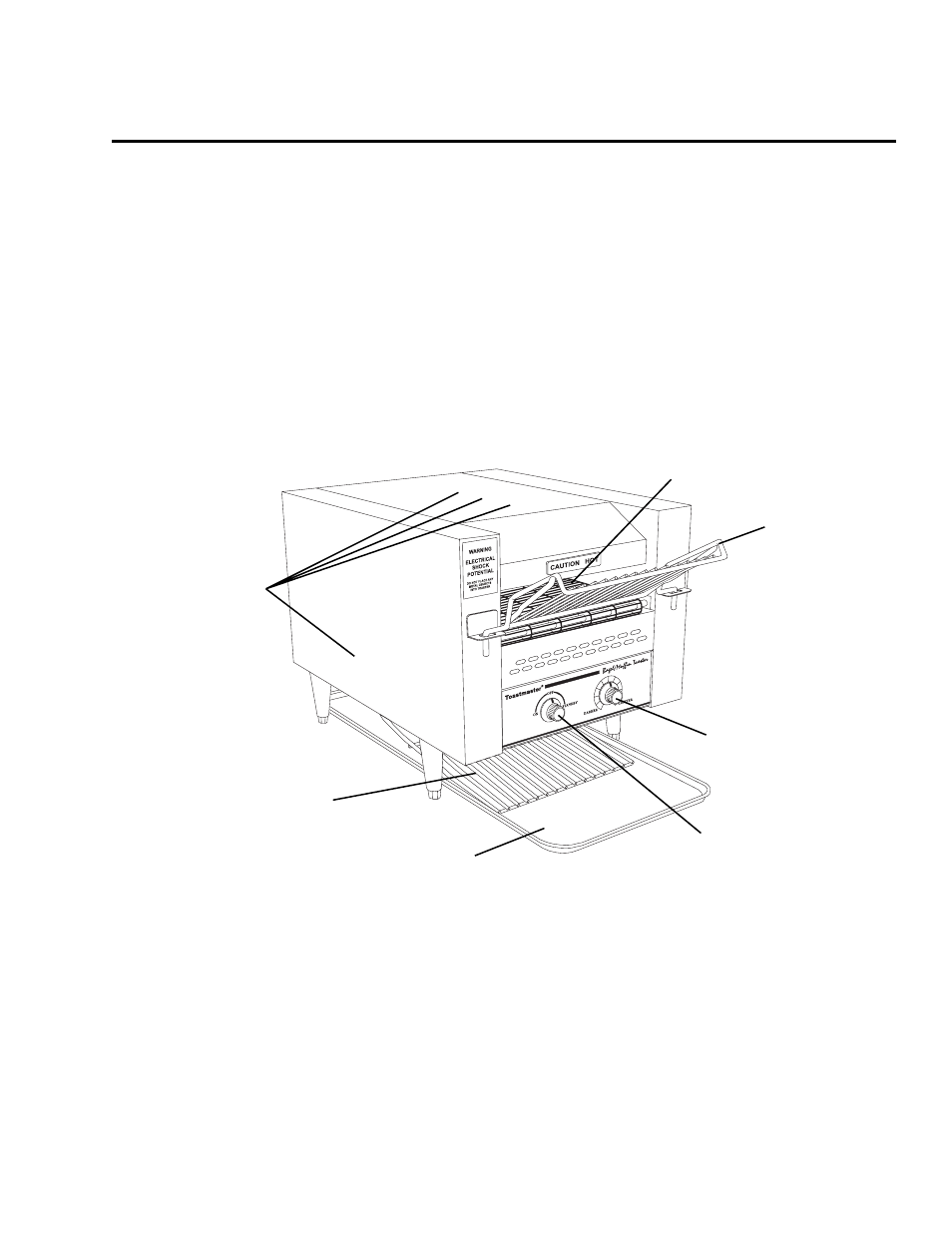

Figure 1-1

Component location

SECTION 1

DESCRIPTION

A. FEATURES

Toastmaster™ Model TB208, TB240, TW208, and

TW240 Toasters are:
•

Conveyor toasters.

•

Equipped with an entry rack used to deliver the food

product into the toaster.

•

Equipped with an internal slide-out crumb tray

•

Equipped with an exit rack and a return crumb tray.

•

Equipped with a “Standby” mode that saves energy

during slow periods and allows a quick return to

normal operation.

B. COMPONENT LOCATION

The major components of the toaster are shown in Figure

1-1 below.

C. COMPONENT FUNCTION

(see Figure 1-1)

1. ON/OFF/STANDBY knob - see Section 3, Operation.

2. DARKER/LIGHTER knob - see Section 3, Operation.

3. Entry rack - Loaded with the product to be toasted.

The product then slides onto the conveyor. The entry

rack can be removed for cleaning.

4. Conveyor - Transports the product through the

toaster, and between the top and bottom heating

elements. The conveyor is driven by its own motor.

3. Entry rack

4. Conveyor

5. Heating elements

(inside toaster)

7. Return crumb tray

6. Exit rack

1. ON/OFF/STANDBY knob

2. DARKER/LIGHTER knob

5. Heating elements - Toast the food product. Three

elements are located above the conveyor, while one

is located below it.

6. Exit rack - Receives the toasted product as it leaves

the conveyor, then delivers the product underneath

the front of the toaster. The exit rack can be removed

for cleaning.

7. Return crumb tray - Collects crumbs from the toasted

product. The tray can be removed for cleaning.
