Tandberg Data Setting Up
_____________________________________________________________
2-9 Tandberg Viking FS-1600 Series NAS Hardware User Manual

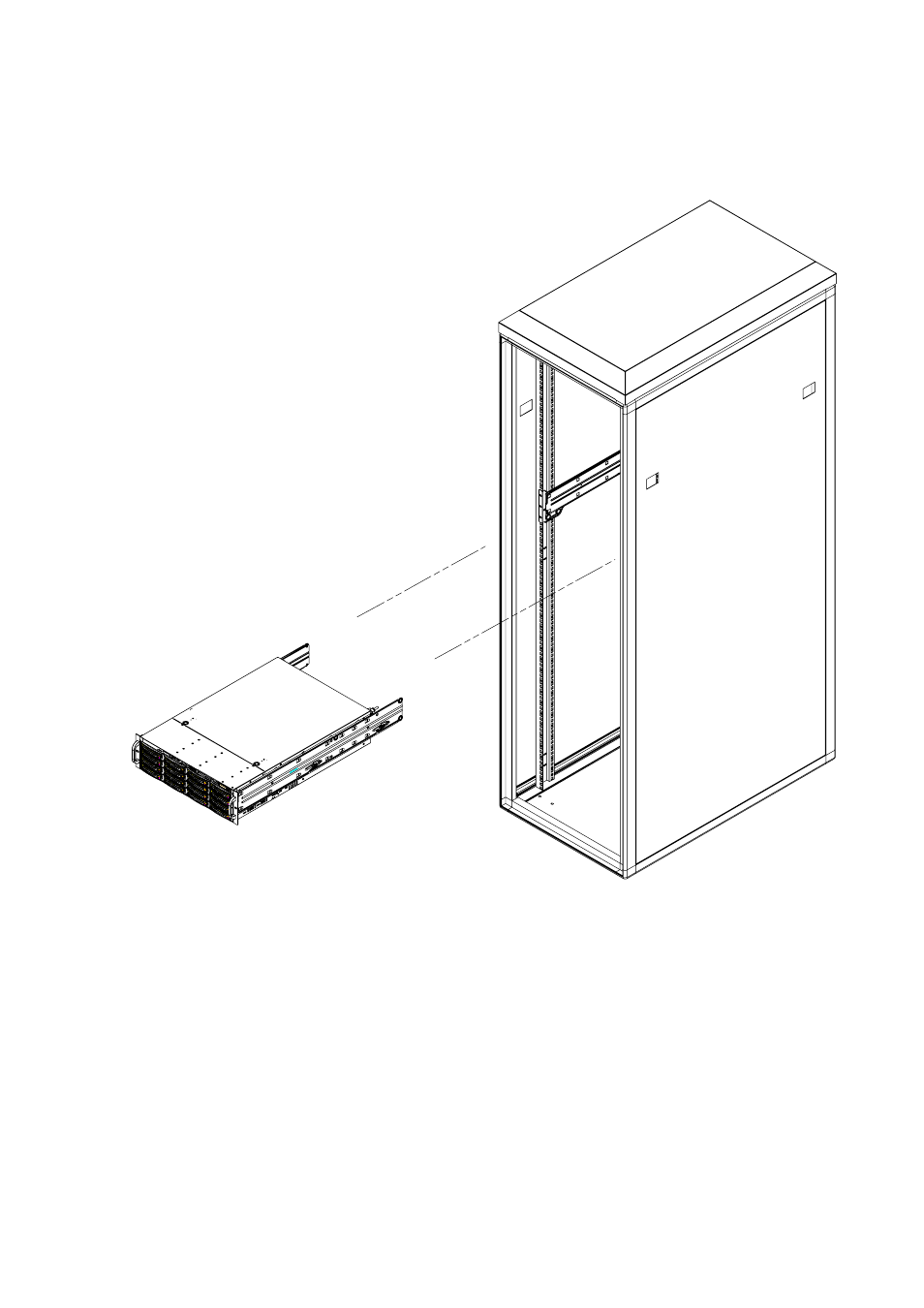

10. Once the rail assemblies are securely installed on the rack, align the
FS-1600 Series inner rails with the grooves of the outer rail
assemblies on the rack. Gently push the FS-1600 Series chassis
inward till it fit nicely into the rack.
11. Secure the FS-1600 Series to the rack by tightening the screws on
the front sides of the FS-1600 Series chassis.
2.4. Connecting Cables
Peripherals such as monitor, keyboard and mouse can be connected to the
FS-1600 Series NAS appliance for direct administration. It is recommended
to connect them when powering the appliance for the first time to ensure that
hardware is functioning properly.
1. Connect the VGA monitor cable into the monitor/VGA port located
on the rear panel of the FS-1600 Series NAS appliance.
