1-6 Tandberg Viking FS-1600 Series NAS Hardware User Manual

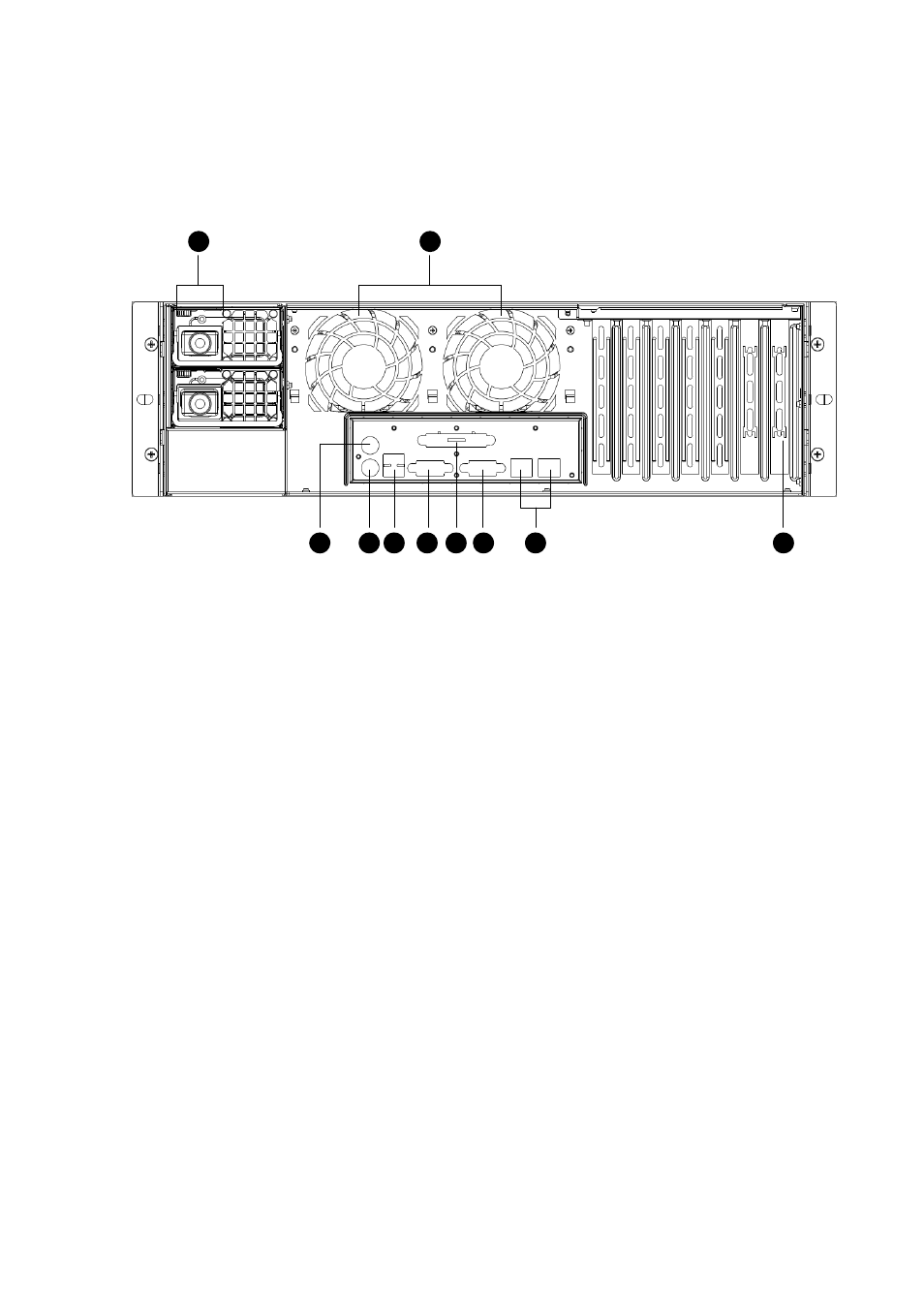

1.5. Rear Panel
1 2
3 4 5 6 7 8 9 10
1. Fan
Cools the FS-1600 Series. Blocking the ventilation may result in
overheating.
2. Power supply connector
Plug the power cord to into this connector.
3. HD-68 pin Ultra320 SCSI connector
Connector for external SCSI device.
4. PS/2 mouse connector
Connector for PS/2 mouse device.
5. PS/2 keyboard connector
Connector for PS/2 keyboard device.
6. USB connectors
Connectors for USB devices.
7. RS232 serial connector
Connector for UPS for other serial port device.
8. Parallel connector
Connector for printing device.
9. VGA console connector
Connector for a console monitor.
10. LAN connectors (LAN1 & LAN2)
RJ45 connectors for 10/100/1000 Base-T/X networks.
