Advanced Data Sheet: Veta  iHA48060A012V*, 1.2V/60A Output Half Brick
Series
©2007 TDK Innoveta Inc.
iHA Datasheet 040207
' (877) 498-0099
9/16
Electrical Characteristics (continued):
1
10
100
1000
0.65 0.70 0.75 0.80 0.85 0.90 0.95 1.00 1.05 1.10 1.15 1.20
Desired Decreased Output Voltage (V)
Trim Resistance (k
Ω
)
0.01
0.10
1.00
10.00
1.20 1.22 1.24 1.26 1.28 1.30 1.32
Desired Increased Output Voltage (V)
Trim Resistance (k
Ω
)

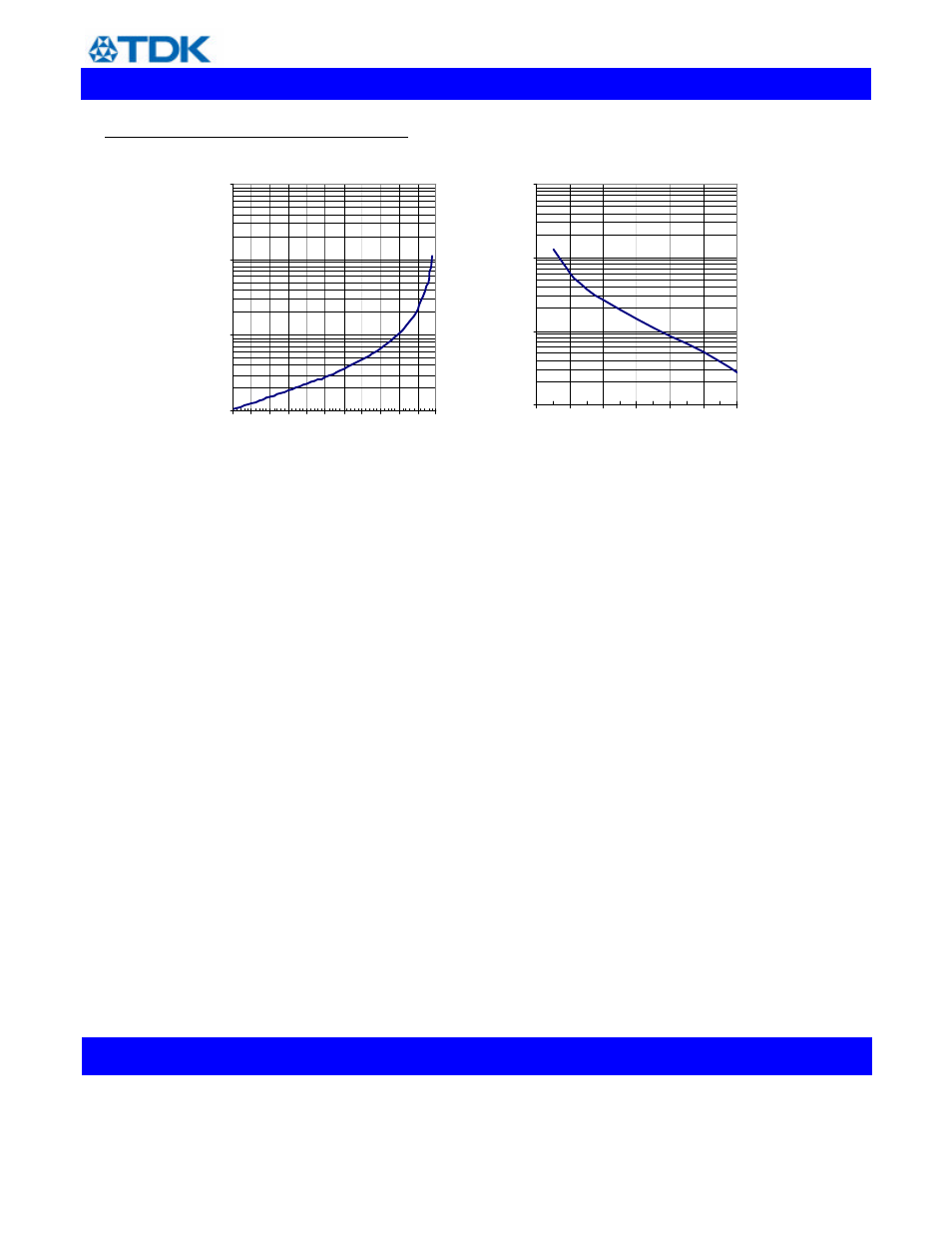

iHA48060A012V-001 Trim down curve for output
voltage adjustment iHA48060A012V-001 Trim up curve for output voltage
adjustment
