Advanced Data Sheet: Veta  iHA48060A012V*, 1.2V/60A Output Half Brick
Series
©2007 TDK Innoveta Inc.
iHA Datasheet 040207
' (877) 498-0099
2/16

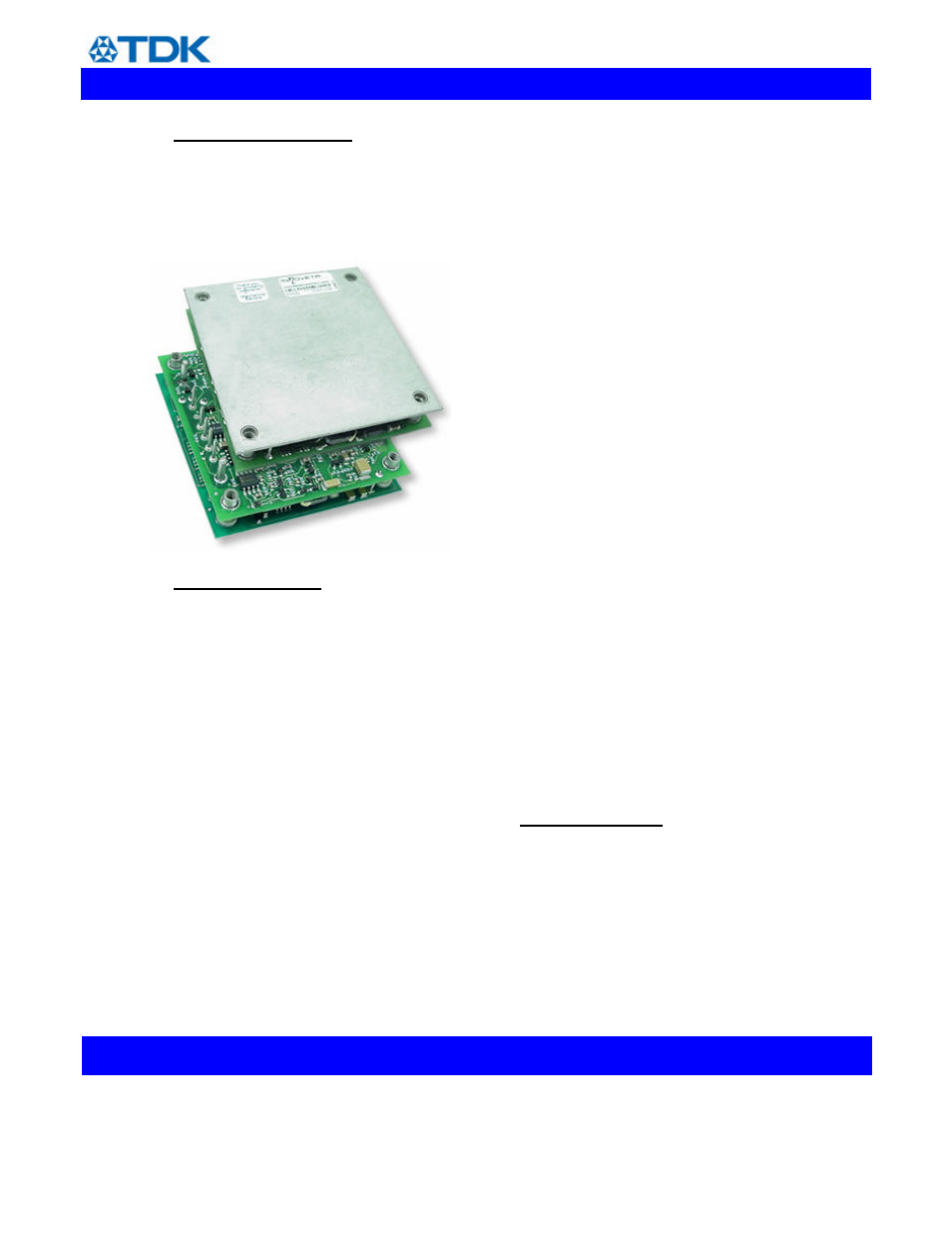

Platform Overview:
Veta

iHA48 Series DC-DC Power Modules
48V Input, 1.2-28V/60A or 350W Output
Half-Brick
The Veta

iHA48 Series power modules operate
over a wide 36 – 75Vdc input voltage range and
provide one regulated dc output voltage that is
electrically isolated from the input. Its high
efficiency and superior thermal performance make
the Veta

Family of power modules ideally suited
for power-hungry applications in demanding
thermal environments. This rugged building block
is designed to serve as the core of your high
reliability system. A wide output voltage trim range
and remote sensing are standard features
enhancing versatility.
Standard Features:
•
Standard Half Brick footprint
•
High efficiency, 83-93.5%
typical
•
Wide output trim voltage
•
Up to 60A of true usable current
•
Industry-leading output power:
up to 350W
•
Monotonic start-up
•
Monotonic start-up into a pre-
biased output
•
Basic insulation – 1500 Vdc
•
Constant switching frequency
•
Auto-recovery protection:
o
Input under and over
voltage
o Current limit
o Short circuit
o Thermal limit
•
Latched output over voltage
protection
•
High reliability open frame,
surface-mount construction
•
Baseplate for improved thermal
management
•
UL 60950 (US and Canada),
VDE 0805, CB scheme
(IEC950), CE Mark (EN60950)
•
Multiple patents pending
Optional Features:
•
Remote on/off (negative logic)
•
Auto-recovery output over
voltage protection
•
Short Thru-hole pins 2.79 mm
(0.110”)
