Page 11: User’s guide

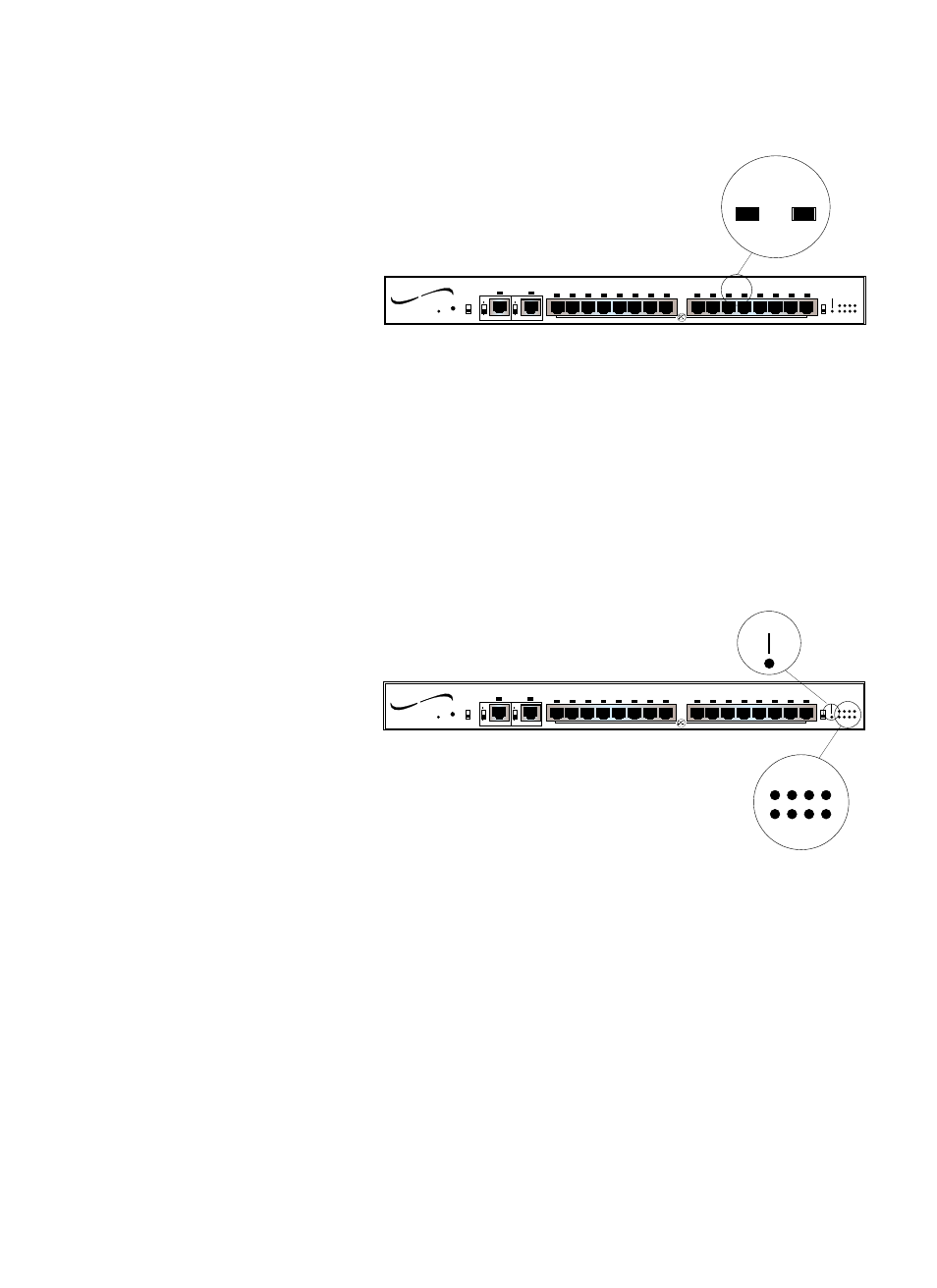

Port Status LEDs
Port Status LEDs above each of the sixteen (16) RJ-45 lobe port
connectors indicate insertion status for each of the sixteen connections:
green LED:
good insertion
NOTE: Illuminated LEDs indicate insertion EXCEPT when a wrong speed
station is plugged into the hub; when a wrong speed station is plugged
into the hub, the iluminated LED indicates only that the connecting cable
is good.
Management Board LEDs
When the SNMP Management circuit board is installed and managing the
StackMaster™TR 16-Port Stack, the SNMP Management circuit board
indicators are active. The Enable indicator is illuminated when the SNMP
Management circuit board is installed. The eight Management Status
indicators cycle in a steady roll when the StackMaster™TR 16-Port Stack
is functioning normally.
1
1.. IIN
NT
TR
RO
OD
DU
UC
CT
TIIO
ON
N
USER’S GUIDE
1-5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Lobe Ports
Active Retiming Managed Hub
Insert
Normal
Power
Ring Out
4 Mbps
P
A
16 Mbps
Reset
™
16 Port StackMaster TR
ZDL
OFF
ON
1 2 3
4
5 6 7 8
Expansion Card
Indicators
Enable
Status
Ring In
P
A
n e t w o r k s
T R A N S I T I O N
11
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Lobe Ports
Active Retiming Managed Hub
Insert
Normal
Power
Ring Out
4 Mbps
P
A
16 Mbps
Reset
™
16 Port StackMaster TR
ZDL
OFF
ON
1 2 3
4
5 6 7 8
Expansion Card
Indicators
Enable
Status
Ring In
P
A
n e t w o r k s
T R A N S I T I O N
Enable
1 2 3 4
5 6 7 8
Status
