Preparations
(11)
(5)
(6)
(12)
(8)
(7)
(10)
(9)
(13)
(8)
(4)
(2)
(3)
(1)
Name : Function
(1) Camera head : Document camera.
(2) Camera lens : Shooting lens for the document camera.
(3) Focus ring : Adjusts the focus.
(4) Camera arm : Adjusts the shooting angle. p.36
(5) CAMERA GAIN buttons : Adjusts the camera gain. p.37
(6) CAMERA button : Toggles between the camera input and previous input. p.36
(7) Tip resistant bar : Pulled out when a camera is used separated from the
projector.
(8) Stay mounting holes : Aligns with the projector's stay.
(9) Camera output terminal
(CAMERA OUT) : Connected to the accessory camera cable when a
camera is used separated from the projector.
(10) Lock bar : Locked to the projector.
(11) Connector : Camera signal is output.
(12) Connect lever : Connector is connected to the projector.
(13) Lock lever : Used when the camera is disconnected from the
projector.

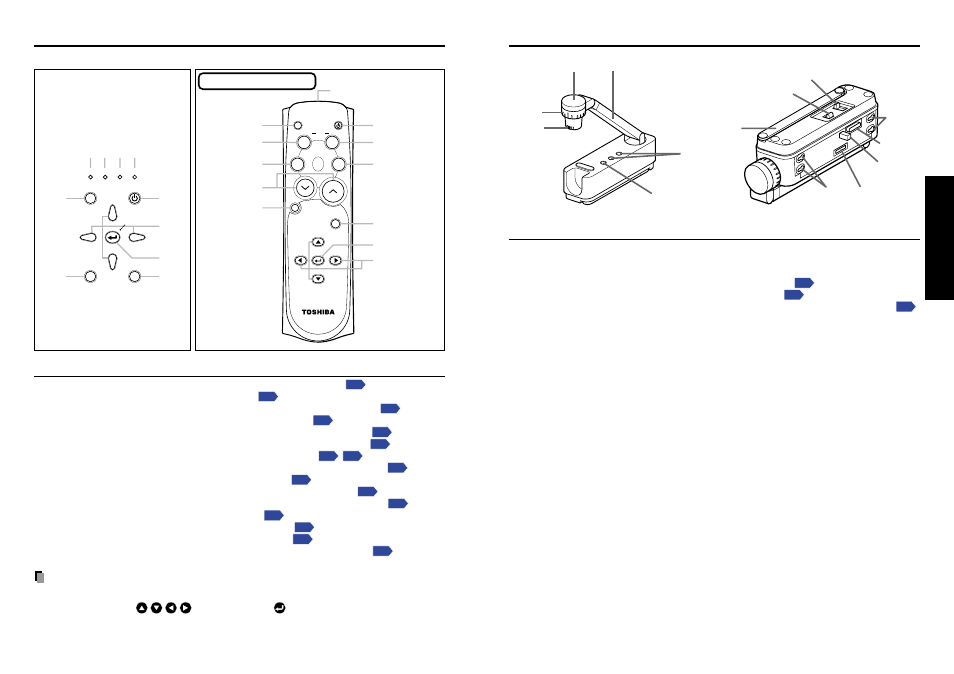

Names of each part on the document camera
(models with a document camera)
Names of each part on the control panel and remote control
Control panel
FAN TEMP LAMP ON
VOL. + VOL. -
(1) (2)
(3) (4)
(5)
(6)
(7) (8) (9) (10)
ON / STANDBY
ZOOM +
ZOOM -
INPUT
MENU
AUTO SET
AUTO
KEYSTONE
INPUT
ON/
STANDBY
CANCEL
CALL
AUTO
MUTE
RESIZE
FREEZE
SET KEYSTONE
MENU VOL. + VOL. -
ZOOM +
ZOOM -
(1)
(2)
(3) (4)
(5)
(6)
(12)
(13)
(14)
(11)
(15)
Remote control transmitter
Remote Control
Notes
• For the remainder of this manual, buttons are referred to as follows:
Selection buttons ⇒ ; MENU button ⇒
• For further information of the mouse remote control supplied with the TLP-T60M, TLP-
T61M, TLP-T70M, TLP-T71M, see the Owner’s Manual of the Mouse Remote Control.
CLASS 1 LED PRODUCT
Name : Main Function
(1) ON/STANDBY button : Turns the power on/off (standby). p.22
(2) INPUT button : Selects input. p.24
(3) AUTO KEYSTONE button : Adjusts keystone (trapezoidal distortion). p.27
(4) AUTO SET button : Sets up image and mode. p.26
(5) MENU button : Displays menus and makes selections. p.31
(6) Selection buttons : Menu selections and adjustments, etc. p.31
(7) FAN indicator : Displays cooling fan mode. p.23 p.42
(8) TEMP indicator : Lights when internal temperature too high. p.42
(9) LAMP indicator : Displays lamp mode. p.23
(10) ON indicator : Displays whether power is on or off. p.22
(11) MUTE button : Cuts off the picture and sound temporarily. p.28
(12) FREEZE button : Pauses image. p.28
(13) RESIZE buttons : Enlarges picture size. p.29
(14) CANCEL button : Exiting the operation. p.30
(15) CALL button : Displays the information on the screen. p.30
