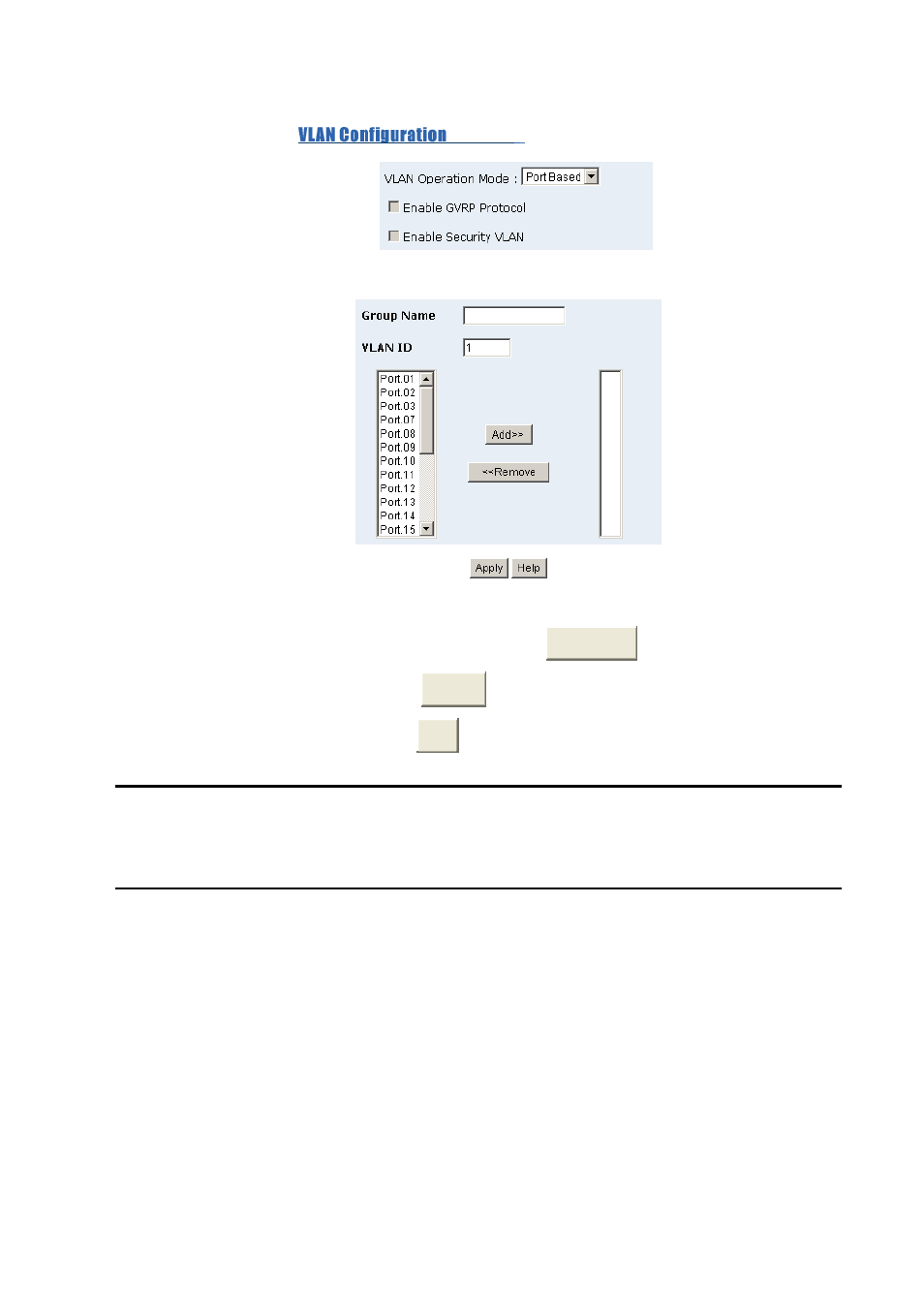

The VLAN groups will be displayed in table

To view the VLAN groups in next page, press

to the next page

To delete VLAN groups, press

Delete

button

To modify VLAN groups, click

Edit

button

[Note] If the trunk groups have been configured, the trunk groups will list in the port list

(For example: Trunk1, Trunk2…). The trunk group also can be configured as the VLAN

member.

802.1Q VLAN

Tagged-based VLAN is an IEEE 802.1Q specification standard. Therefore, it is

possible to create a VLAN across devices from different switch venders. IEEE 802.1Q

VLAN uses a technique to insert a “tag” into the Ethernet frames. Tag contains a VLAN

Identifier (VID) that indicates the VLAN numbers.
