2

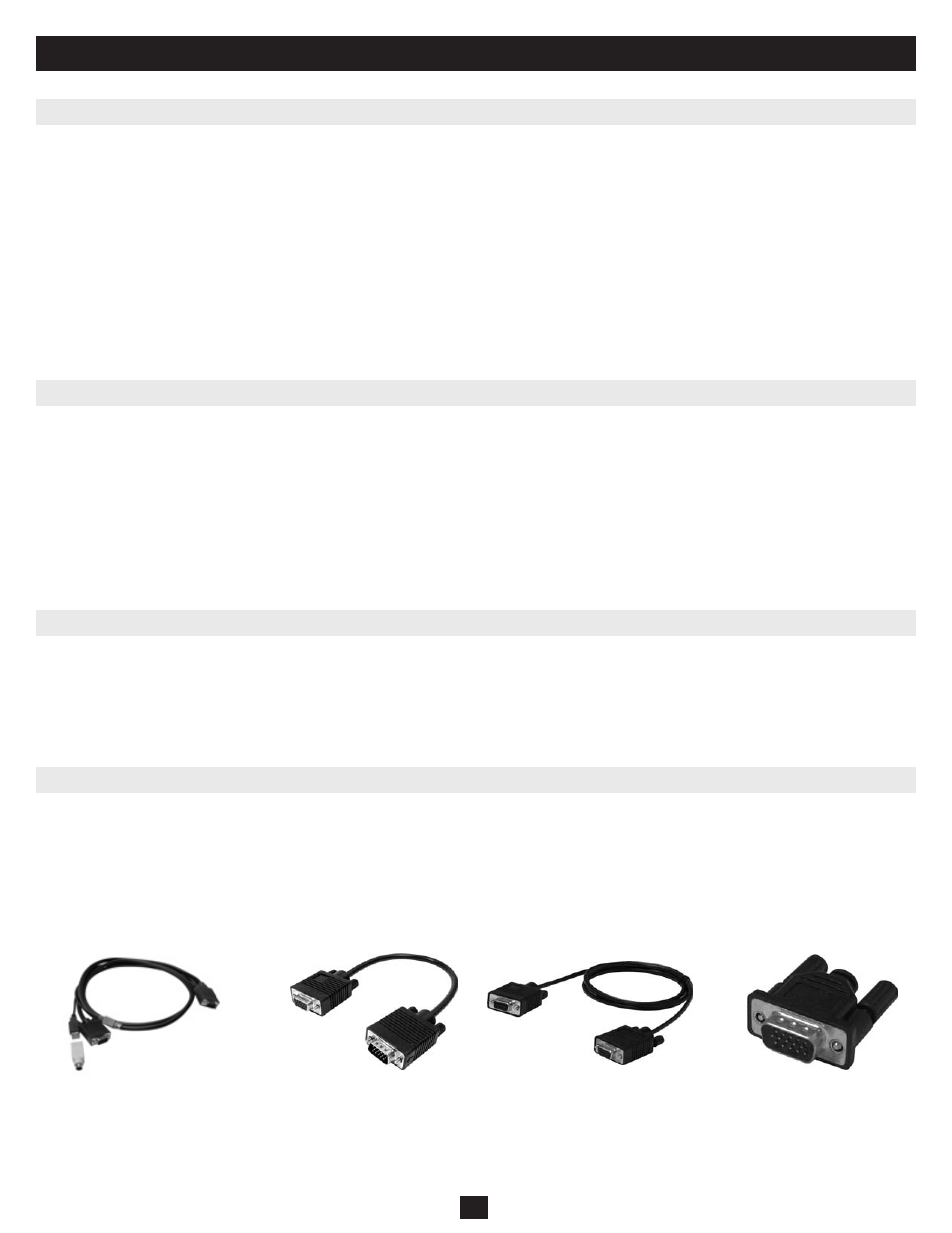

P780-Series USB PS/2 KVM
Cable Kit —Not Included
8-in Daisy-Chain Cable—Included 4-ft Firmware Upgrade Cable—Included Daisy-Chain Terminator*—
Included
1. Features
1.1 General Features
1.2 Package Contents
1.3 Hardware/Software Support
1.4 Cabling Requirements
• Connect up to 128* computers by daisy-chaining up to 8 levels of B042-Series KVM Switches
• Allows for easy customization of ports by daisy-chaining any combination of B042-Series KVMs
• Standard 19” rackmount size
• OSD menu for intuitive operation and easy control
• USB and PS/2 keyboard and mouse support on both console and PC side
• Supports video resolution up to 2048 x 1536
• Password protection and auto-logout features
• Firmware upgradeable
• Robust metal case design ensures best EMI shielding and video quality
• Hot-swappable: disconnect and reconnect USB computers without rebooting
* Daisy-chain (8) B042-016 KVMs to connect to 128 computers.
• (1) B042-004, B042-008 or B042-016 KVM Switch
• (1) 8-in. Daisy-Chain Cable—HD15 (M) to HD15 (F)
• (1) Daisy-Chain Terminator—HD15 (M)
• (1) 4-ft. Firmware Upgrade Cable—HD15 (F) to DB9 (F)
• (1) Power Adapter (AC to DC 9V, 1A)
• (1) Rackmount Hardware Kit
• (1) Owner’s Manual CD
• (1) Quick Start Guide
• Supports standard 5-button Microsoft ® , Logitech ® or comparable Mice
• Supports standard Microsoft, Logitech and comparable keyboards
• Supports a wide range of software platforms: Macintosh
® , DOS, Windows 95/98/SE/NT/2000/ME/XP/Server2003/Vista, Unix
®
, Linux and BSD
• Supports video graphic dimensions up to 2048 x 1536 pixels
• Supports a monitor refresh rate of 75Hz depending on the resolution set
• Tripp Lite P780-Series USB PS/2 KVM Cable Kit—HD15 (M) to HD15 (M), MiniDIN6 (M), USB A (M) and USB A (F) to MiniDIN6 (M) Adapter.
Available in 6-ft., 10-ft. and 15-ft. lengths. Not included.
• Daisy-Chain Cable—HD15 (M) to HD15 (F). Included, or Tripp Lite P781-series cables (optional).
• Daisy-Chain Terminator*—HD15 (F). Included.
• Firmware Upgrade Cable—HD15 (F) to DB9 (M). Included.
• AC Adapter Power Cord. Included.
* Required on the Daisy-Chain Out Port of the last KVM in a daisy-chain. Not required when using an individual B042-Series KVM Switch.
