Hardware Overview

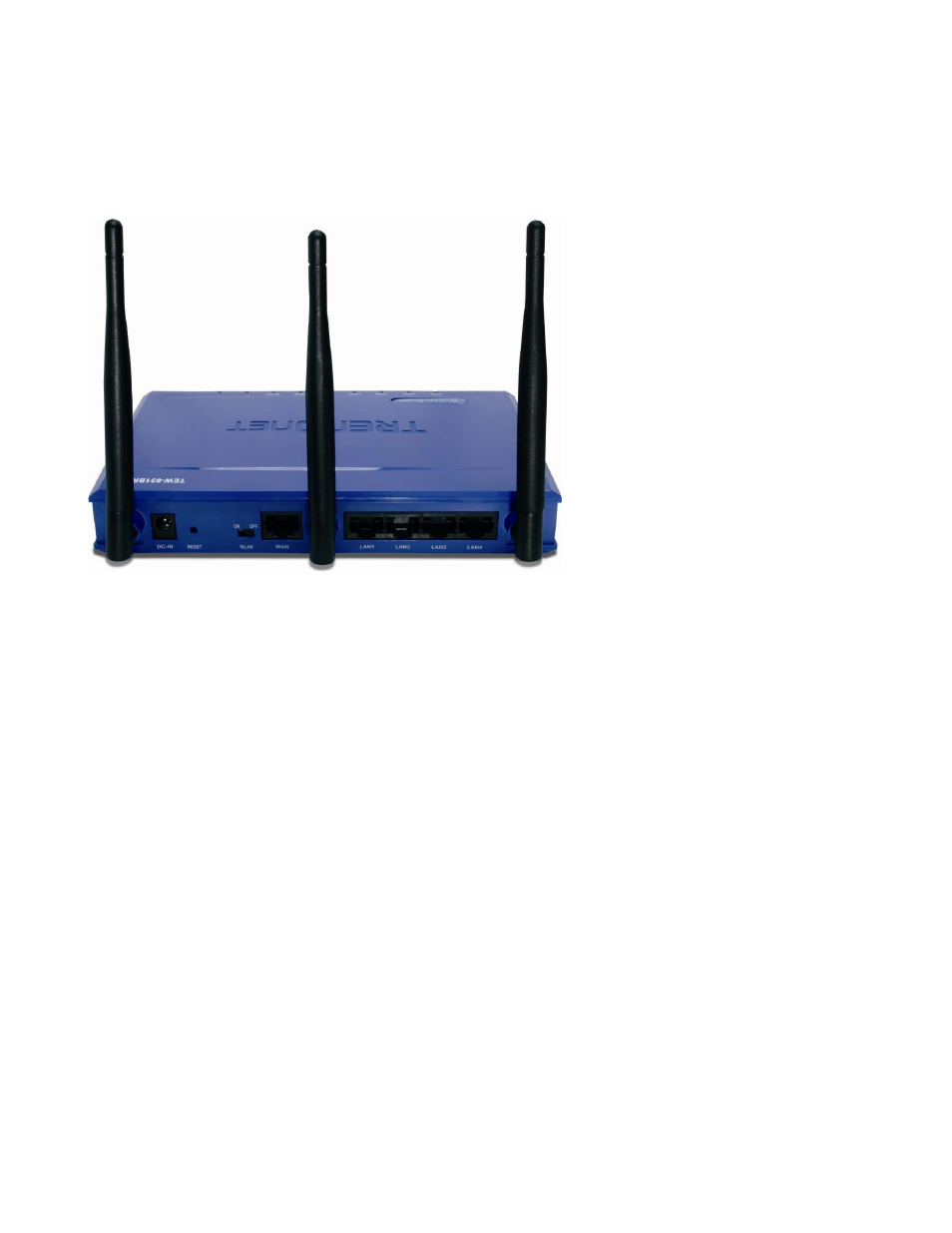

Real Panel
DC-IN
The DC power input connector is a single jack socket to supply power to the TEW-631BRP.
Please use the Power Adapter provided on the TEW-631BRP package.
Reset Button
Pressing the reset button restores the router to its original factory default settings.
WLAN Slide Switch
To turn wireless function ON/OFF
Auto MDI/MDIX WAN Port
This is the connection for the Ethernet cable to the Cable or DSL modem
Auto MDI/MDIX LAN Ports
These ports automatically sense the cable type when connecting to Ethernet-enabled computers.
