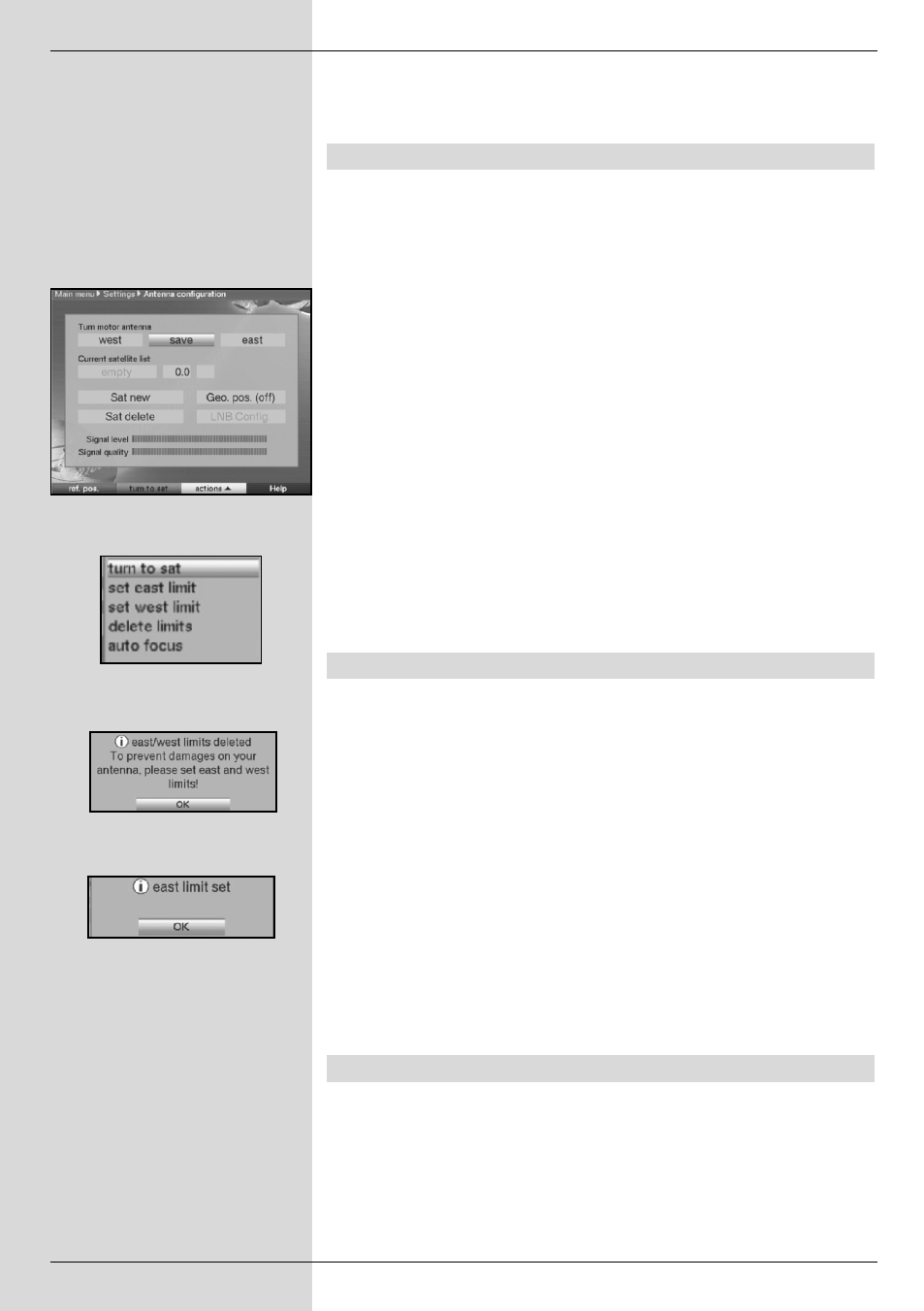

Page 56

If there are no obstructions in the rotating radius of the dish, set the

limits so the dish can be rotated a little beyond what is required for

the outermost satellite you wish to receive.

9.1.1 Deleting existing limits

First you should delete any limit values that may have been stored.

Use the arrow keys left/right to mark the column LNC

Test

Now use the arrow keys up/down in the line Rotating

antenna, and mark the field Continue.

Confirm by pressing OK.

The menu used for setting the rotating antenna will now be

displayed. (Fig. 9-4)

Press the yellow function key Actions to open an

additional window. (Fig. 9-5)

Now use the arrow keys up/down to mark the line

Delete limits.

Confirm by pressing OK to accept the action selected to the

green function key.

To delete the limits set,press the green function key Delete

limits.

Confirm the prompt displayed (Fig. 9-6) by pressing OK.

9.1.2 Setting the Eastern limit

To enter the Eastern limit, first use the arrow keys to mark

the field Save.

Now use the arrow key right to turn the dish to the

maximum possible, resp. the maximum desired East

position.

Press the yellow function key Actions to open a window

with the available actions.

Now use the arrow keys up/down to mark the line Set

East limit.

Confirm by pressing OK.

To set the easterly limit, press the green function key (East

limit) and confirm the following screen prompt (Fig. 9-7) by

pressing OK.

9.1.3 Setting the Western limit

To enter the Western limit, first use the arrow keys to mark

the field Save.

Now use the arrow key left to turn the dish to the

maximum possible, resp. the maximum desired West

position.

Press the yellow function key Actions to open a window

(Fig. 9-6)

(Fig. 9-7)

(Fig. 9-4)

(Fig. 9-5)
