TASCAM 302MKII
19
Tape :
Compact cassette tape C-30/60/90
(Normal/High Position/Metal)
Track Format :
4-track, 2-channel
Head Configuration :
4-track, 2-channel ;
Record/repro combination rotary head
(DECK 1 x1, DECK 2 x1, permally)
Erase head (DECK 1 x1, DECK 2 x1, ferrite)
Motor :
DC servo capstan motor (DECK 1 x1,
DECK 2 x1)
DC reel motor (DECK 1 x1, DECK 2 x1)
Tape Speed :
4.76 cm/sec (1.87 ips) or 9.5 cm/sec
(3.74 ips) at HIGH SPEED dubbing
Pitch Control :
approx. +/– 10 %
Line Input - RCA jack
Nominal Input Level :
–10 dBV (0.3V)
Minimum Input Level :
–18 dBV (0.1V)
Input Impedance :
24k ohms
Line Output - RCA jack
Nominal Output Level :
–5 dBV (0.6V)
Output Impedance :
1.5k ohms
Cascade Output - RCA jack
Nominal Output Level :
–10 dBV (0.3V)
Output Impedance :
100 ohms
Headphone Output - 1/4" jack
Output Power :
7 mW max./32 ohms
Bias/Erase Frequency :
100 kHz
Repro Equalization :
3180 µs + 70 µs (High Position/Metal)
3180 µs + 120 µs (Normal)
Reference Record Level :
250 nWb/m = 0 VU (315 Hz) (JEITA)
EXT CONTROL :
3.5 mm mini jack
REMOTE IN (FROM RC-322A) :
2.5 mm mini-mini
jack
Power Requirements :
USA/Canada/General Export Model :
120/230 V AC (50-60 Hz), switchable
U.K./Europe :
230 V AC (50 Hz)
Australia :
240 V AC (50 Hz)
Consumption :
33 Watts
Dimensions :
( See drawings below)
Weight :
7.8 kg (17.19 lbs)
Typical Performance
Speed Accuracy :
Less than +/–3.0%
Wow and Flutter :
Less than 0.15% WRMS
Fast Winding Time :
120 sec. (approx.) with C-60 cassette
Frequency Response, Overall (JEITA, without NR) :
63 Hz to 18 kHz, +/–3 dB (Metal)
63 Hz to 16 kHz, +/– 3 dB (High Position)
63 Hz to 16 kHz, +/–3 dB (Normal)
Distortion :
Less than 2.5%, at 1kHz,
l60 nWb/m (Metal)
Signal-to-Noise Ratio :
59 dB (without NR, ref. 3% THD, WTD) (Meta])
69 dB (with Dolby-B NR, CCIR ARM) Noise level
79 dB (with Dolby-C NR, CCIR ARM) Noise level
Channel Separation :
Better than 30 dB (at 1 kHz)
Erase Ratio :
Better than 65 dB (at 1 kHz)
«
Specifications and features subject to change
without notice or obligation.
Specifications

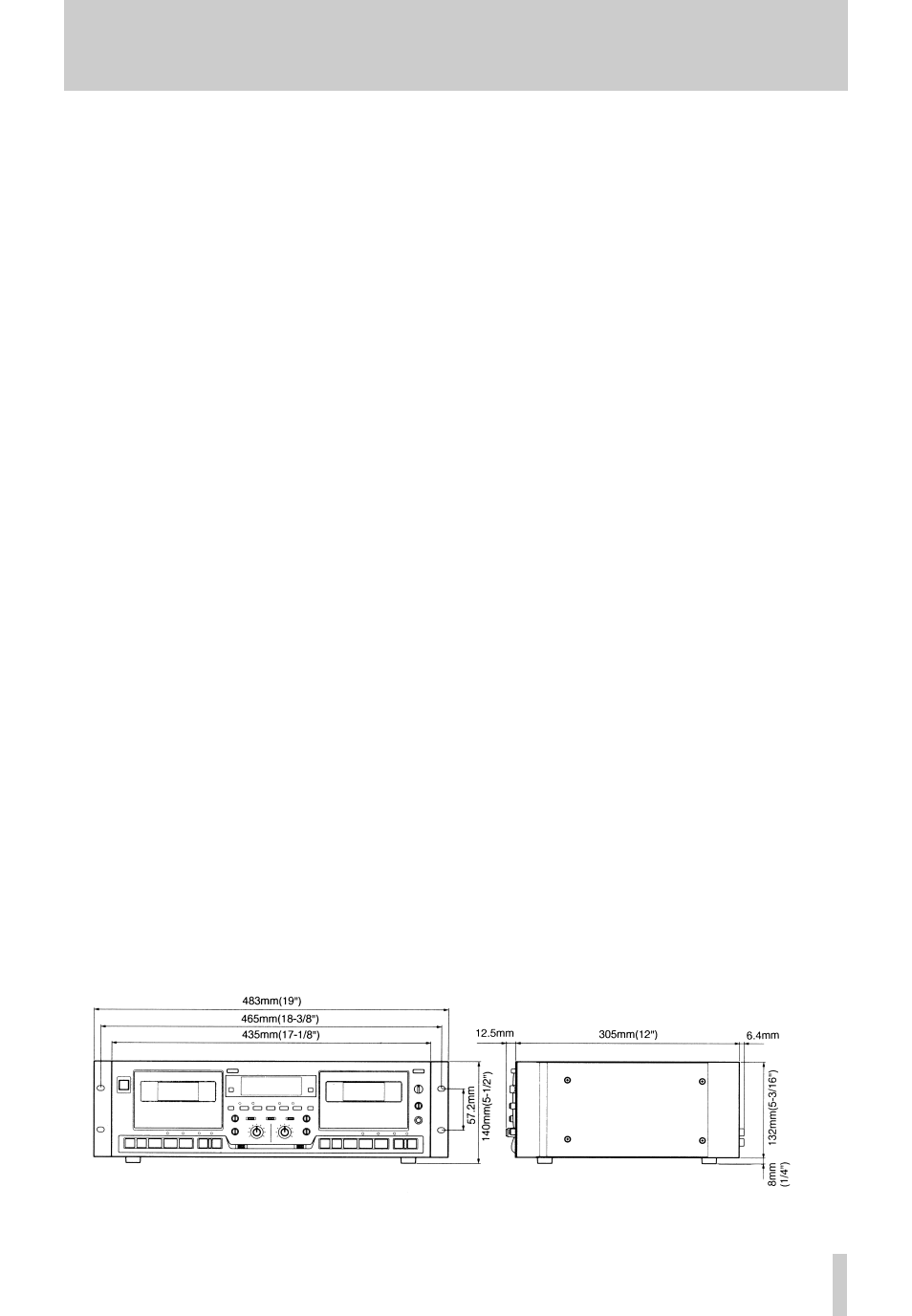

Dimensional Drawings
