Connections and initial set up
9
EN EN
DTH 8000
Satellite receiver
TV set
Satellite or cable receiver
IR controller cell
G-LINK CABLE - Adjusting your DTH 8000’s IR (infrared) controller cell
You need to find the correct positioning of the IR controller cell in relation to the front of the
satellite or cable receiver so that your DTH 8000 can transmit the commands as you would do
with the satellite receiver’s remote control.The IR (infrared) controller cell must face the receiver
cell of the satellite receiver.You can locate the receiver cell of the satellite receiver by bringing its
remote control as close as possible to the front of the device and trying to change channels.
Move the remote control one centimetre and try again.When the channel of the satellite receiver
changes, locate the position on the front of the unit.Then install the IR controller cell as shown
on the diagram below, facing the cell of the satellite receiver (1 or 2 cm away). If need be, use the
adhesive supplied to stick the cell in place.
Satellite or cable receiver
Your DTH 8000 is designed to control either a cable or satellite receiver, this enables you to
program the recording of satellite programmes simply by programming your DTH 8000.
In this case, the device must be connected to the AV2 and IR SAT/CABL connections of the DTH 8000.

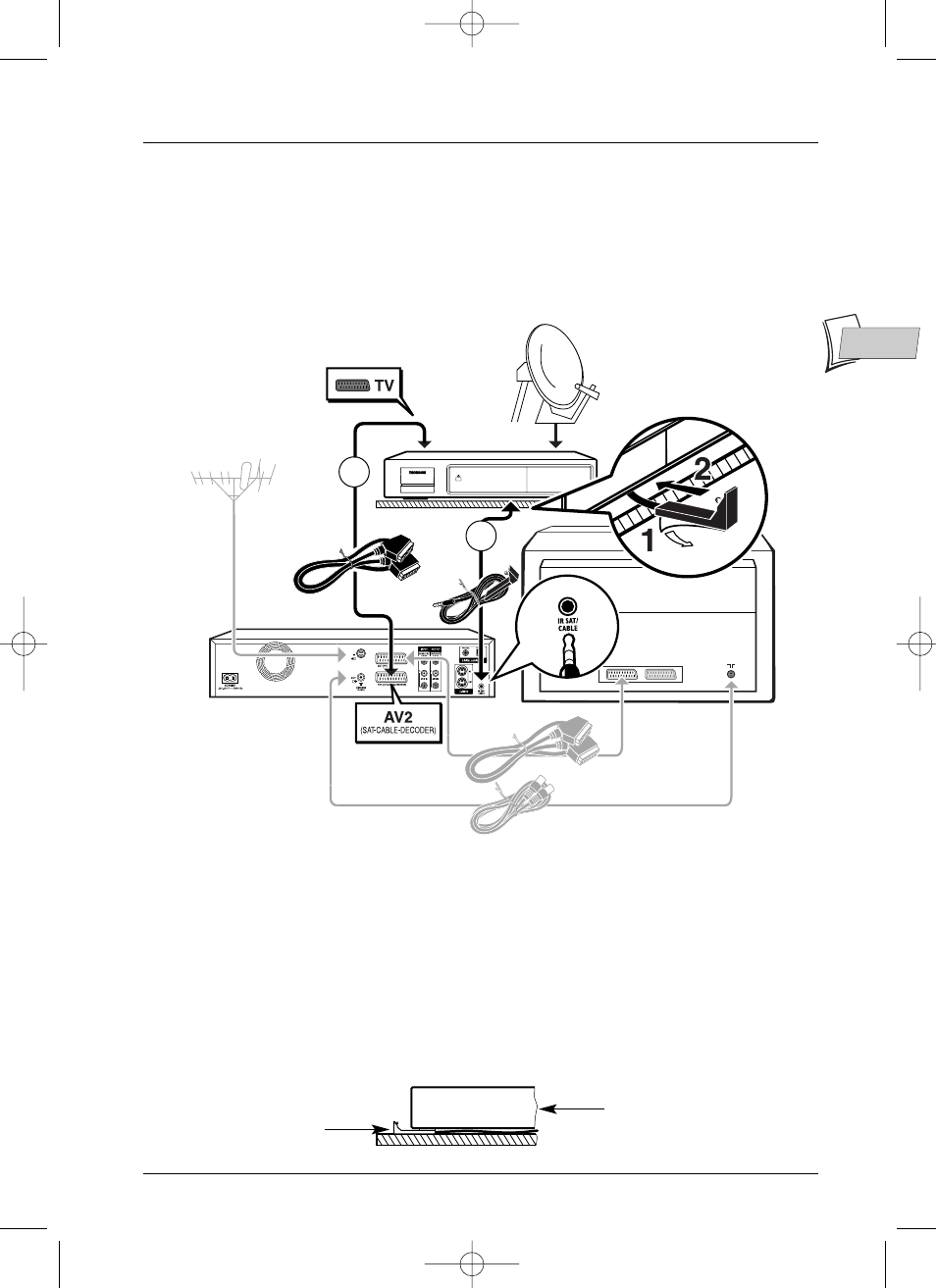

Connect cables (5) (not supplied) and cable (6) the G-LINK cable (supplied) as shown below.
Note: In grey: connections already carried out (connections from page3),
In black: new connections.
5
6
