Connections and initial set up
11
EN EN

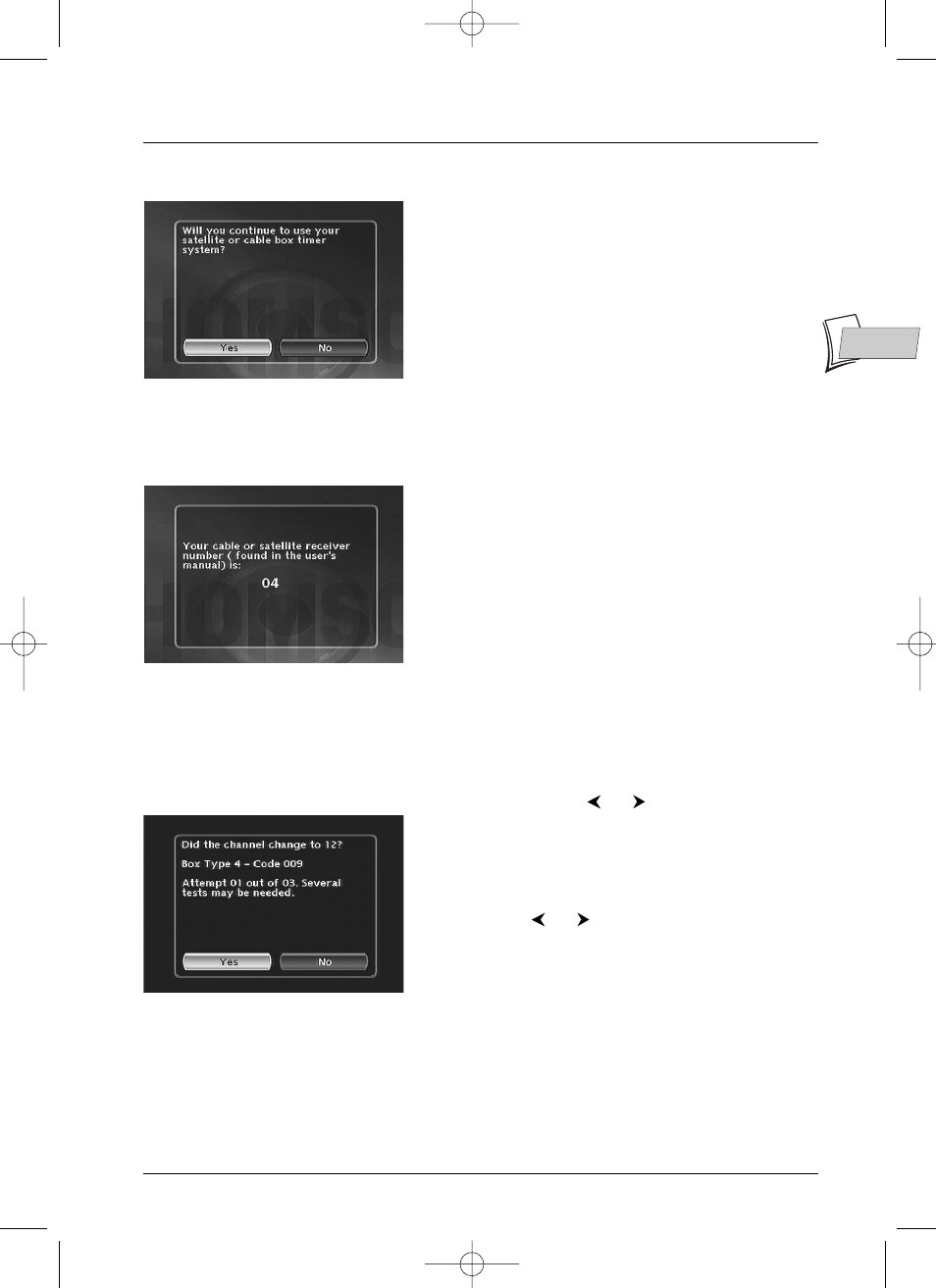

10. Deactivating the programming of the satellite or cable receiver
Yes is selected to deactivate the programmer. In that case,
all your satellite recordings will have to be programmed
from your satellite or cable receiver (this is the
recommended setting). Leave Yes selected and press
OK .
11. IR controller connection
Refer to the diagram on page 9, follow the instructions on the screen and press OK .
12. Enter the receiver code
Now key in your receiver’s satellite code number (refer
to the table on the next page), then press
OK to validate.
If the brand or model of your satellite or cable receiver is
not shown, try other numbers in the list displayed. If
unsuccessful, contact your retailer.
Note: your DTH 8000 asks you to display channel 2 on the
satellite receiver. However, with some receivers, it is preferable to
display channel 0, 02 or 002.
13. Press OK to start the test
The DTH 8000 sends a signal to your satellite receiver via the infrared controller cell.
A configuration menu will appear as the satellite receiver positions itself on channel 12 (check
that channel number 12 appears on the display panel of the satellite receiver, sometimes fleetingly,
and even if no picture is visible on the TV screen).
If the satellite receiver is not on channel 12, select No with the or keys and press OK .
Your DTH 8000 sends a new command to the satellite
receiver. (Several tests are possible, depending on the
brand of your satellite receiver).
If the satellite receiver goes on to channel 12, select
Yes with the
or keys and press OK . If
unsuccessful, repeat the settings, starting at step 11 , but
with the satellite receiver positioned on channel 0, 02
or 002 instead of 2.
A channel sorting window will appear. The picture of the selected channel is shown in the
background. Refer to page 6 to sort the stored channels or set the time on your DTH 8000 if
necessary.
Your DTH 8000 is now ready to control your satellite receiver to program recordings.
