MIL-BOOK™
OPERATORS MANUAL
- 2-7 -

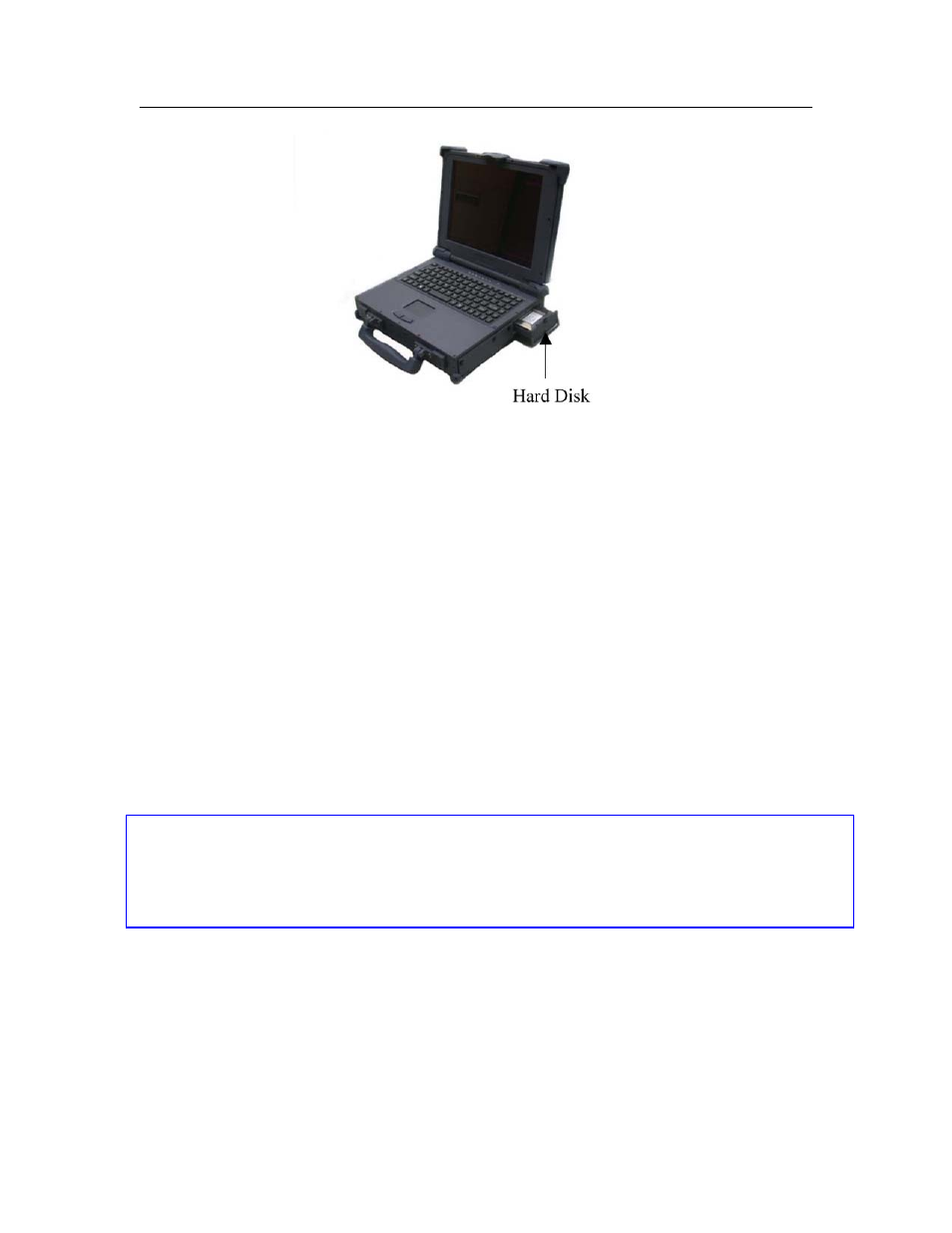

Figure 2-8 Removing a Hard Disk Drive Module
2.3.8 IEEE 1394
The MIL-BOOK 1000 provides a standard IEEE 1394 Fire Wire port for high-
speed connections. The “High Speed Serial Bus” is located on the right side
panel, next to the audio jacks.
• IEEE 1394-1995 Compliant and Compatible with Proposal 1394A
• 3.3V Core Logic with Universal PCI Interface Compatible With 3.3V and 5V
PCI Signaling Environments Compliant to Latest PCI Specification ,PCI 2.2
• PCI Power Management Compliant c
• Cable Power Presence Monitoring
• Low Cost 24.576MHz Crystal Provides Transmit, Receive Data at 100/200/400
Megabits per Second, and Link-Layer Controller Clock at 49.152 MHz
• Fully Interoperable with FireWire Implementation of IEEE Standard
• 1394
• Provides 6-Pin IEEE1394 Standard Connector*1
NOTE
The length of the cable for IEEE 1394 port must be less than 4.5m or the system will not
support it. The system supports 15W power for the cable.
