Assembly Section 2-6
ASSEMBLY
ADJUSTING REAR WHEELS
Follow the instructions in the tractor owners manual for adjusting tires and
rims.
The rear wheels MUST be adjusted to the widest setting. NOTE: This may
require switching the wheels to opposite sides of the tractor. Also take note of any width
restrictions when transporting by trailer. (For ease of installation, it is best to leave rear
wheels removed during installation of the mower).

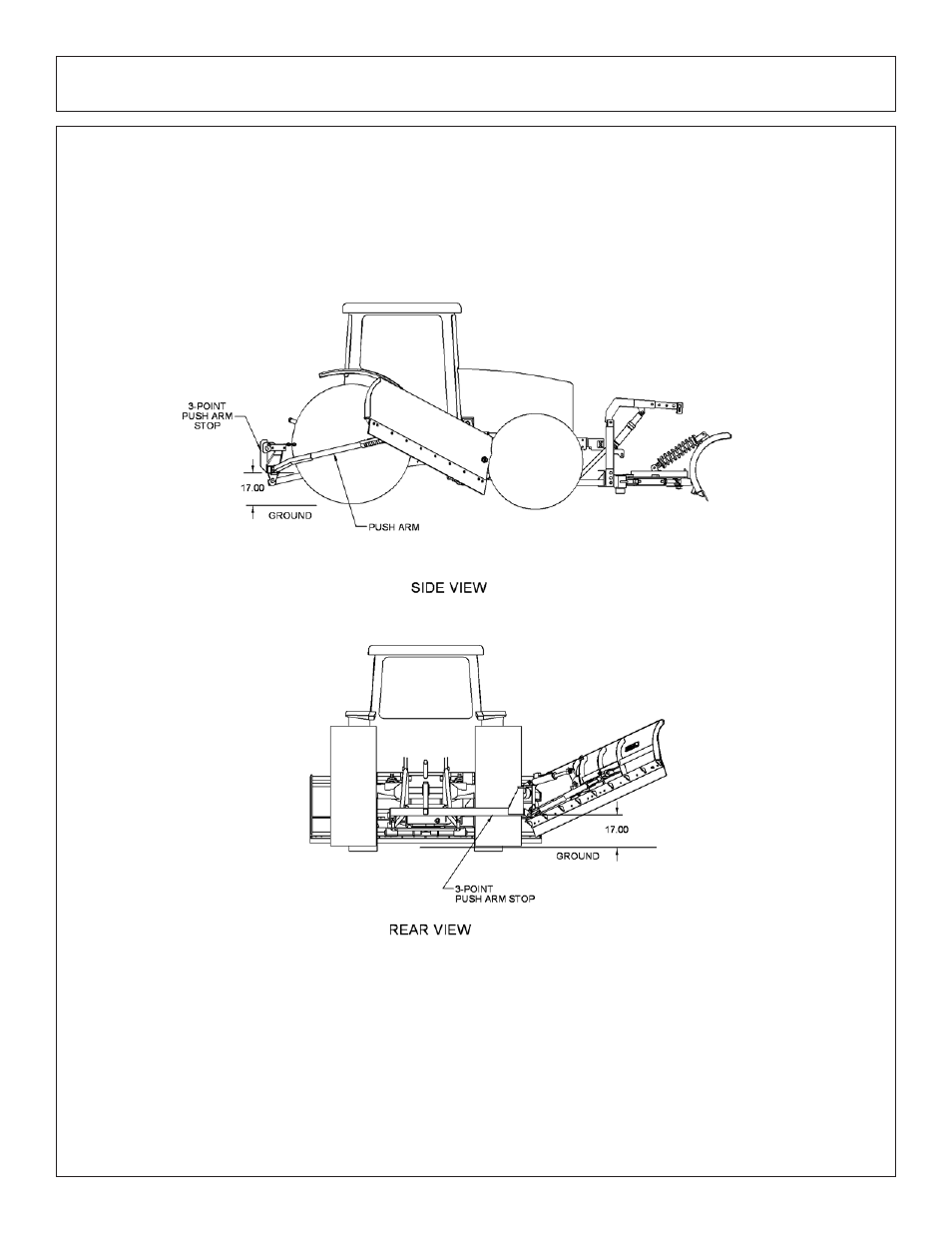

3-POINT PUSH ARM STOP MOUNTING
Install the Push Arm Stop onto the 3-point hitch using the pins as shown in the
parts illustration. Adjust the bottom arms so the Push Arm Stop is 17” to the ground
at the Pivot Boss. Adjust the top link so that the Push Arm Stop is approximately level
with the ground.
