28

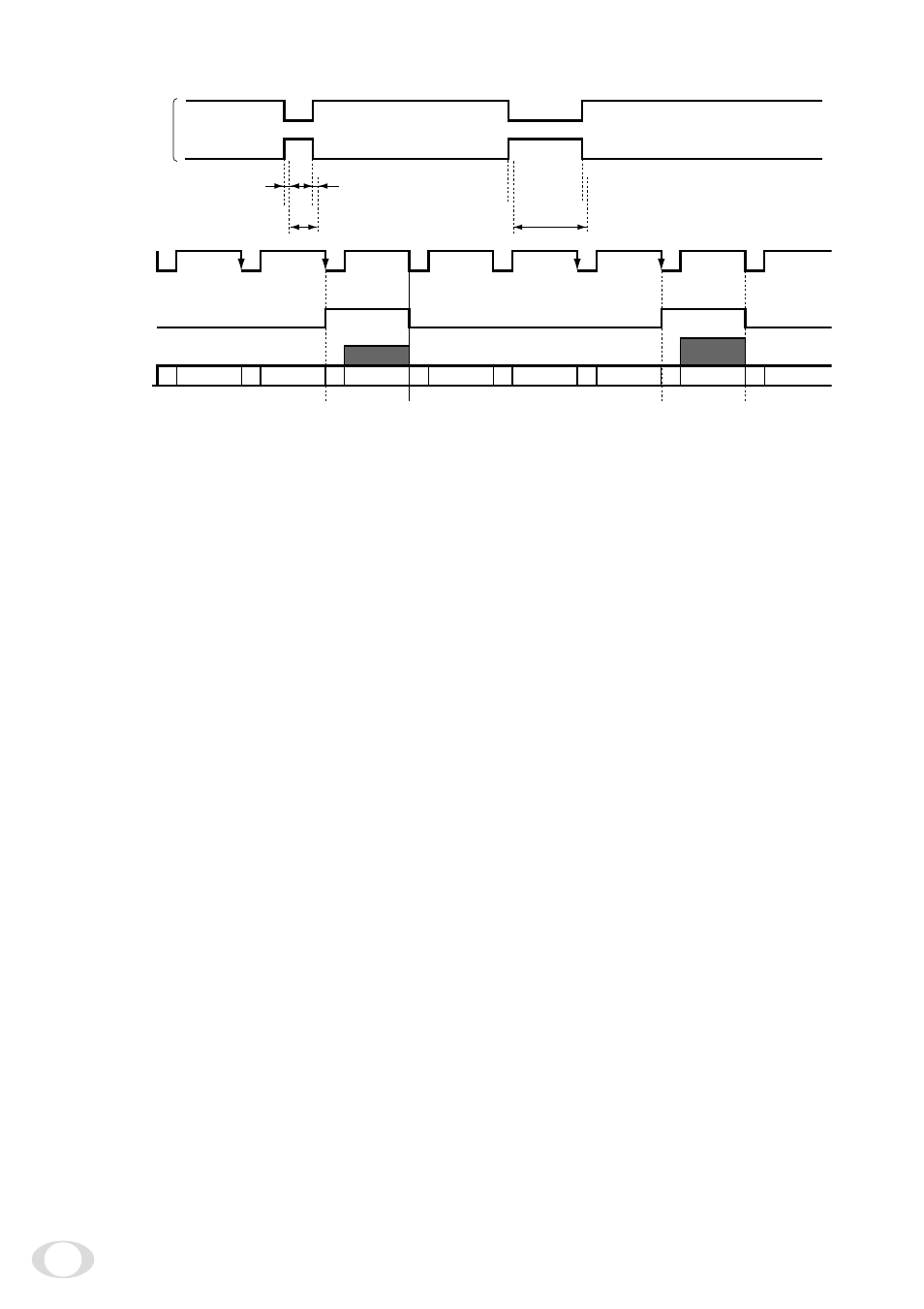

(3. 2) Pulse Width Trigger SYNC-NON RESET Picture Output Timing (at Time of Internal Sync)
*1: Externally input signal
*2: Exposure time = Trigger pulse width + 6 ms
(Valid trigger pulse width is 2 ms or greater for external trigger shutter operation.)
*3: As long as there is no external sync input, the internal VD will be output when the rear panel HD/VD signal
input/output switch is set to the INT side.
*4: Video is output at the falling edge of the internal VD following completion of the exposure period.
The video and the VIDEO INDEX have a paired relationship.
Note:
When the next trigger is input before completion of the output of the video corresponding to the trig-
ger, there will be an effect on the video.
About 1
µ
s
Exposure period* 2
Video output
525H (Partial scanning OFF)
175H (Partial scanning ON)
VIDEO INDEX
VD OUT* 3
Trigger* 1
Exposure period* 2
Negative polarity mode
Positive polarity mode
About 7
µ
s
