Tiger Products Co., Ltd M105X/S - Manual (Page 167)

Side Rotary Common Section 6 - 59

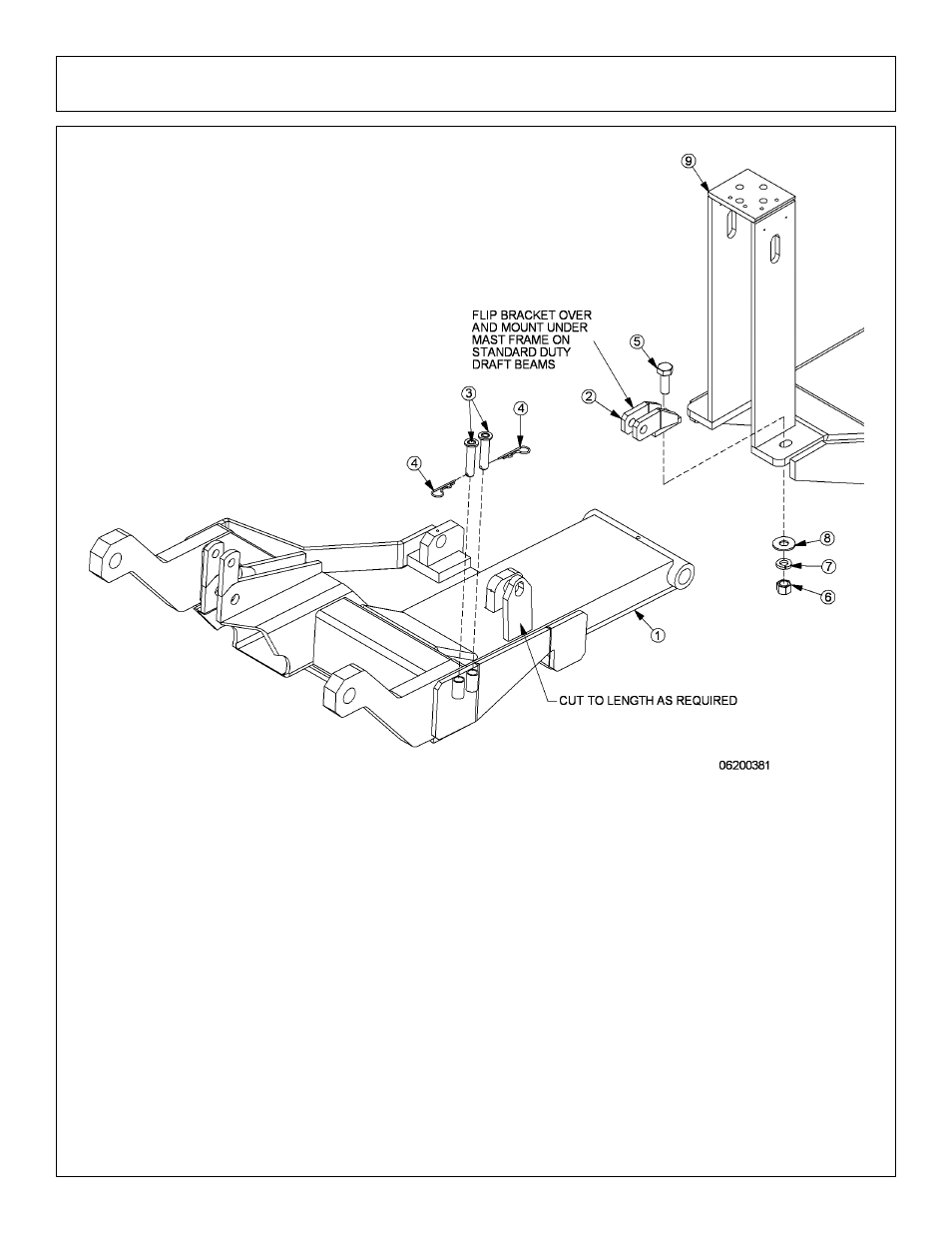

SIDE MOWER TRAVEL LOCK (COMBO)
ITEM PART NO. QTY. DESCRIPTION
1 REF * COMBO DRAFT BEAM- REFER TO DRAFT BEAM PARTS
2 6T0106 1 TRAVEL LOCK BRAKCET
3 6T0107 2 TRAVEL LOCK PIN (3/4” x 3-1/4”CAPPED)
4 6T3020 2 R-CLIP, 5/32”
5 21833 1 CAPSCREW, 3/4” x 2-1/4” NC
6 21825 1 HEX NUT, 3/4” NC
7 21993 1 LOCKWASHER, 3/4”
8 22021 1 FLAT WASHER, 3/4”
9 REF. * MAIN FRAME - REFER TO MAIN FRAME PARTS
