Side Rotary Common Section 6 - 34

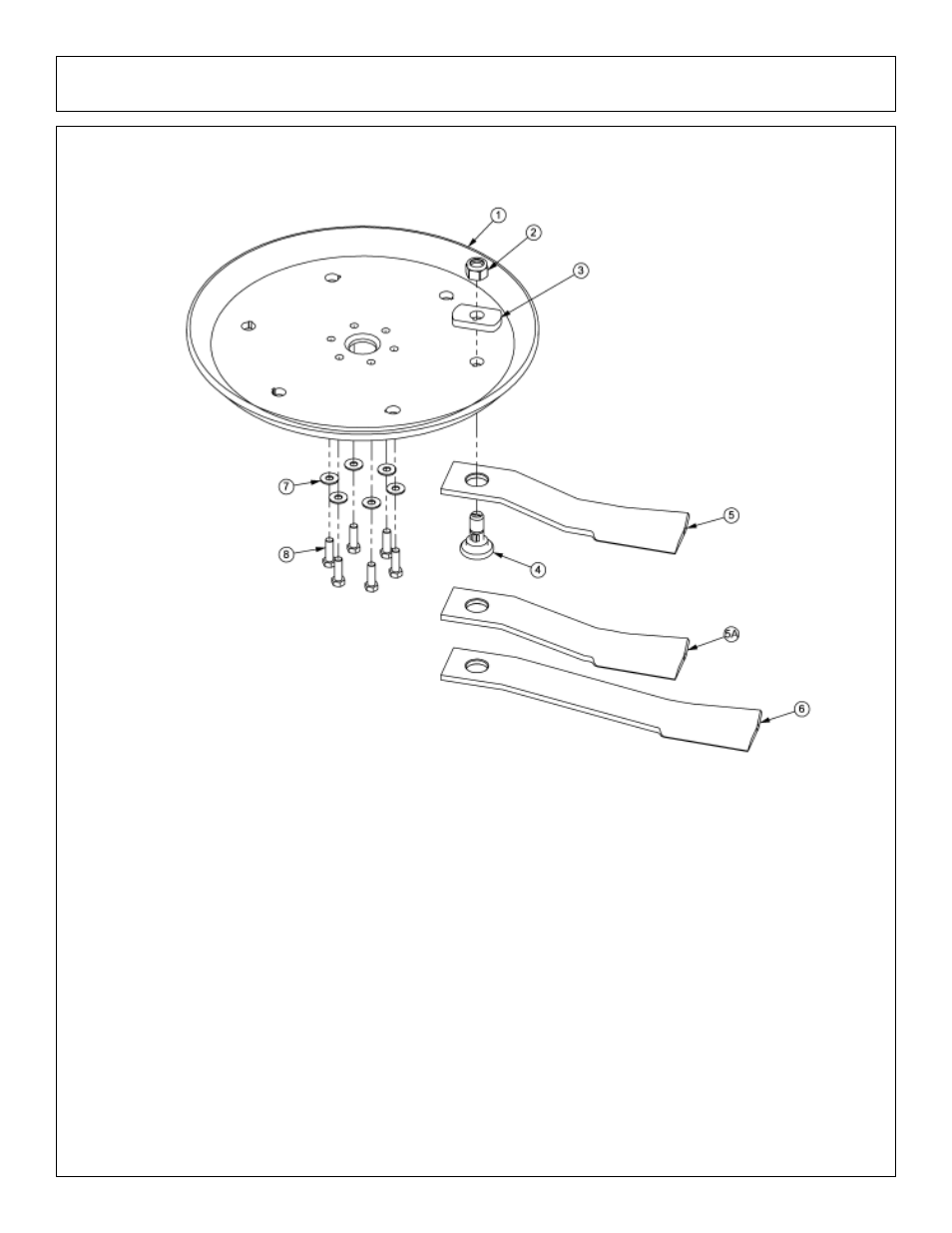

ROTARY KNIVES AND DISKS
ITEM PART NO. QTY. DESCRIPTION
1 34876 1 BLADE MOUNTING DISK
2 6T1023R 2 NYLOCK HEX NUT 1 1/8”
3 34878 2 SPACER
4 34497 2 KNIFE MOUNTING BOLT
5 34685 2 KNIFE,60" HIGH SUCTION - STANDARD
5A 34684 2 KNIFE,60" - OPTIONAL
6 34682 2 KNIFE 72” - MOUNT ON 72” MOWER ONLY
7 25270 6 FLATWASHER,5/8,USS,GR8
8 6T2290 6 CAPSCREW,5/8 x 2
* 6T1825 * LOCTITE - USED ON ALL DISK MOUNTING BOLTS
* 27167 AVAIL BOLT KIT (INCLUDE ITEMS 7 & 8)
* 06700002 AVAIL KIT,60/72,DISK,KNF MTG (INCLUDE ITEM 1, 3,7 & 8)
