DP-Series Precision Dipole Antennas
Mechanical Specifications
Dimensions: Dependent on operating
frequency; approx. one-
half wavelength
Weight: Varies by model
Construction: Available in aluminum,
stainless steel or brass
RF Connector: SMA (female)
Electrical Specifications
Gain: See data graph
Impedance 50 Ω
Ordering Information
Product: Dipole Antenna
Model Number: DP-Series
Warranty: 1 year limited
To place an order or to learn more about the
TDK products that best meet your needs, con-
tact your TDK sales representative:
TDK RF Solutions Inc.
1101 Cypress Creek Rd.
Cedar Park, Texas 78613 USA
Phone: 1-512-258-9478
Fax: 1-512-258-0740
E-mail:
[email protected]
World Wide Web: www.tdkrfsolutions.com
Rev. 2011-08-02
Communications Applications, continued
ISM (Bluetooth) 2400 – 2483.5 MHz DP2400
Japan - Low Band 898 MHz – 901 MHz DP-900-J1
915 MHz – 940 MHz DP-900-J2
940 MHz – 960 MHz DP-900-J3
Japan - High Band 1429 MHz – 1453 MHz DP-1400

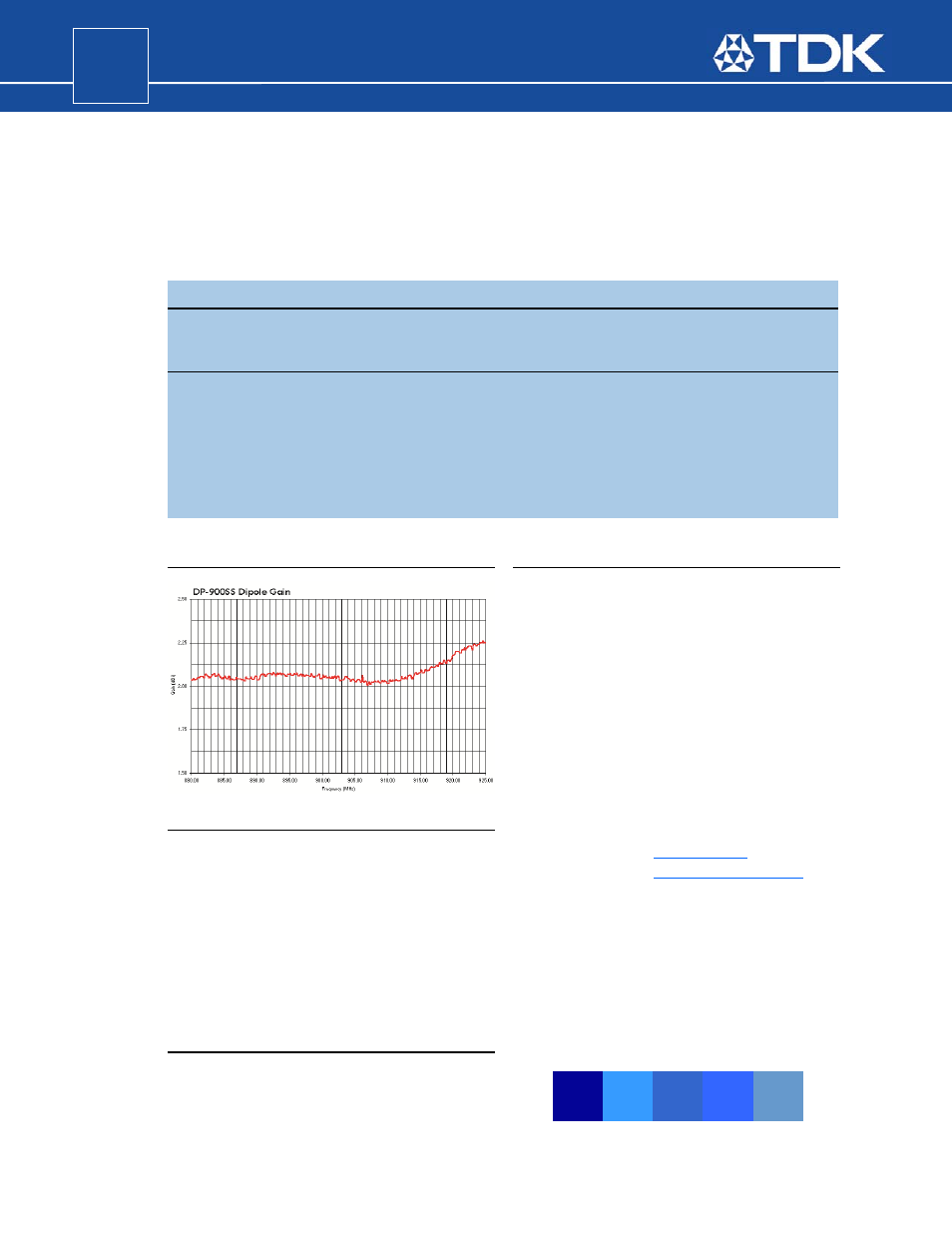

Representative Data
