4 4

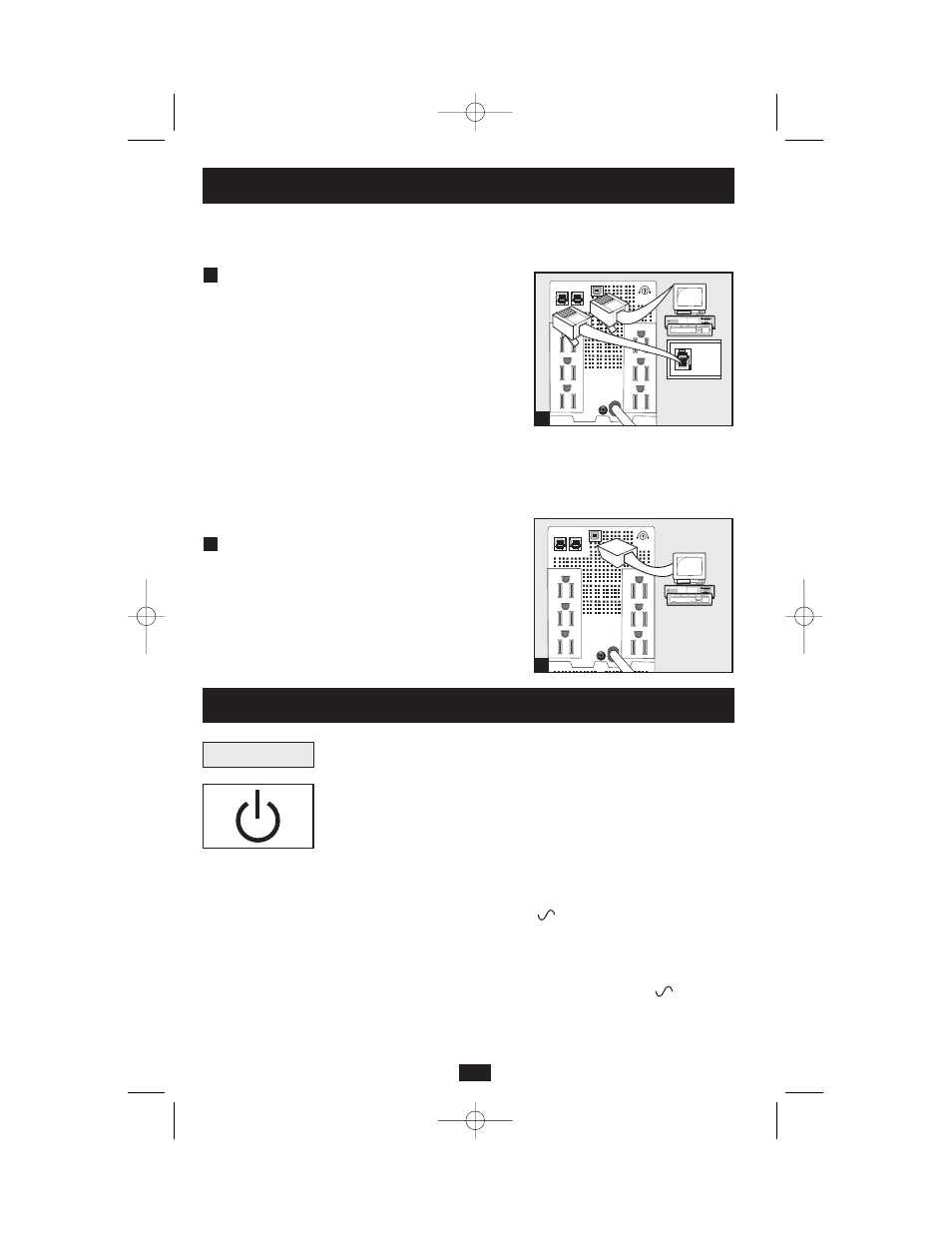

These connections are optional. Your UPS will func-
tion properly without these connections.
Phone Line/Network Line Surge
Suppression
Your UPS can protect your equipment against
surges over a phone line. Select models have RJ45
jacks that can also be used to protect against surges
over a network data line (see Specifications).
Using telephone cords or network data cables as
appropriate, connect your wall jack to the UPS
jack marked “IN”. Connect your equipment to the
UPS jack marked “OUT”. Make sure the equip-
ment you connect to the UPS’s jacks is also pro-
tected against surges on the AC line.
Your UPS can protect up to 2 telephone lines trav-
elling over the same telephone cord.
USB Communications
(Select Models Only)
Use any USB cable to connect the USB port of
your computer to the USB port of your UPS.
Download the PowerAlert UPS monitoring software
program appropriate for your operating system
from www.tripplite.com and install it on your
computer.
2
1
Quick Installation
optional
NORM DELAY
1
NORM DELAY
2
Basic Operation
Buttons Use the ON/OFF button to do three things:
Switch your UPS’s Operating Mode: While your UPS is plugged
into a live AC outlet, press the ON/OFF button and hold it until you
hear a beep (about 2 seconds) to toggle between the following
operating modes. Choose your UPS’s operating mode based on the
regional guidelines in Step 3 of the Quick Installation section.
• UPS Mode: ENABLES battery backup. UPS Conditions: The UPS
charges its battery and supplies power at its receptacles when it is
receiving utility line power. If utility power fails, the UPS provides
power from its batteries. The “
” indicator light is lit. Setting
Advantages: Provides battery backup during blackouts or brownouts.
• CHARGE ONLY Mode: DISABLES battery backup. UPS
Conditions: The UPS charges its battery and supplies power at its
receptacles when it is receiving utility line power. The “
” indicator
light is flashing. Setting Advantages: Continues to charge the battery
when power is present while turning OFF the inverter to prevent
battery depletion during power outages when equipment is not in use.
