Applications:
Home studios/composition
Project studios, users of PC/MAC
DAW’s
Professional recording, broadcast,
post production studios & editing suites

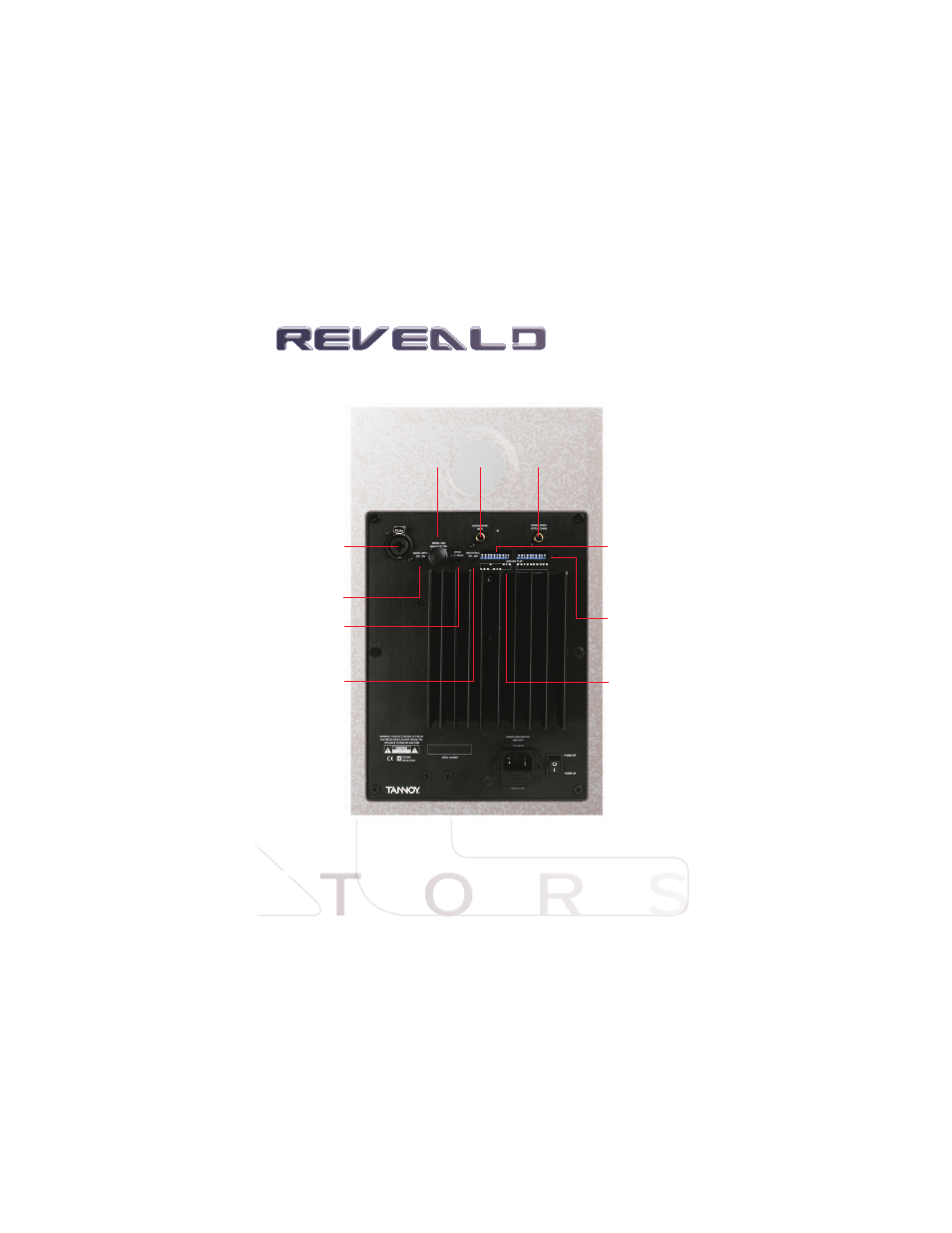

DIP switch ‘flat’
setting shown on
the back
panel artwork
RCA
input for SPDIF with
75 Ohm terminating impedance 2nd RCA
for SPDIF output
for slaving a stereo pair
10 Activ-Assist™
DIP switches control
LF alignment -
mid/near/close field
& half/quarter/eighth
space compensation
Trim/Gain control (on SPDIF input - post DAC) over -10dB /- 4dBu range. Ref: 0dBu (0.775V) input for full rated output
XLR / 1 / 2 ”
jack combination
connector for
balanced input
Digital input
on / off
3-way switch
(post 2 channel DAC)
selects SPDIF stream
channel to be decoded
- Left/Right/Mono
Switch selection of
12dB/8ve 80Hz high
pass filter for use with
AV subwoofers
10 Activ-Assist™
DIP switches
control mid band
and HF shelving trim
SPEC NOTES : (1) +/- 3 dB, measured at 1m in an anechoic chamber.
(2) Peak SPL at mix position for 1 pair driven
(3) Average over specified bandwidth for half space environment
