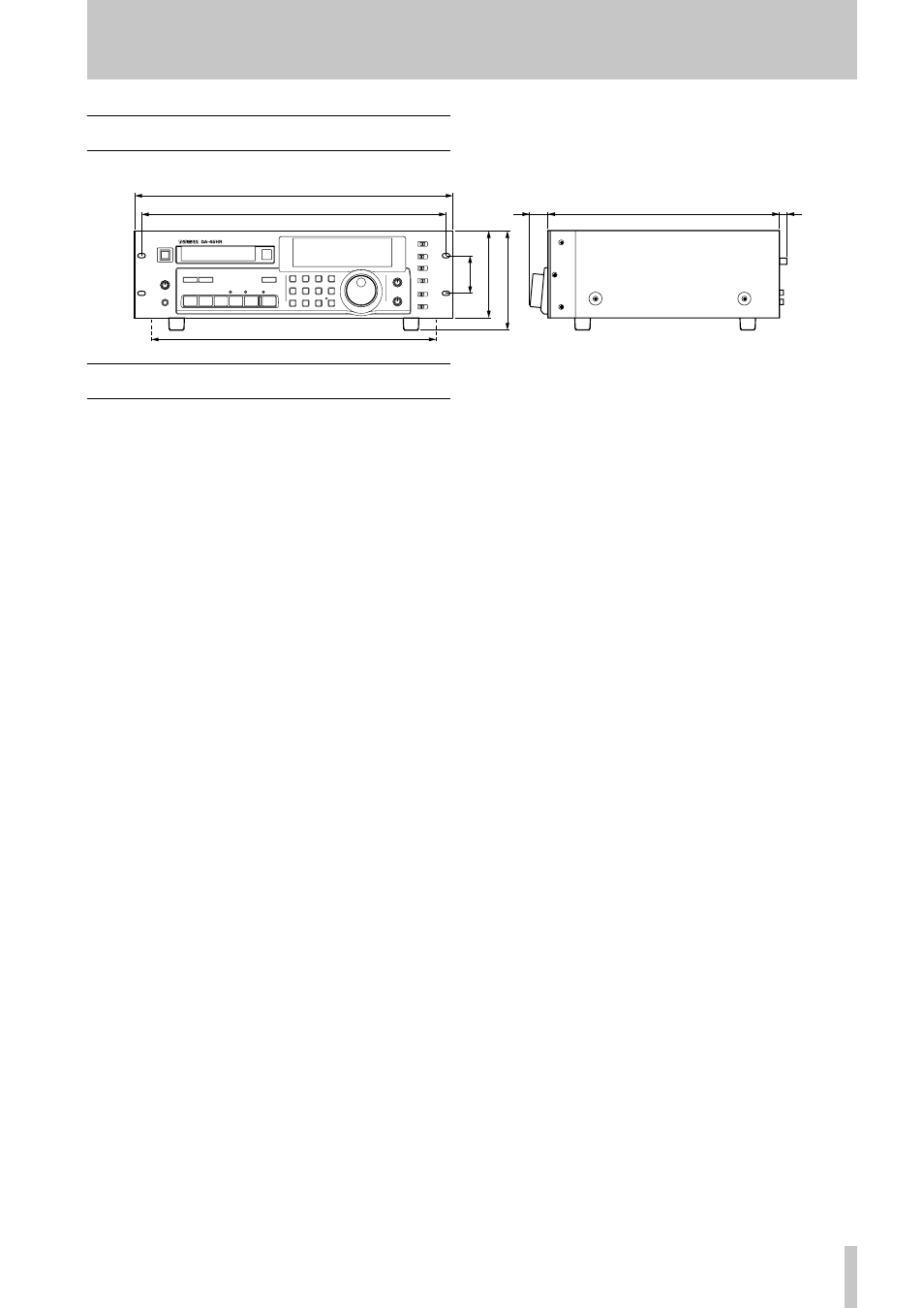

6.4 Dimensional drawing
6.5 Error messages
There are two types of error message: warning (informa-
tional) and more serious messages.
6.5.1 Warning messages
These simply give an indication of a situation which is
easily resolved:
CLKINX —An attempt is being made to record digi-
tally, with the CLOCK switch set to INT . Set the
CLOCK switch to the appropriate setting ( D-IN or
WORD )
AES/EBU X —The digital audio signal received at
the AES/EBU input has been selected as an input
source, but has become unsynchronized or is not present.
COAXIAL X —The digital audio signal received at
the COAXIAL unbalanced input has been selected as an
input source, but has become unsynchronized or is not
present.
AES/EBU ? —The digital audio signal received at
the AES/EBU balanced input is more than 0.1% outside
the standard sampling frequency and cannot be recorded
(though it can be monitored).
COAXIAL ? —The digital audio signal received at
the COAXIAL unbalanced input is more than 0.1% out-
side the standard sampling frequency and cannot be
recorded (though it can be monitored).
Tape Top & Tape End —The tape is at the
start or end, and an attempt has been made to move past
this point
End-ID —The presence of the END ID prevents the
attempted operation
A/D Error —The RECORD key has been
pressed and the analog input levels are too high for a
recording to be made successfully. Press the
STOP key,
lower the analog input level, and press the RECORD
key again.
RecProtect —The cassette’s sliding write-pro-
tect tab is in the write-protect position.
TapeMode HR , TapeMode NOR , —
An attempt is being made to record on a tape which has
previously been recorded using an incompatible mode
(HR or normal)
Tape Fs32k , Tape Fs32kLP —A tape
recorded at 32k or with the LP mode cannot be played
back using the DA-45HR
6.5.2 Serious error messages
Any of the following error messages indicates a serious
error, which you should never see in normal operation. If
any of these appears, first try any countermeasures listed
here. If the message does not disappear after trying the
countermeasure, you should contact your TASCAM dis-
tributor for testing and repair of your tape deck.
DSP Com. Err.
Mecha. Com. Er.
Loading Err —Eject the tape, power down the
tape deck, power it up again, and reinsert the tape as
described in 1.4, "About DAT cassettes". If this fails, con-
tact your TASCAM dealer.
Drum Error —Condensation may have occurred
on the head drum. Remove the cassette, and leave the
tape deck switched on for one or two hours. See the
warning note in 1.3, "Installation of the tape deck"
Capstan Error
SVMemo.RDE
SVMemo.WRE
Tape Cut! —The tape has broken. You may be
able to remove the damaged cassette, but this is usually
best left to a qualified service technician, as the tape may
be wound in a complex path around delicate mechanical
parts of the tape deck.
Memo.Data Er —The memorized menu set-
tings (3.17, "Parameter save") are no longer stored in
memory. Try re-making these settings. If the problem
persists, contact your TASCAM dealer.
482mm
432mm
57mm 132mm
150.5mm
456mm 330mm 27mm 11mm
