INSTALLATION (Connection)
11
INSTALLATION (Connection)
z
First, connect both the satellite antenna and the TV to the STB.
z
There are some of the most common ways to connect the equipment in this manual.
z
There are several ways of connecting the STB to the existing Audio/TV system.
z
We recommend one of the following setup.
z
If you have problems with your connections and need help, contact your dealer or
service provider.

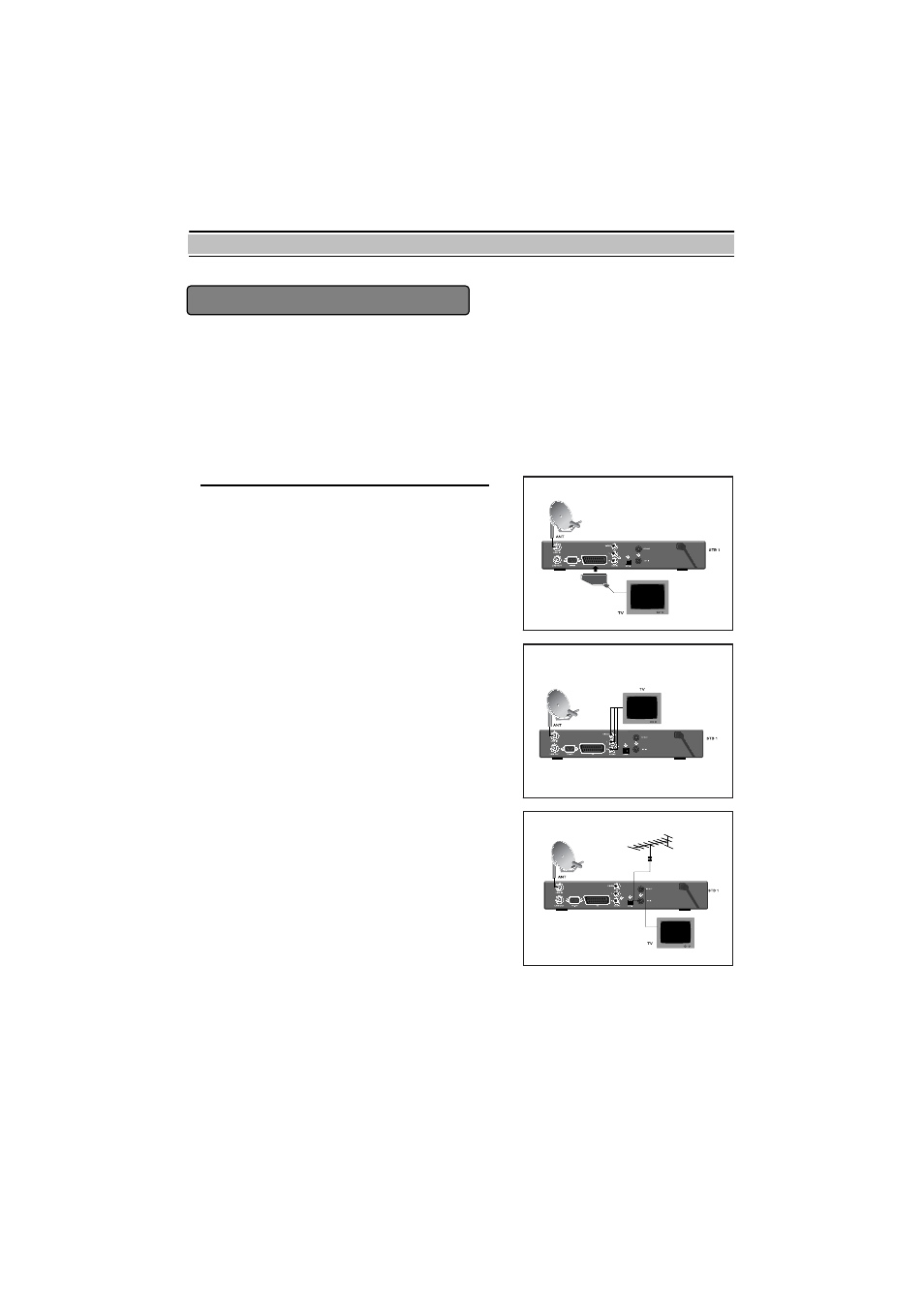

Connection to TV, VCR and Hi-Fi
1) Connection to the TV with the SCART Cable.
Connect one end of the SCART cable to the TV
SCART socket on the STB and the other end to a
SCART socket on the TV.
2) Connection to the TV with the CINCH Cable.
Connect one end (3 connectors) of the CINCH
cable to the AUDIO-RIGHT (red), AUDIO-LEFT
(white) and the VIDEO output (yellow) socket on
the STB. Connect the other end (3 connectors) to
the AUDIO-RIGHT (red), AUDIO-LEFT(white)
and the VIDEO input (yellow) socket on the TV or
Hi-Fi.
3) Connection to the TV using the RF cable.
Connect a terrestrial antenna to RF IN socket on
the STB.
Connect one end of the RF cable to the RF OUT
socket on the STB.
Connect the other end to the ANT IN socket on
the TV.
