Page 23

Phonecell Operation - continued

Phonecell SX4D Controls

Front Panel

All controls for the Phonecell SX4D are located on the
front panel - see Figure 16. Pressing any of the front
panel controls will cause the unit to beep for approxi-
mately 100 milliseconds when the key is depressed.

Keypad
The keypad includes all digits 0 through 9 and special
characters hash (#) and star (*). All data entry and pro-
gramming activities are performed using the keypad.

Flash

The flash key is used to produce a hookflash.

See the Hookflash Function section of this manual.

Redial

The redial key redials the last dialed phone

number.

Up/Down Keys

When off-hook, the Up/Down keys control the
volume of the earpiece in the handset. The avail-
able range is ±12 dB of the nominal earpiece

output level. Each adjustment increment is 6 dB. The
volume setting persists until changed by the user, or
the volume setting is returned to nominal by resetting
the Phonecell (power Off/On).

Voicemail Retrieval

The Voicemail Retrieval key causes the

Phonecell SX4D to dial a programmable DTMF

digit string, allowing the user to retrieve voicemail mes-
sages. To program the voicemail retrieval number, see
the Programming Commands section of this manual.

NOTE: The Voicemail Retrieval feature is dependent
upon network availability.

Back Panel

AC/Battery Switch
The AC/Battery switch allows the user to switch
between external power (wall cube) and internal
(emergency) battery - see Figure 17.

NOTE: When the setting of the AC/Battery switch is
changed, the Phonecell SX4D resets itself prior to
resuming normal operation - see the Phonecell SX4D
Power Mode section of this manual.

SX4D GSM 900 • SX4D GSM 1800

SER

ANUAL

IMPORTANT!

The AC/Battery switch should be left in the AC position unless the user needs

to make a call using the emergency batteries (the batteries provide a useful

call time of about 10 minutes before replacement is required).

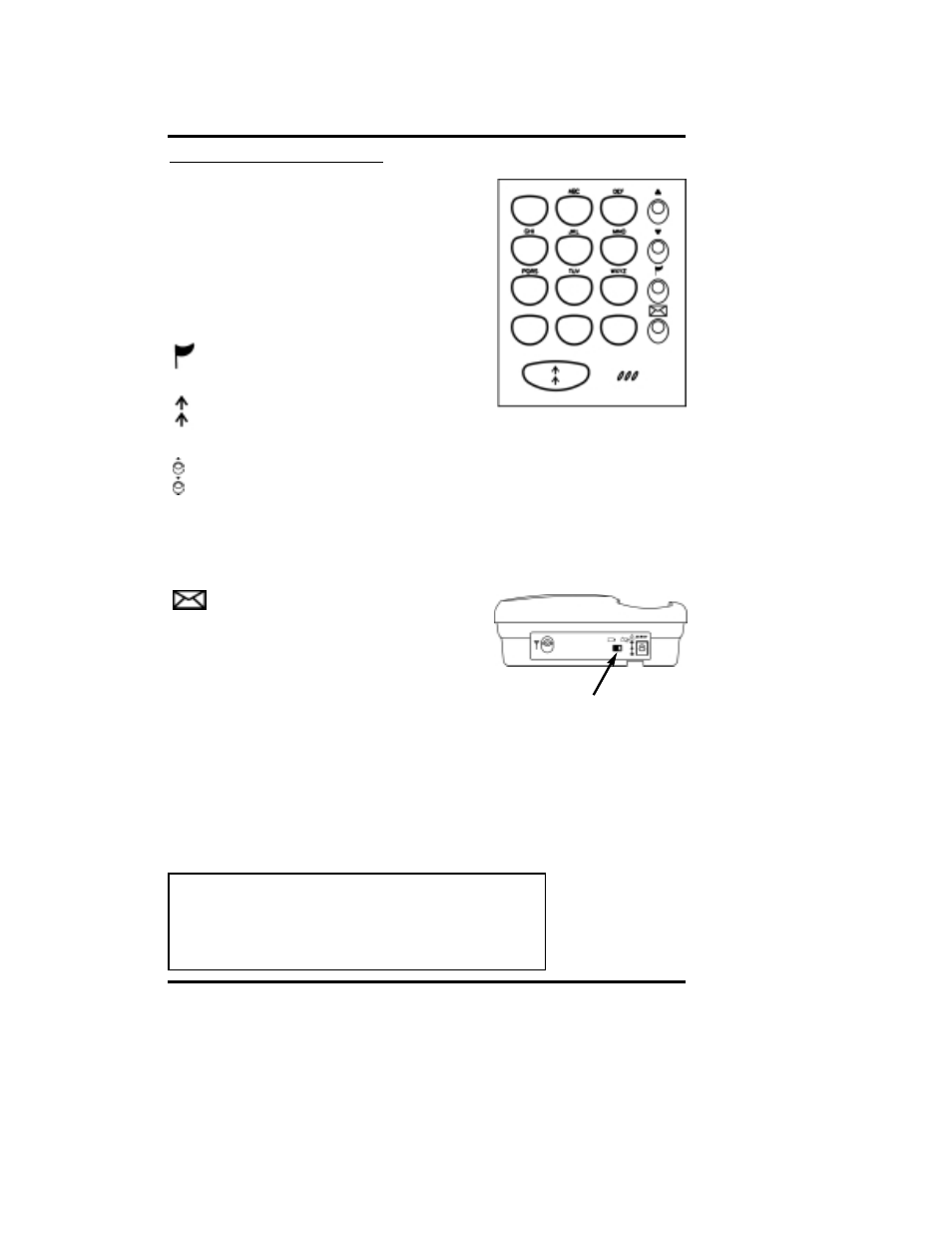

Figure 16 –

Phonecell SX4D

front panel.

Figure 17 –

Phonecell SX4D

back panel.

AC/Battery
Switch
