Toshiba Qosmio Personal Computer X500 - Manual (Page 212)

Replacement Procedures
Installing the System Board
The following describes the procedure for installing the system board.
1. Secure the system board with the following screws.
M2.5 6.5 screw x3
2. Secure the fan with the following screws.
M2.5 6.5 screw x2
3. Connect the speaker cable, LCD CABLE, WIRELESS ANTENNA, CRT cable,
USB cable, FM CABLE, MDC CABLE, and TV-F ANTENNA to the connector
on the system board.
4. Connect the power cable to the connector on the system board
Installing RTC battery
The following describes the procedure for installing the RTC battery unit
(See Figure 4-18-5).
1. Press the force vertically then lock the RTC battery tightly.

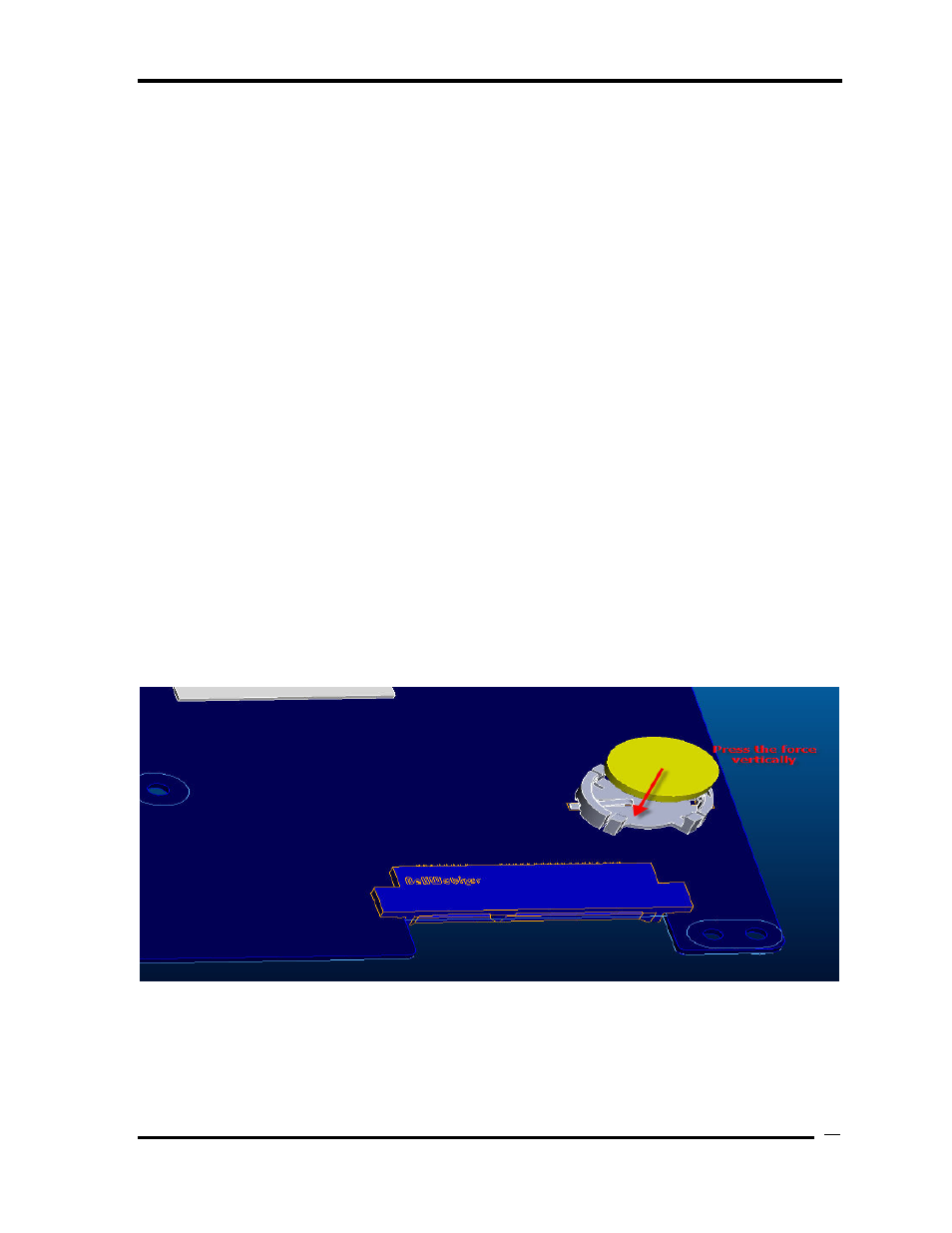

Figure 4-18-5 Install the RTC battery
Qosmio X500 Maintenance Manual (960-Q08)
53
