To contact Oki Data Americas, Inc.
In USA: 2000 Bishops Gate Blvd.
Mount Laurel, NJ 08054-4620
Tel: 800.OKI.DATA (800.654.3282)
Fax: 856.222.5320
In Canada: 2735 Matheson Blvd. East
Mississauga, Ontario L4W 4M8
Tel: 905.238.4250
Fax: 905.238.4421
In Latin America and Mexico:
2000 Bishops Gate Blvd.
Mount Laurel, NJ 08054-4620
Tel: 856.231.0002
Fax: 856.222.5071
www.okidata.com 800.OKI.DATA
Printed in the USA. MS9361/0904pdf
For more information on OKI Impact Printers and
supplies, including OKIcare ® Extended Service Programs:
1-800-OKI-DATA (800-654-3282). 2
1 Factory-configured only.
2 Available in U.S. and Canada only.
3 Has earned the ENERGY STAR.
All specifications subject to change without notice.
© 2004 Oki Data Americas, Inc. OKI, MICROLINE, Tank-Tough, OkiLAN
Reg. T.M., Oki Electric Industry Co., Ltd. Command Performance, 7-Day/
24-Hour logo T.M., Oki Data Americas, Inc. Epson Reg. T.M., Seiko Epson
Corp. UNIX Reg. T.M., SCO. IBM Reg. T.M., International Business Machines,
Inc. Centronics Reg. T.M., Centronics Data Computer Corp. Microsoft,
Windows, Windows NT Reg. T.M., Microsoft Corp. Swiss, T.M. Bitstream Inc.
PostNet Reg. T.M., USPS. ENERGY STAR Reg. T.M., U.S. EPA.
Ordering Information (Part Number)
Printers
1 0 9 1 1 4 2 6 V 0 2 1 – T 0 9 3 E N I L O R C I M
MICROLINE 390T – 230/240V
62411902
MICROLINE 390T/n – 120V 62415901
1 0 0 2 1 4 2 6 V 3 0 2 1 – T 1 9 3 E N I L O R C I M
MICROLINE 391T – 230/240V
3 62412002
MICROLINE 391T/n – 120V 3 62416001
Accessories
Top-Mount Pull Tractor Kit w/acoustic cover:
1 0 5 0 3 0 0 7 T 0 9 3 L M
1 0 6 0 3 0 0 7 T 1 9 3 L M
Bottom Push Tractor Kit:
1 0 7 0 3 0 0 7 T 0 9 3 L M
1 0 8 0 3 0 0 7 T 1 9 3 L M
1 0 1 0 3 0 0 7 r e d e e F t e e h S t u C
Roll Paper Stand (ML390 only)
70023301
RS-232C Serial Interface (19.2K baud max.) 70012801
OkiLAN ® 6020e 10/100 Base-T Ethernet
1 0 0 6 3 0 0 7 r e v r e S t n ir P l a n r e t x E
OkiLAN
® 6010e 10 Base-T Ethernet
1 0 4 4 3 0 0 7 r e v r e S t n ir P l a n r e t x E
Self-inking Ribbon Cartridge
52104001
1 0 2 7 4 0 0 7 r e t p a d A x a - o C
Twin-ax/Co-ax (Also available through Third Party.
Call 1-800-OKI-DATA.)
OKIcare ® Overnight Exchange Warranty
Extensions 2
U.S. Canada
OKI SIDM Desktop 1-Yr. Warranty Ext. 58251901 58251911
OKI SIDM Desktop 2-Yr. Warranty Ext. 58252001 58252011
OKIcare ® Depot Warranty Extensions 2
U.S. Canada
OKI SIDM Desktop 1-Yr. Warranty Ext. 58251001 58251011
OKI SIDM Desktop 2-Yr. Warranty Ext. 58251101 58251111
Desktop Upgrade to Overnight Exchange 58251801 58251811
Turn Your Documents Into Winners.
The ML390/391 Turbo is a dedicated forms printer
that also turns out professional-looking presentations,
proposals and correspondence.
With three scalable fonts, you can express yourself in
8- to 64-point type. And you can be confident that
your mailing envelopes will be equally presentable—
and scannable—when you select any of the eight
resident bar code fonts, including PostNet
® . The
printer’s 24-pin printhead design will keep your print
images—text and graphics—sharply defined over its
200-million character life.
In addition to superior-looking output, you want a
printer that won’t waste a sheet of paper or a single
form. The ML390/391 Turbo has an auto-tear feature
that accurately positions continuous forms for a clean
tear at the perforation—eliminating wasted forms.
You’ll also look good in any environment: the
ML390/391 Turbo supports Windows
® 95 and 98,
Windows ® 3.x, Windows NT ® 4.0, UNIX ® and Novell ®
NetWare ® , so it’s compatible with virtually all custom
and off-the-shelf software.
Drive your office productivity further, with the printer
that performs and handles like a champion and
delivers output that makes you feel like a winner, too.
The ML390/391 Turbo from OKI.
OKI ® MICROLINE ® 390/391Turbo
24-Pin Impact Printers
Specifications
Technology, Speed and Print Characteristics
• Printhead: 24-Pin SIDM
• Graphics Resolution: 360(H) x 360(V) dpi max.
Epson ® / IBM ® AGM
Feed Rate: 5.0 ips
Print Speed / Character Matrix:
Mode:
LQ Utility SSD
Speed (cps @ 12 cpi): 105 315 390 (15 cpi)
Emulation, Interface and Memory
• Emulation: Epson ® ESC/P2, IBM ® PPR and IBM ® AGM
• Interface: Standard: Centronics ® , IEEE 1284 parallel and USB;
Optional: RS-232C Serial and OkiLAN ® 6120e 10/100 Base-T
Internal Print Server std. on ML390T/n and ML391T/n 1 ;
Ethernet via OkiLAN ® 6020e 10/100 Base-T External Print
Server; Co-ax Adapter or Twin-ax/Co-ax (3rd party)
• Memory: Total RAM: 64K; Receive Buffer: 23K
Compatibility
• Operating Systems: Windows 3.x, Windows 95 (Plug and
Play compatible), Windows NT 4.0; support for UNIX and
Novell Netware
Fonts/Characters
• Resident: Courier, Gothic, Orator, Prestige, Roman and
Swiss ™ /Bold; Utility – Gothic
• Scalable: Courier, Roman, Swiss (8 – 64 pt. in 1-pt.
increments)
• Barcodes: Code 39, UPC A, UPC E, EAN 8, EAN 13,
Interleaved 2 of 5, Code 128 (A, B, C), and PostNet ™
Latin American Character Sets: BRASCII, ABICOMP
Paper Handling
• Paper Input: Single/Multi-Part, Continuous, Cut Sheet,
Envelopes, Card Stock, Labels
• Number of Copies: Interleaf or Carbonless = 4
• Thickness: Rear Feed: 0.017" (0.43mm);
Bottom Feed: 0.031" (0.79mm)
• Paper Feeding: Top/Rear/Bottom
• Standard Tractor: Rear Push with Zero-tear and paper park
• Options: Top-Mount Pull Tractor, Bottom Push Tractor, Cut Sheet
Feeder (single bin), Roll Paper Stand
Warranty and Reliability
• Warranty: 1-year parts/labor/printhead; 2- and 3-year options
• MTBF: 10,000 Hours (25% duty cycle/35% page density)
• Monthly Workload:
ML390T: 18,000 pages at 25% duty cycle/35% density
ML391T: 12,000 pages at 25% duty cycle/35% density
• Printhead Life: 200 Million characters at 25% duty cycle
• Ribbon Life: 4 million characters
Environmental
• Size (W x D x H):
ML390T: 15.7" x 13.6" x 4.6" (39.9 cm x 34.5 cm x 11.7 cm)
ML391T: 21.7" x 13.6" x 4.6" (55.0 cm x 34.5 cm x 11.7 cm)
• Net Weight:
ML390T: 15.0 lb. (6.8 kg); ML391T: 19.2 lb. (8.7 kg)
• Acoustic Noise: 54 dBA LQ mode; 56 dBA Utility mode;
50 dBA Quiet mode
• Power Consumption: 100W (max.) operating
• Electrical: 120V, 230/240V
• Operating Temp: 41° F to 104° F (5° C to 40° C);
20% to 80% relative humidity

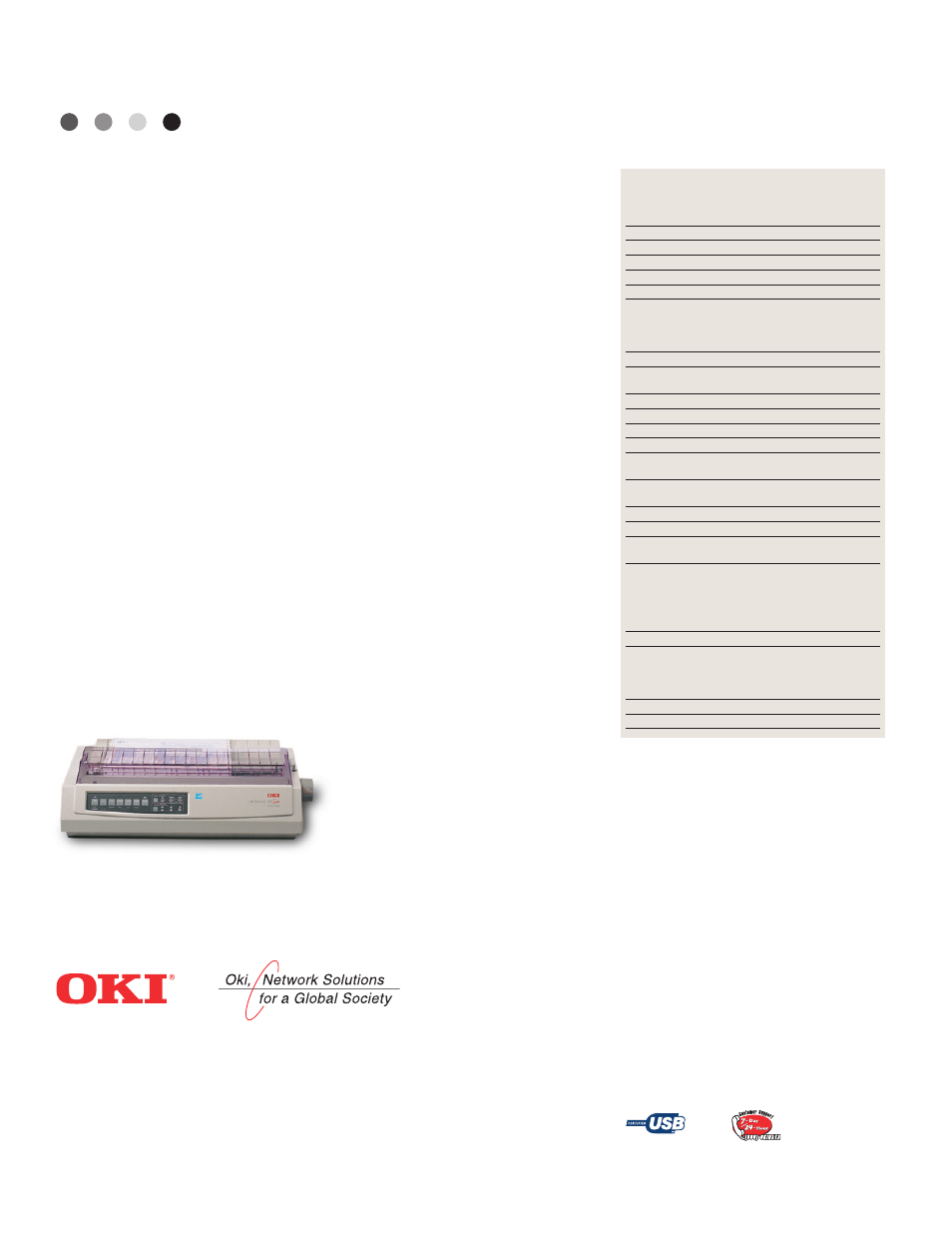

Wide-carriage MICROLINE 391 Turbo
