42
Connecting the AV receiver
—Continued

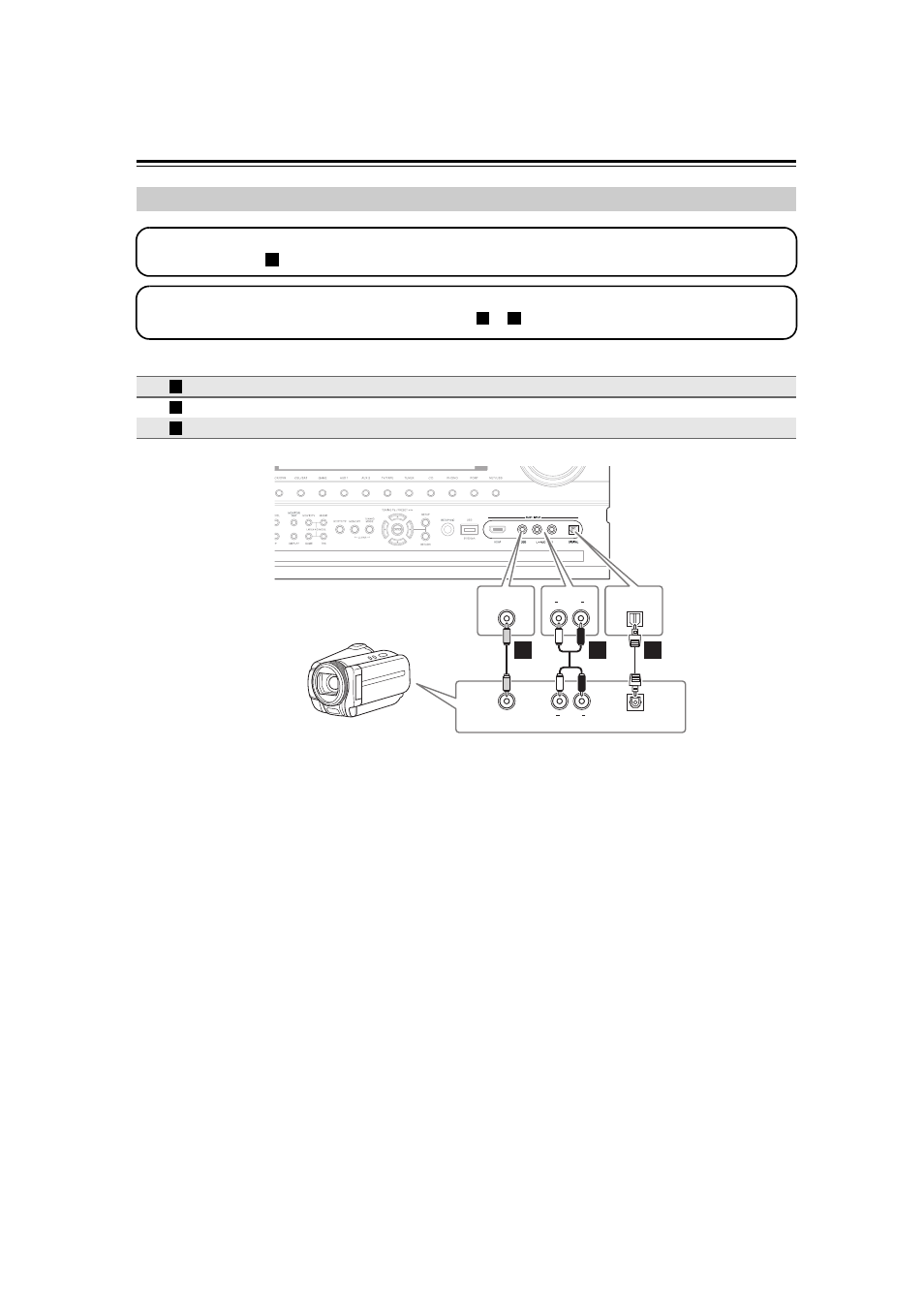

Connecting a Camcorder or Other Device
Connection AV receiver Signal flow Camcorder etc.
AUX1 INPUT VIDEO
⇐
Composite video output
AUX1 INPUT L-AUDIO-R
⇐
Analog audio L/R output
AUX1 INPUT DIGITAL
⇐
Digital optical output
Step 1: Video Connection
Make the connection
. A
Step 2: Audio Connection
Choose an audio connection that matches your camcorder (
or ), and then make the connection. a b
A
a
b
AUDIO
OUT
VIDEO
OUT
L R
VIDEO AUDIO L R
AUX1 INPUT AUX1 INPUT
OPTICAL
OUT
DIGITAL
AUX1 INPUT
A b a
Camcorder etc.
